ARC Rugged HMI Turnkey Solution | Intelligent Manufacturing with iFACE Designer Software

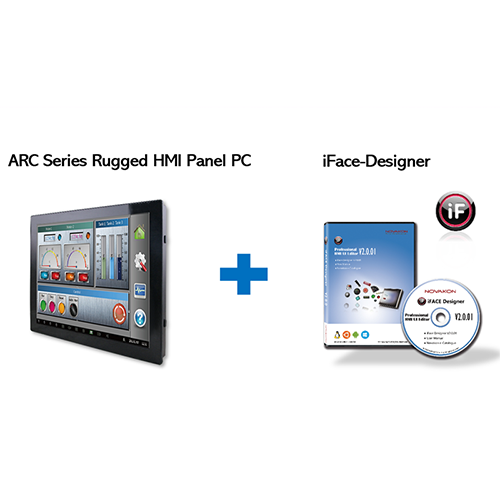

For "Intelligent Manufacturing", Avalue integrate ARC Series Rugged HMI Panel PC and iFace-Designer as HMI turnkey solution.

The iFace Designer, a“Object-Oriented” visualization HMI package software, using a “Tag system” to connect HMI on the Panel PC with PLC (Programmable Logic Controller), inverter, gateway, controller, sensor,…etc. on the Panel PC.

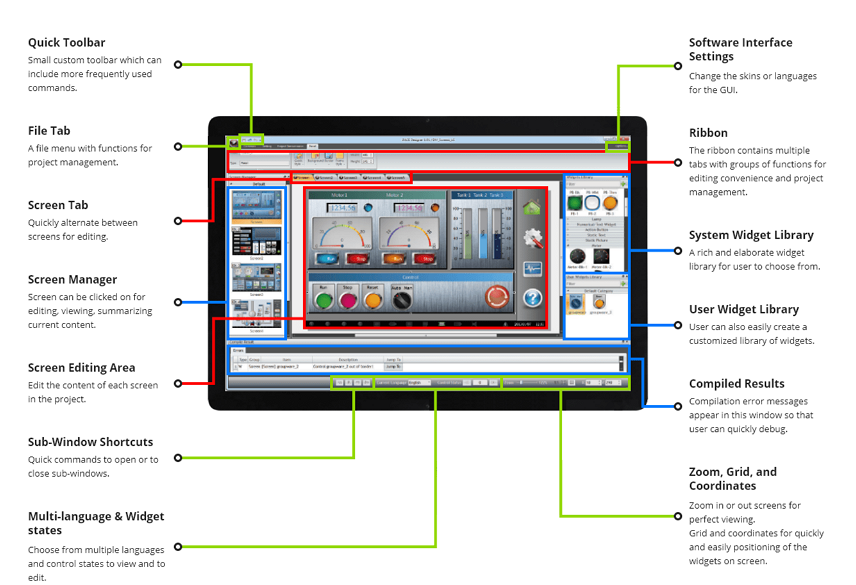

It is a cross-platform package software, which is a program editor to be installed on PCs or Laptops running Windows 7 or 10 Operating system, user can easily drag and drop all the GUI widgets from the built-in widget library to the canvas to design and configure their screens. It’s intuitive, user-friendly, versatile and powerful; after the development, user can simulate the result or compile the file directly into an application program to install and run on the selected hardware platform.

The two major function elements of iFace Designer, includes a built-in vector graphic widget library, which contains the most-commonly used widgets such as push buttons, switches, lamps, meters, bars, etc. And the wide-coverage of Physical PLC Driver, as well as Codesys software PLC driver database, which contains more than 90% of mainstream PLC brands and standard protocols in the industry.

The diversified smart functions can fulfill all kinds of use case scenarios in automation, instrumentation, supervisory, and IIoT. Except for widgets and charts for visualization, other functions are also embedded such as datalogger, Alarm and Trigger services, Scheduler and Recipe, Reports, even a scripting language for calculation and logic programing, called macro. Security setting is useful for data and operation protection. For remote monitoring and maintenance, it supports VNC, VPN, FTP, and various IIoT protocols, like MQTT, RESTful API, OPC UA to push data to clouds or database. With this built-in functions and tools, iFace designer can significantly shorten the time for project development and deployments.

• ARC Rugged Human Machine Interface with iFACE Designer software

• Onboard Intel Bay trail/ Apollo Lake/ SkyLake-U/ KabyLake-U

• Full Flat Front Panel with Projected Capacitive Touch Supports Multi Touch

• Intel Bay trail/ Apollo Lake platform with 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB

• Intel SkyLake-U/ KabyLake-U platform with 1 x 260-Pin DDR4 2133MHz SO-DIMM up to 16 GB

• Wide-coverage PLC Driver Database.Support standard protocols and 90%+ mainstream PLC drivers

• Supports Modbus RTU/TCP/ASCII, OPC UA, Restful API, MQTT; Mitsubishi, Siemens, Rockwell, Omron, CODESYS... PLC drivers

• Splendid Vector Graphic Widget Library. Support Push Buttons, Switches, Lamps, Meters, Bars, Sliders, Charts,…etc

• Diversified Smart Functions. Supports Alarm, Macro, Data Log, Scheduler, Recipe, Report, VNC, Security, VPN, FTP, Wi-Fi AP Station, Multi-Languages, Watchdog...software functions

• Rich I/Os, 2 LAN, 2 COM, 4 USB, SIM Card Slot, Swappable Drive Bay, Speaker out for Flexible Expansion Modules

• Rugged Design for Vibration & Shock Protection, Cableless Design

• Fanless Operation from -10 ~ 50°C

• Wide Voltage +12V ~ +26V Input, ErP Power

• Available Expansion for Audio, USB, COM, HDMI, MPCIe, GPIO, CAN Bus

• Service Window, Easy to Install Memory Module

• IP65 Compliant Front Panel, IP41 Rear Box

• Front panel: IP65, Rear: IP41(except I/O)

• With Panel Mount kits included

• TPM 1.2/2.0 Function (Optional by Model)
