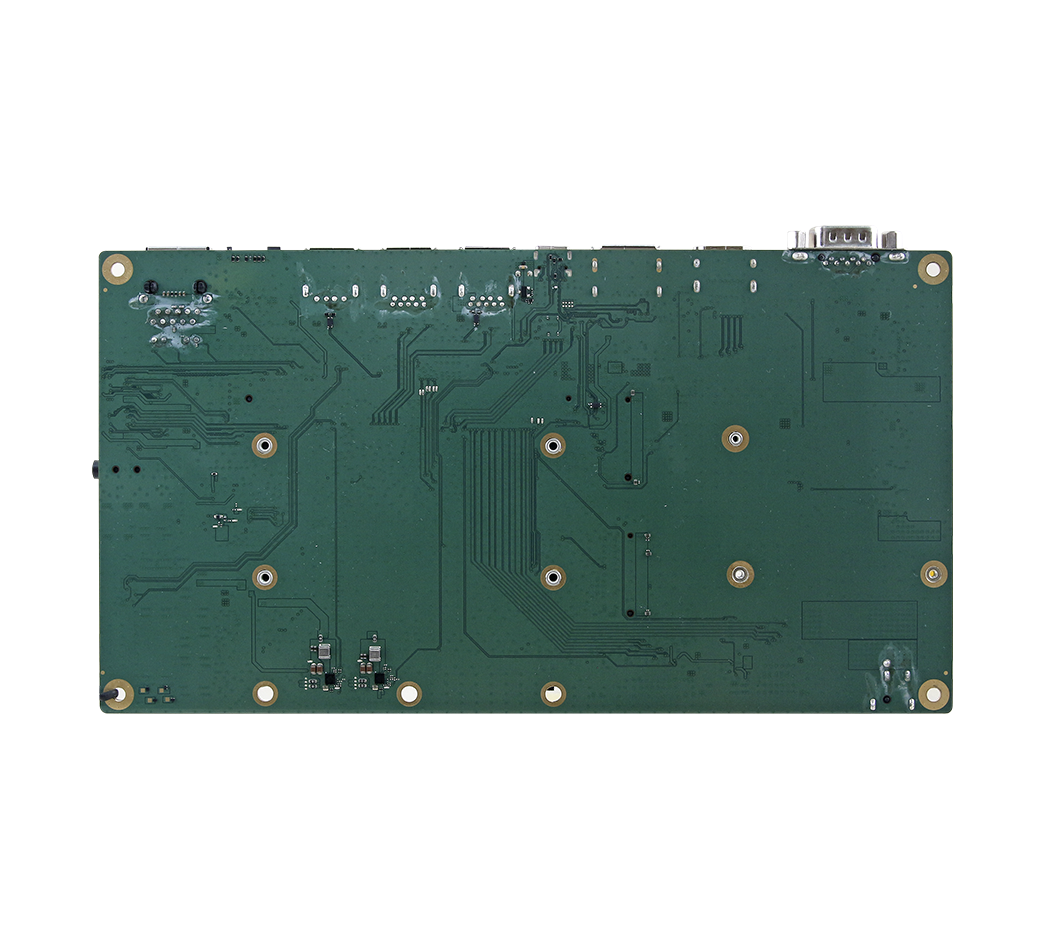

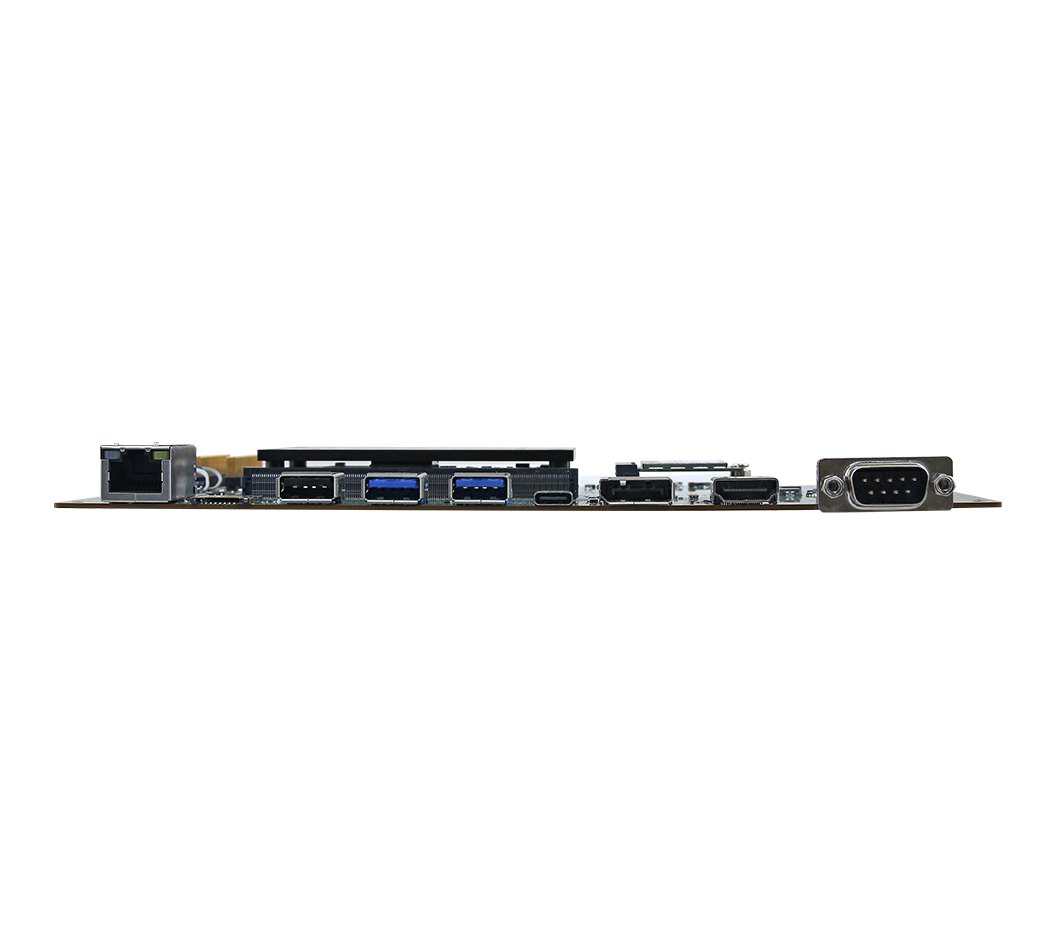

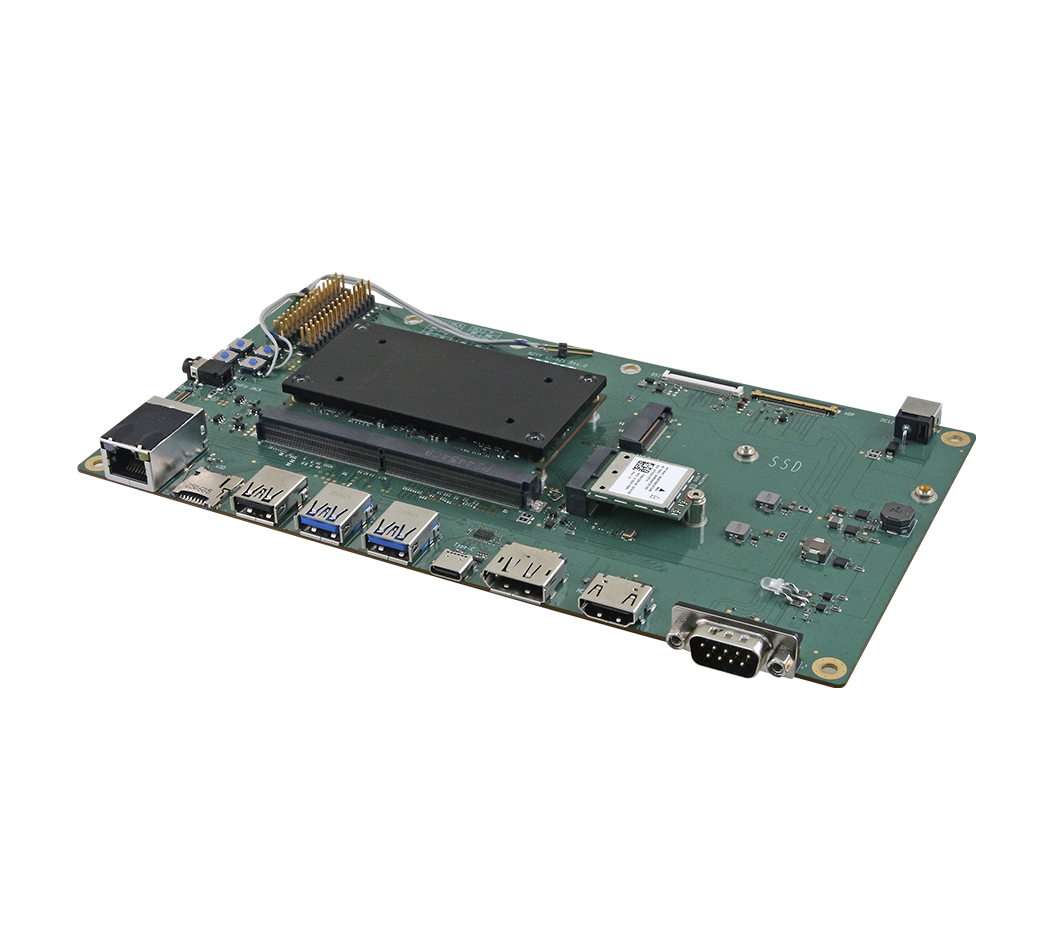

SMA-Q6490

Qualcomm QCS6490, ultra low power, AI Computing with 12 TOPS (INT8)

Get a Quote

Comparison

Datasheet

Related Tags

Get a Quote

Comparison

Datasheet

Related Tags

  • Specification
  • FAQ

ProductSpecification

System Information

  • Processor

    Kryo 670 octa-core (1×2.7 GHz + 3×2.4 GHz + 4×1.9 GHz), Arm v8 Cortex architecture

  • NPU

    6th generation Qualcomm AI Engine, 12 TOPS with Hexagon DSP and tensor accelerator

  • GPU

    Adreno 643, up to ~812 MHz

  • System Memory

    8GB/16GB LPDDR5

  • Watchdog Timer

    Secure (TrustZone) HW watch dog: 22 seconds in default

  • H/W Status Monitor

    yes

Expansion

  • Expansion

    PCIe3.0

Storage

  • Storage

    128GB UFS

Display

  • eDP

    * 1

  • Interface

    PCIe3.0, GbE MDI, UART, USB, GPIO, DSI, I2C. I2S, DP, SDIO, CAN, MIPI-CSI, HDMI, eDP

Ethernet

  • Ethernet Interface

    GbE MDI

Software Support

  • OS

    Win11 IoT (WoA), Android 13 (available in April)

Certification

  • Certification Information

    CE,FCC

I/O

  • USB

    2x USB3.2, 1x USB2.0

  • I2C Bus

    *3

  • PCIe

    PCIe 3.0 *2 , PCIe 3.0*1

  • GPIO

    *6

  • HDMI

    *1

  • I2S

    *2

  • SPI

    *1

  • UART

    *2

  • CAN

    *1

Mechanical & Environmental

  • Operating Temp.

    -25~60°C (commercial-grade), -25~85°C (Industrial grade , available in May)

  • Storage Temp.

    -25~75°C

  • Operating Humidity

     IEC60068-2-78, Damp Heat Steady State Test,40C,95%,48Hrs

  • Weight

    45 g

  • Power Requirement

    20W

  • Dimension (L x W)

    82 x 50 mm
