It can check RTC function normal operation by running RU.exe or RW.exe software

Test environment:

Board: EMX-H310DP-A1R
Test software:
1. RU.EXE : 5.31.0410 (UEFI mode tool)

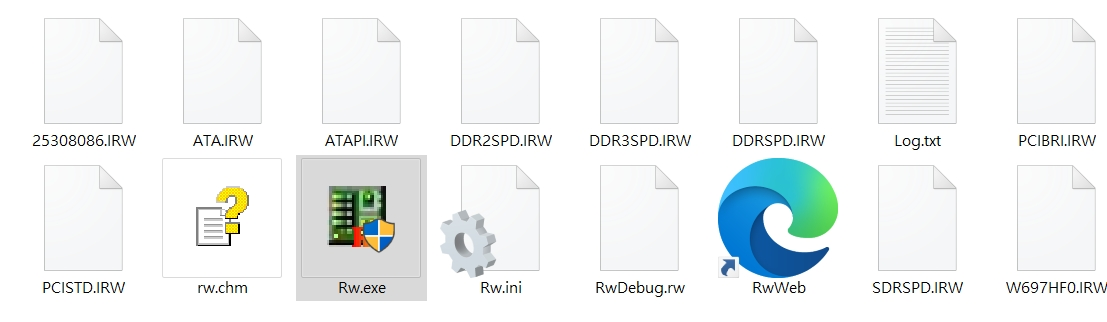

2. RW.EXE : RwPortableX64 V1.7 (Windows tool)
OS: UEFI shell / Windows 10

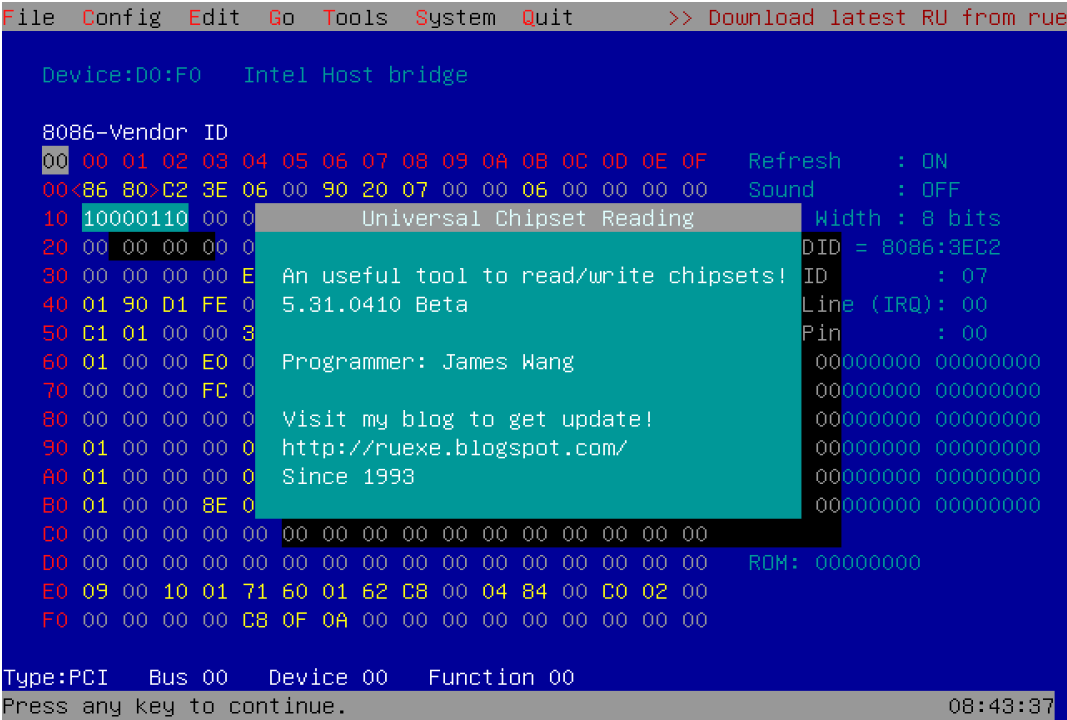

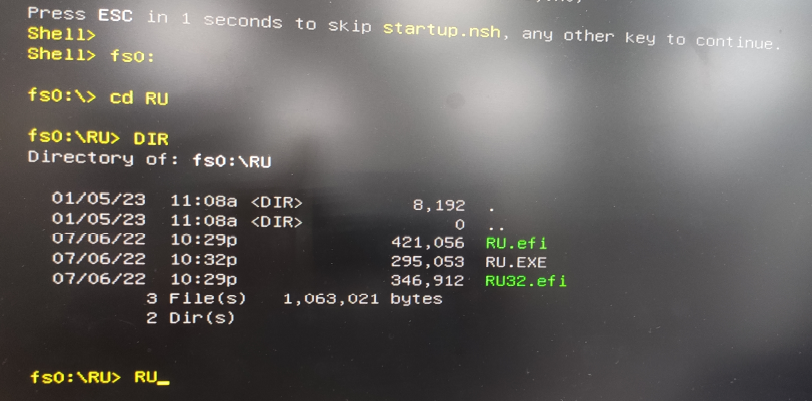

1. Run RU.exe in UEFI mode:

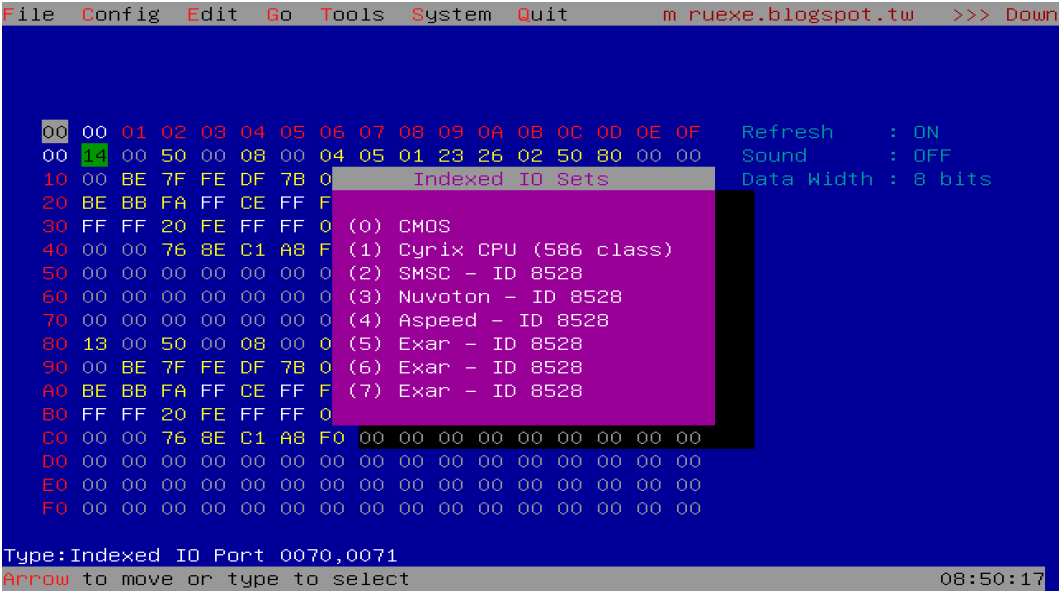

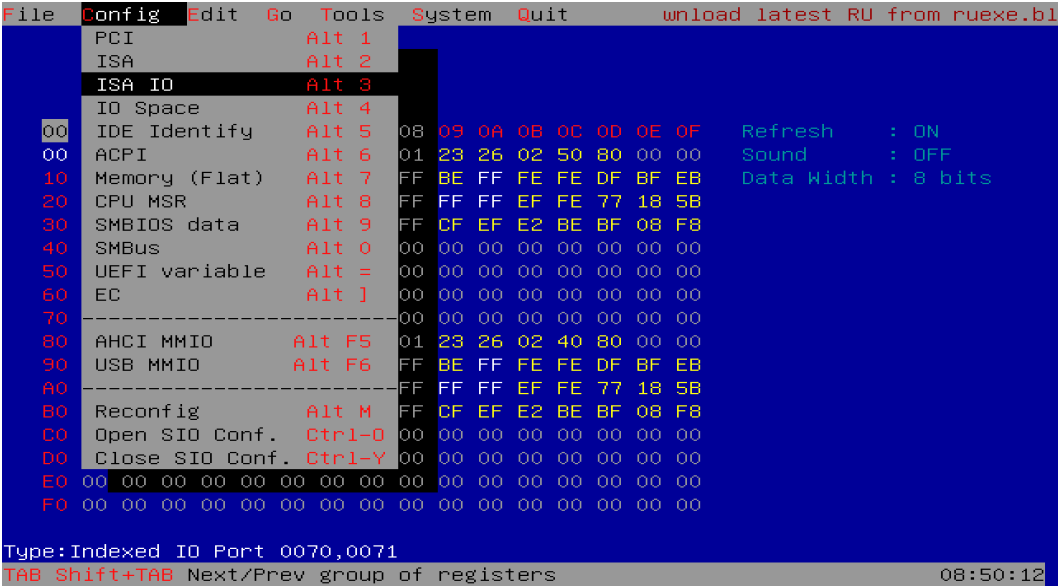

Click “Alt+C”-->select “ISA IO”-->Select ” “CMOS”

Into Indexed IO port 0070/0071, Address: 0A

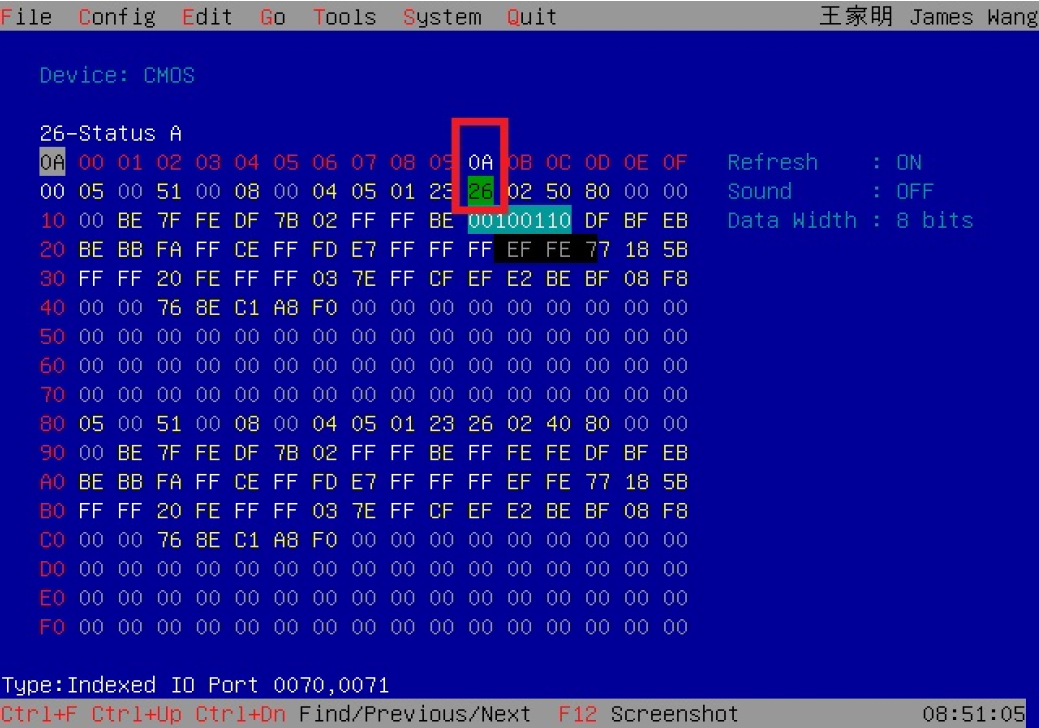

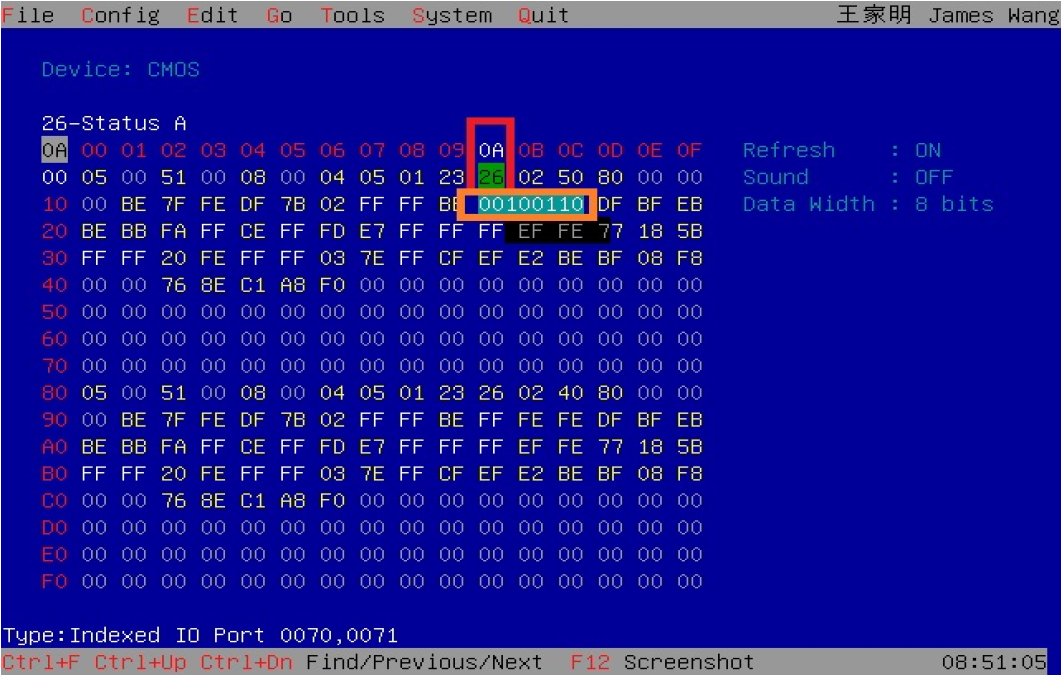

RTC_REGA- Register A, bit [6:4] = 010 =Normal Operation

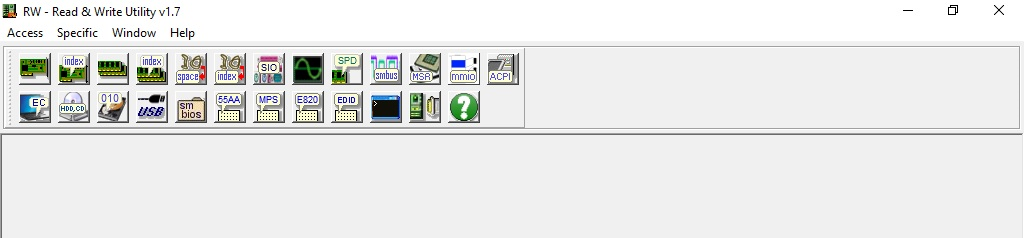

2. Run RW.exe in Windows 10 (RwPortableX64V1.7)

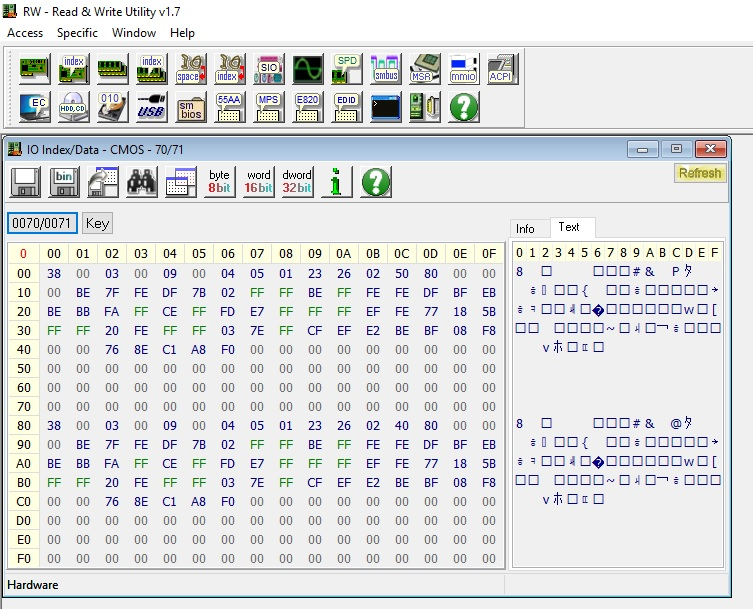

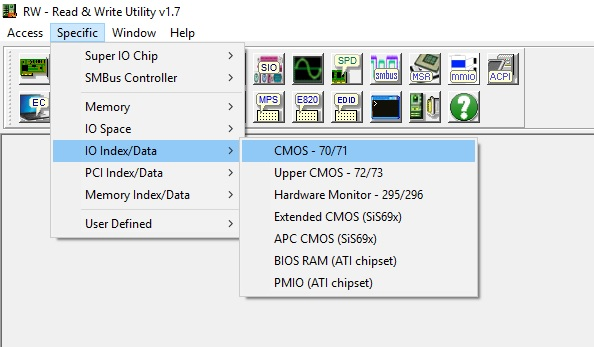

Select Specific / IO Index/Data / CMOS - 70/71

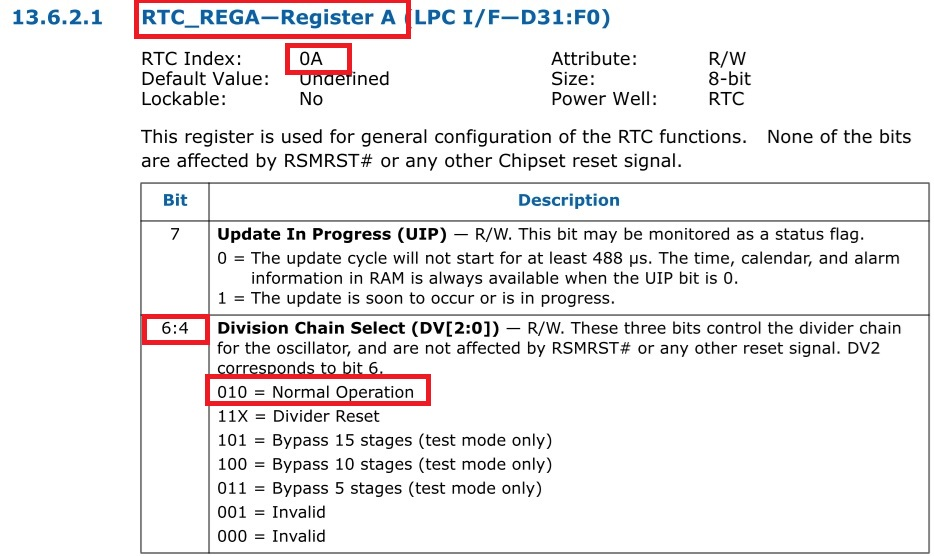

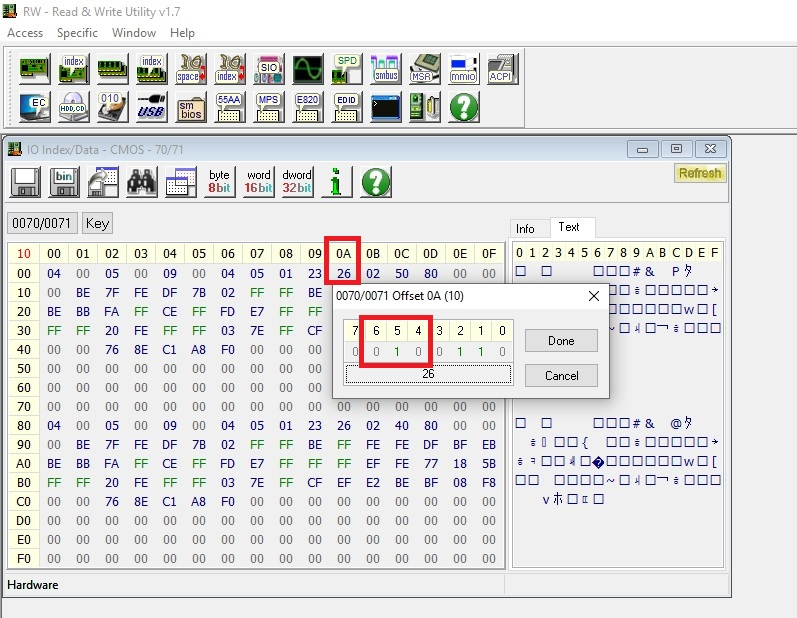

RTC_REGA- Register A, bit [6:4] = 010 =RTC Normal Operation
