Processor

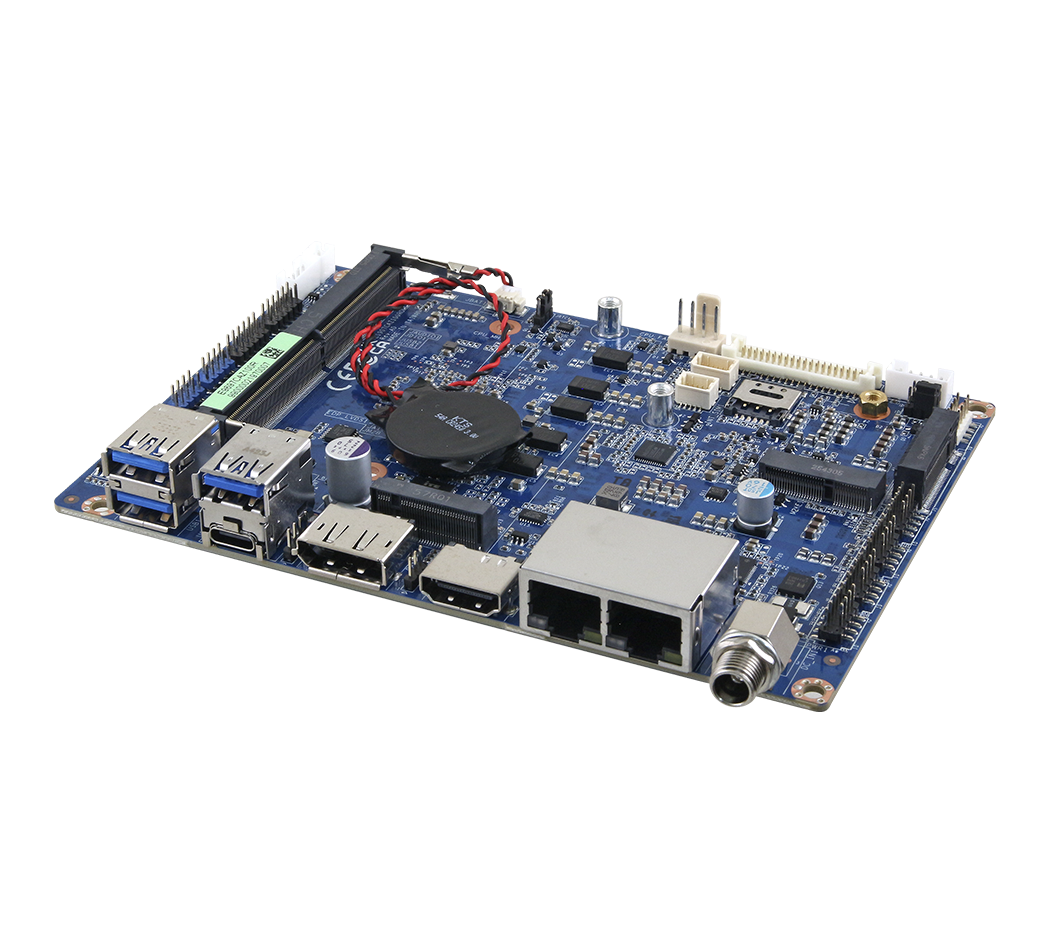

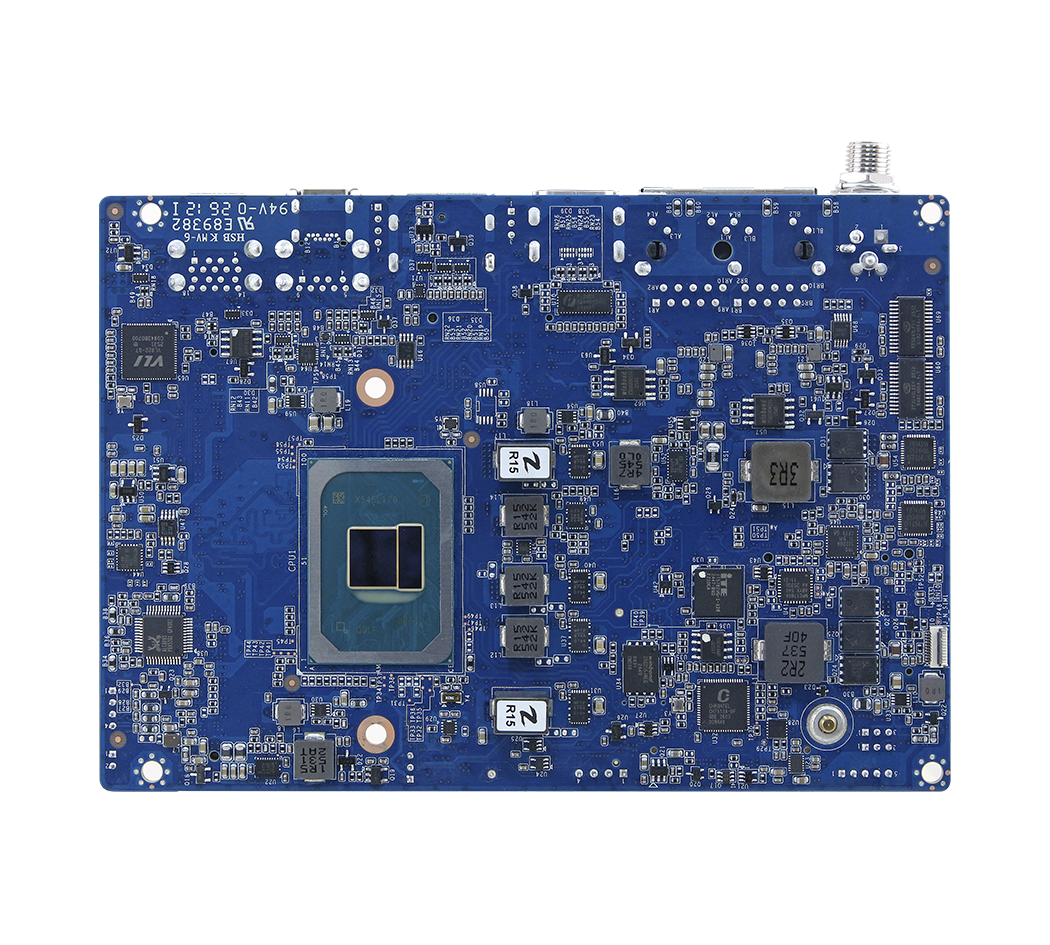

Intel® Core™ Series 3 7/5/3 BGA Processor (Codename: Wildcat Lake-U), supports TDP 15W/28W

System Memory

One 262-pin DDR5 6400MHz SO-DIMM socket supports up to 48GB Max.

TPM

Onboard NuvoTon NPCT760AABYX support TPM 2.0

Expansion

1 x M.2 Key-E 2230 support Wi-Fi 7/BT6 module with PCIe x1 Gen4 and USB 2.0 signals.
1 × M.2 Key-B 2242/3042/3052 with PCIe x1 Gen4 and USB 2.0 (From USB Hub IC) signals, or PCIe x1 SSD, and USB 2.0, with 1 x SIM card slot for LTE/IO Cards support WWAN+GNSS.
* Does not support I2S and PCM functions
* Only supports one SIM card (co-lay 1 x 10pin FPC connector for uSIM card adapter)
* 1 x 1 x 3 pin, pitch 2.00mm connector for M.2 module card 3.3V and 3.8V selection (Jumper default: 1-2 for 3.3V)
1 x M.2 Key-M 2280 with PCIe x2 Gen4 signal for storage NVMe SSD.

Storage

1 × M.2 Key-B 2242/3042/3052 with PCIe x1 Gen4 and USB 2.0 (From USB Hub IC) signals, or PCIe x1 SSD, and USB 2.0, with 1 x SIM card slot for LTE/IO Cards support WWAN+GNSS.
1 x M.2 Key-M 2280 with PCIe x2 Gen4 signal for storage NVMe SSD.

Graphic Chipset

Intel® 3rd Gen Xe cores Graphics

Spec. & Resolution

1 x HDMI 2.1
1 x DP++
1 x DP (From USB Type-C)

Multiple Display

Triple Displays

LVDS

1 x LVDS: 1920 x 1080 2CH 18/24-bit or 1 x eDP: 1920 x 1080@60Hz 2 lanes, default LVDS

Audio Codec

RealTek ALC888S-VD2-GR

Audio Interface

Line-in, Mic-in, Line-out

Audio Amplifier

2 x 2W 4Ω Amplifier

LAN Chipset

1 x Intel® I226LM 2.5 Gigabit Ethernet Controller
1 x Intel® I226V 2.5 Gigabit Ethernet Controller

Ethernet Interface

10/100/1000/2.5G Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Mode

AT/ATX (Default Setting: AT)

OS

Windows 11, Linux

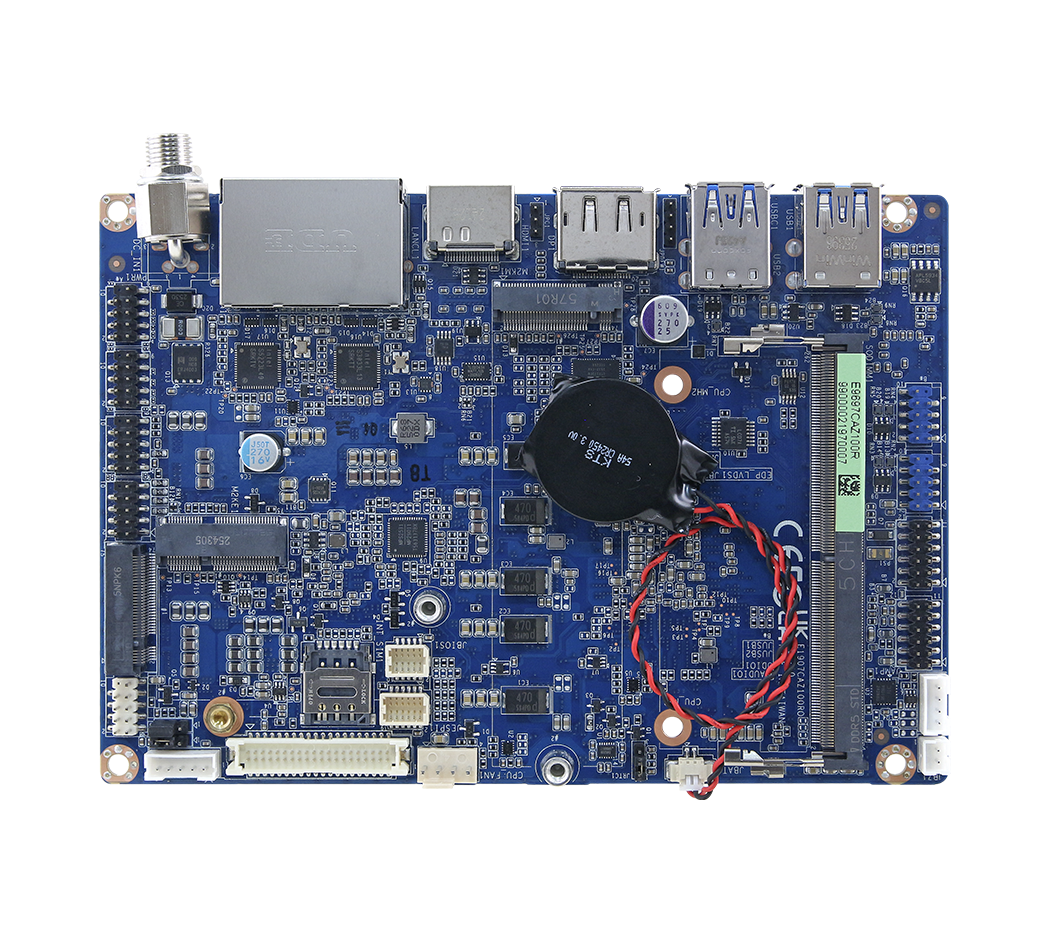

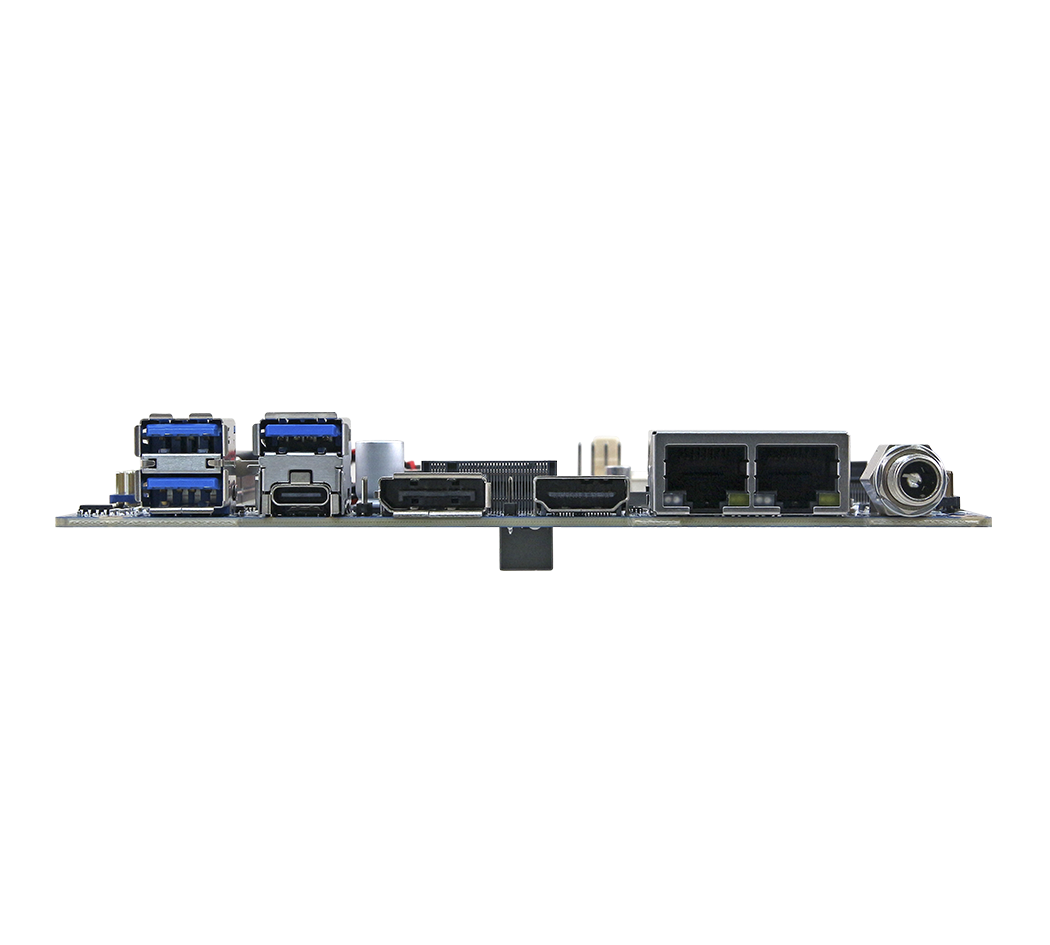

USB

2 x USB 3.2 Gen 2x1 Type-A (+5VSB/0.9A) on dual deck I/O
1 x USB 3.2 Gen 2x1 Type-A (+5VSB/0.9A) & 1 x USB Type-C 15V@3A with DP 1.4a support on dual deck I/O
4 x USB 2.0 by pin header

COM Port

2 x RS-232, 2 x RS-232/RS422/485

GPIO

1 x 16-bit GPIO

Operating Temp.

Standard Temperature: 0°C ~ 60°C (-4~140°F) with 0.5m/s Air Flow

Ordering Information

TBC
