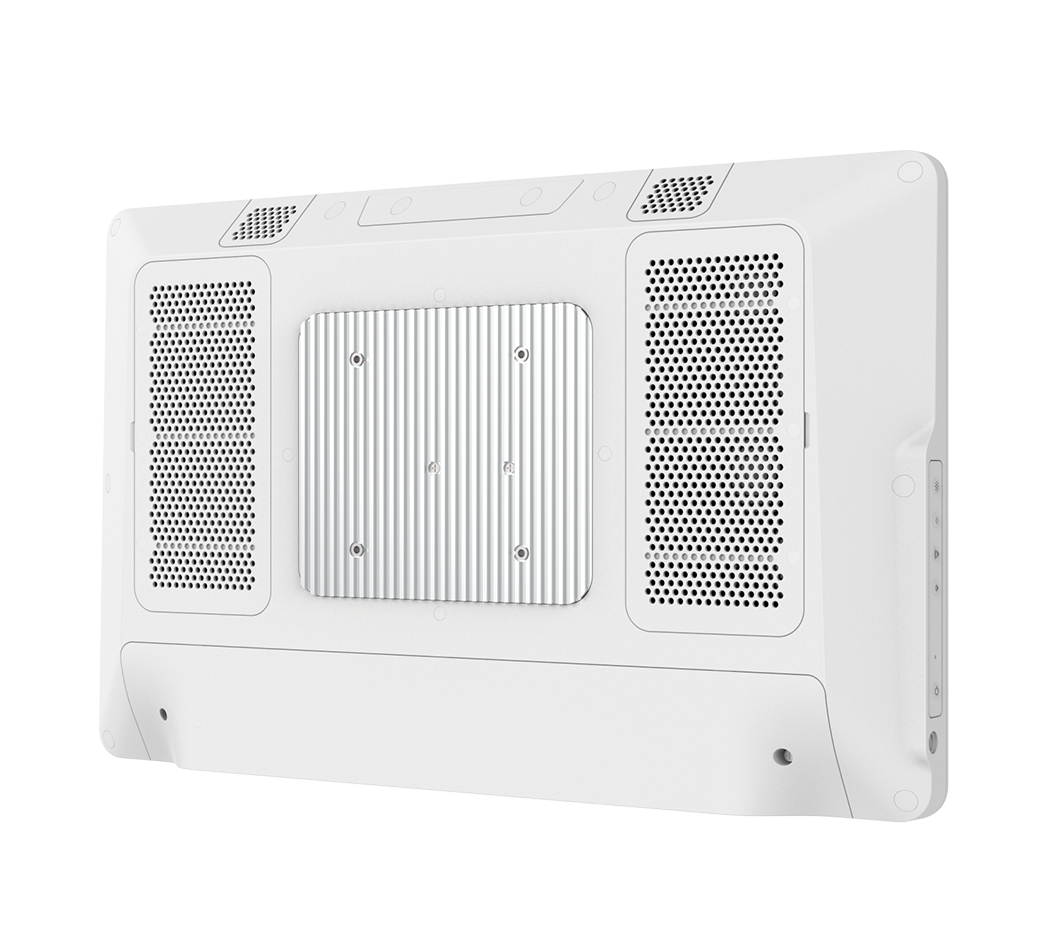

HID-2146 Mother Board

Processor

Intel® Arrow Lake U Processors (15W)
Intel® Core™ Ultra 5 225U 1.5GHz
Intel® Core™ Ultra 7 255U 2.0GHz

System Memory

Two 262-pin DDR5 up to 5600MHz SO-DIMM socket, supports up to 96GB Max

I/O Chipset

IT5782VG

Watchdog Timer

H/W reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

TPM

NuvoTon NPCT750AADYX support SPI TPM 2.0

Platform Controller Hub

Integrated in Processor (SOC)

Expansion

1 x PCI Express [x4]
1 x M.2 Key B 2280 for AI card (PCIe x 2)
1 x M.2 Key E 2230 support Wi-Fi module
2 x M.2 Key M 2280 (PCIe x4) for storage

Other Storage Device

2 x M.2 Key M 2280 (PCIe x4) slot for storage

Speaker Output

2 x 2W

LAN Chipset

1 x Intel® I226LM

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

LAN Port

1 x RJ-45

DC Input

+24V

Power Mode

AT/ATX (ATX is default setting)

DC Input Connector

Lockable DC Jack

OS

Win11/ Linux

Certification Information

CE (MDR): IEC/EN 60601-1 (Safety), IEC/EN 60601-1-2 (EMC)
FCC: Part 15 Class B
UL / cUL: IEC/EN/ANSI/AAMI 60601-1
CB Scheme: IEC/EN 62368-1
CCC

USB Port

2 x USB3.2
4 x USB2.0
1 x USB Type-C (DisplayPort output/PD output 5V/3A, 15W/No PD input)

COM Port

1 x RS-232/422/485

Audio Port

Combo jack

LAN Port

1 x Intel® I226LM

HDMI

1 x HDMI 2.0

Wireless LAN

Optional 802.11abgn+acR2+axR2+be MIMO 2x2 Wi-Fi 7 BT5.4

LCD Size

21.5"

Resolution

1920 x 1080

Luminance

250 cd/m2

Display Type

Full HD

Pixel pitch

274.5 x 274.5

Contrast ratio

1000

Response time

22 ms

Viewing angle

89(U), 89(D), 89(L), 89(R)

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Controller

USB touch (EETI EXC81H84)

Touch Light Transmission

86%

Backlight

LED

Output Voltage Range

12V/24V

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Dimension (W x L x H)

520 x 321 x 55 mm

Weight

5.4 kg

IP Rating

Front IP65

Construction - Front

Plastic

Construction - Rear

Plastic

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

System Fan

Yes

Finishing

Anti-microbial

Adapter

Medical grade
Input: 100-240V~, 2.8-0.8A, 50-60Hz
Output: 24V 7.5A 180W

Packing List

1 x HID-2146 Medical panel PC
1 x Medical power adapter

Ordering Information

HID-2146-B1-22-A1R
21.5" Arrow Lake Medical Multi-Touch Panel PC,Intel Core Ultra 5 225U/8GB Memory/USBC/HDMI/NFC/DC Out/6USB/LAN/COM/SPK/180W Medical adapter

HID-2146-B1-25-A1R
21.5" Arrow Lake Medical Multi-Touch Panel PC,Intel Core Ultra 7 255U/8GB Memory/USBC/HDMI/NFC/DC Out/6USB/LAN/COM/SPK/180W Medical adapter

Power Cord:
E1702031000R EU Power Cord
E1702031833R US Power Cord
E170203183CR JP Power Cord
E170P060380R UK Power Cord
E1702031831R AU Power Cord
E170P060391R CN Power Cord
