    How to update BMC firmware in linux OS for HPM-621DE

    • Document NO.

      2023103103

    • Category

      Software BIOS

    • Update Date

      2023-11-08

    • Rev.

      A1

    Export PDF

    Model Name

    HPM-246UA HPM-621DE HPM-621UA HPM-SRSUA HPS-246U4A HPS-246UTA HPS-621D4A HPS-621DTA HPS-621U2A HPS-621U4A HPS-621UTA HPS-SRSU4A HPS-SRSUTA HPM-SRSDE HPS-SRSD4A HPM-SIEUA HPM-ERSUA HPM-ERSDE HPS-ERSU4A HPS-ERSUTA HPS-ERSD4A GAI-ERSR-70B GAI-ERSR-70B-Lite GAI-ERSR-33B

    Purpose

    There are two ways to update BMC firmware in Linux OS. One is through local update and the other is via remote update.

    # Local update

    1.Type ./Yafuflash.exe -kcs –spi xxx.hpm to update BMC

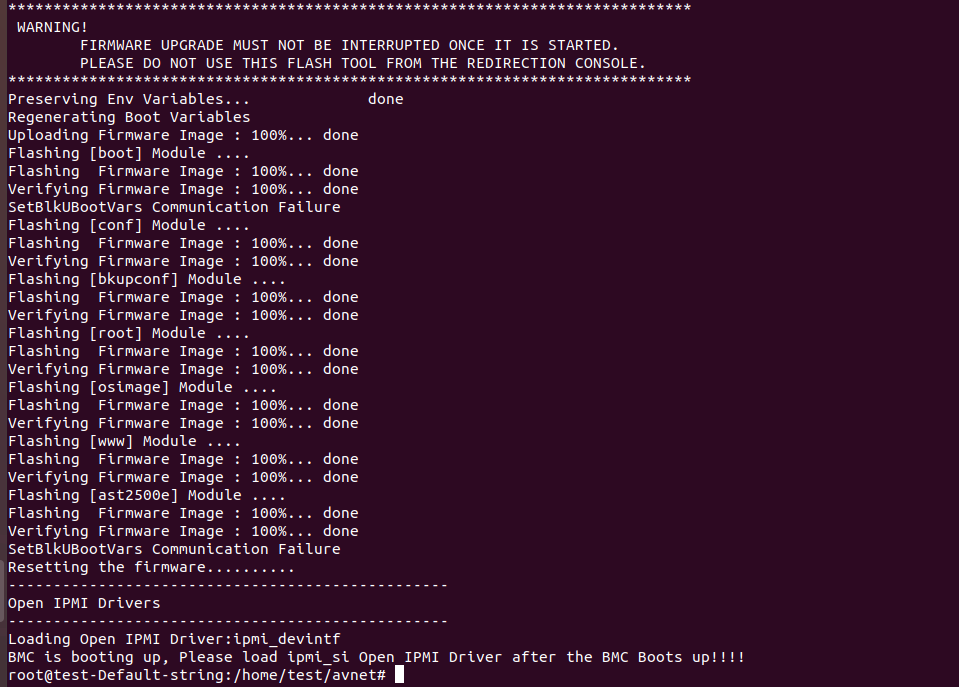

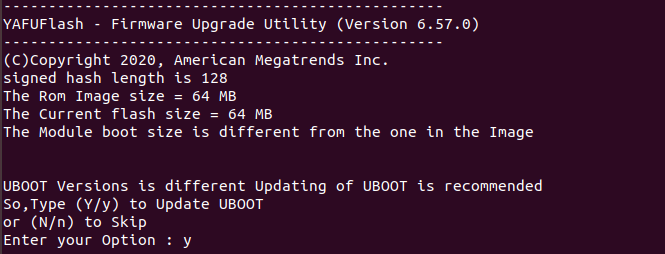

    2.Type Y when the following message prompt.

      Please wait. This may take few minutes.

    3. When the update process finishes, BMC will reset.

    #Remote update

    1. Input the command

    • ./Yafuflash -nw -ip [BMC IP address] -U [user name] -P [user password] -spi [BMC
    • file name].
    • The default username and password are admin/admin.

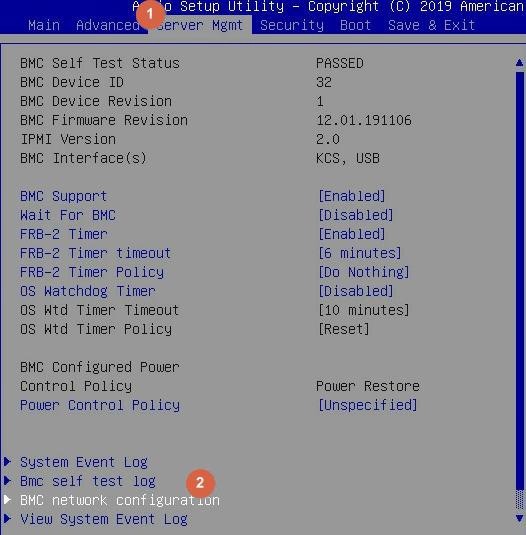

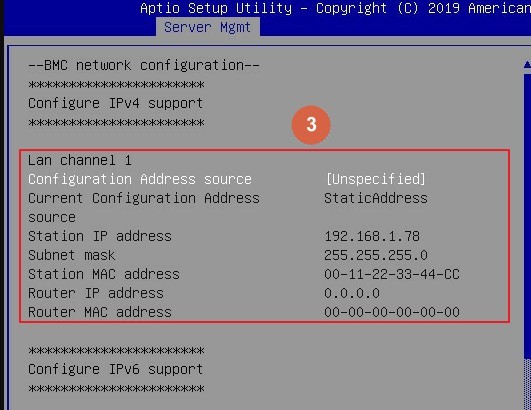

      Note: BMC IP address can be configured at BIOS menu

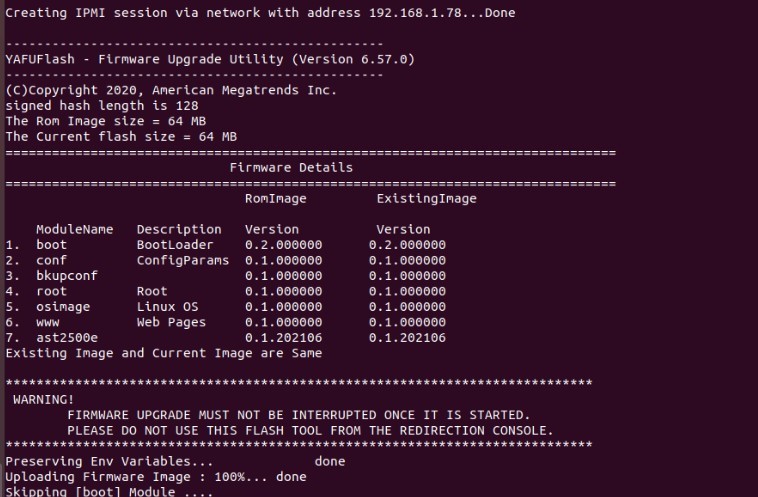

    2. When the following screen shows, please wait few seconds. The update process will start. tart

    3. When the update process finish, BMC will reset.
