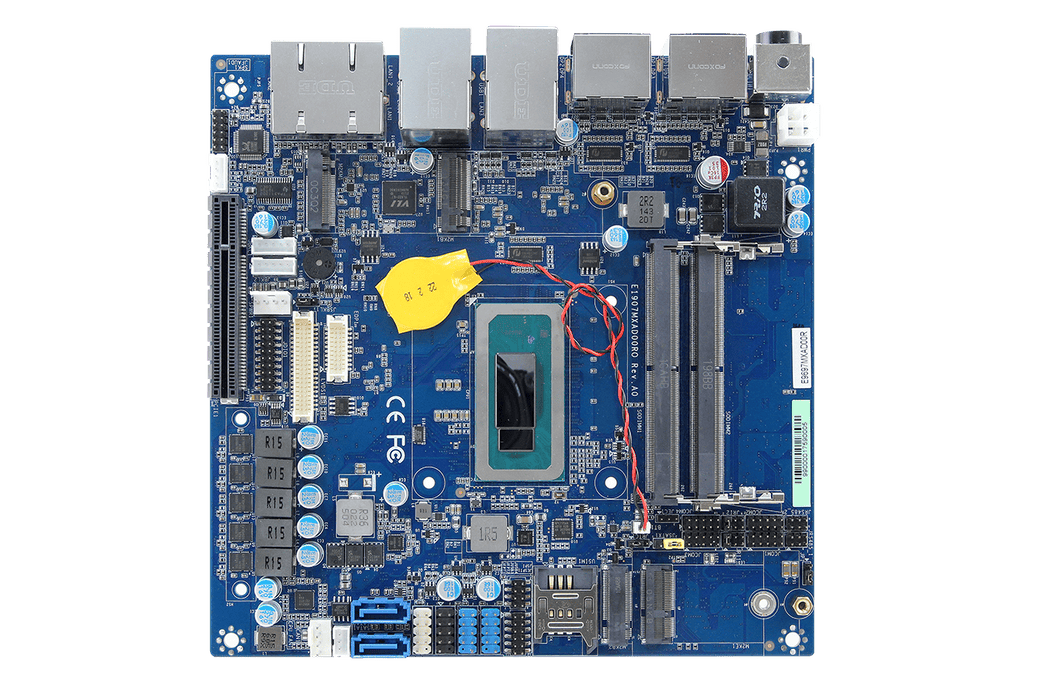

Avalue unveils EMX-ADLP Mini-ITX, Compact and Highly Customized to Meet Comprehensive Industrial Control Needs
TAIPEI, TAIWAN, Aug. 24th, 2023 –Avalue Technology Inc. (TAIEX: 3479-TW), a global industrial PC solution provider and a Titanium member of the Intel® Internet of Things Solutions Alliance, unveils the latest Mini-ITX motherboard, EMX-ADLP, which fully supports Intel® 12th Generation H/P/U series processors and meets the power requirements of 15~45W for H/P/U series, as well as high-performance H series processors. (CPU by BOM option)
With a flexible CPU power range (12~45W) and highly customizable CPU options, the compact and complete design of the EMX-ADLP making it competitive in the small form factor computer market and an ideal choice for various industrial applications. When optimal efficiency is required, the EMX-ADLP can be equipped with high-performance H-series processors and support up to 64GB of DDR5 SO-DIMM memory. For storage needs, the EMX-ADLP can be configured with economical processors and high-capacity disks such as 2 x SATA III or 2 x M.2 SSDs to build RAID 0/1 arrays for secure data storage.

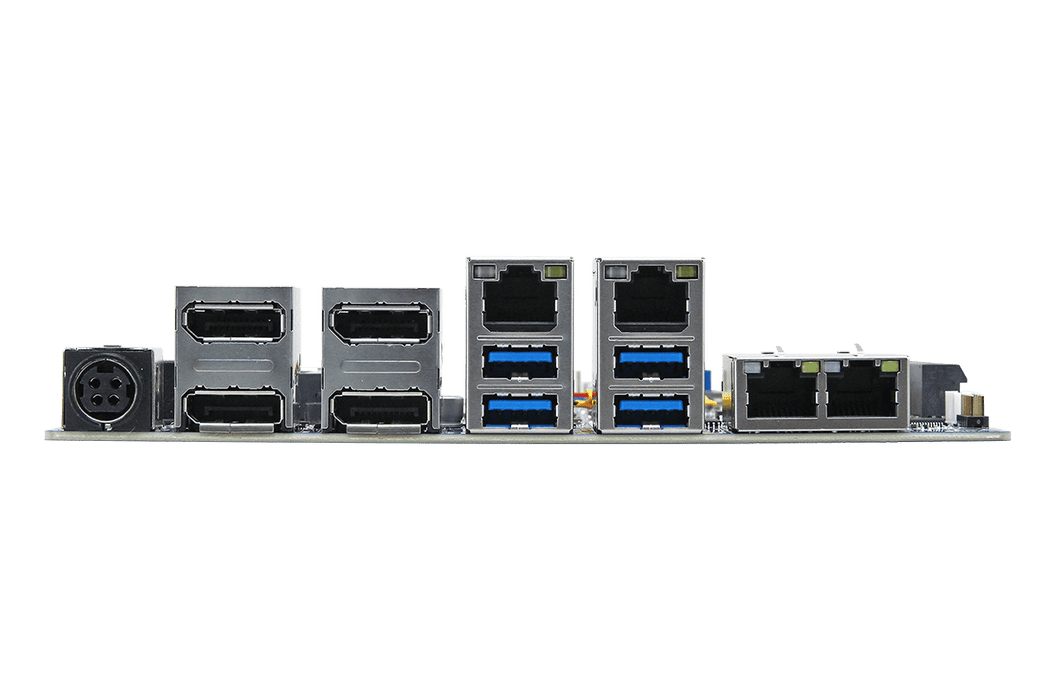

When used as a display output device, the EMX-ADLP supports up to 4 DP display outputs (2 x DP++, 2 x DP) or can be configured as a single output with a maximum resolution of up to 7680 x 4320 @ 60 Hz. It also offers eDP and LVDS as display outputs for the control interfaces allowing up to 4 monitors to be displayed simultaneously, allowing up to 4 monitors to be displayed simultaneously. For remote device applications, the EMX-ADLP provides the option of either a SIM card slot or a SIM FPC interface. For extensive expandability, the EMX-ADLP offers up to 4 M.2 slots (M-Key/E-Key/2 x B-Key), giving customers the flexibility to choose disks and expansion interfaces. In addition, for applications requiring higher performance, the H-Series processors can be expanded with 1 x PCI-e x8 Gen 4 slot, while the P/U-Series processors can be expanded with 1 x PCI-e x4 Gen 4 slot. The 6W high-power amplifier audio output further reduces additional expansion space and cost. For industrial applications, the EMX-ADLP offers 3 x Intel® 2.5G and 1 x Intel® 1G Gigabit Ethernet ports, ensuring more compatible connections for AOI/DCS/SCARA and internal/external network automatic control. In addition, it comes equipped with up to 8 USB connectors, 6 RS-232 serial interfaces (2 supporting RS-422/485), GPIO 16-bit signal control, and TPM 2.0 enterprise-class security features.
All in all, the EMX-ADLP motherboard is a high-performance, flexible, and highly scalable product that offers great flexibility in terms of performance and economy, and perfectly meets to the diverse needs of a wide range of applications.
