NVIDIA Platform

NVIDIA Jetson Orin™ NX 8GB/16GB

AI Performance

70/100 TOPS

System Memory

8/16GB 128 bit LPDDR5 102.4GB/s

OS

Ubuntu 20.04 / Ubuntu 22.04

Kernal

5.10.104 tegra or Higher

BSP

Linux for Tegra(L4T) R35.3.1 or Higher

SDK

JetPack 5.1.1 / JetPack 6.2 or Higher

AI SDK GitHub

https://github.com/Avalue-Technology/repositories.directory

M.2

128 GB

Storage

Supports External NVMe

USB Port

4×USB3.2 Gen2 ( Type-A )
2×USB3.2 Gen1 ( Pin Header )

LAN Port

1 x RJ45 for 10/100/1000Mbps Ethernet ( DHCP Client )

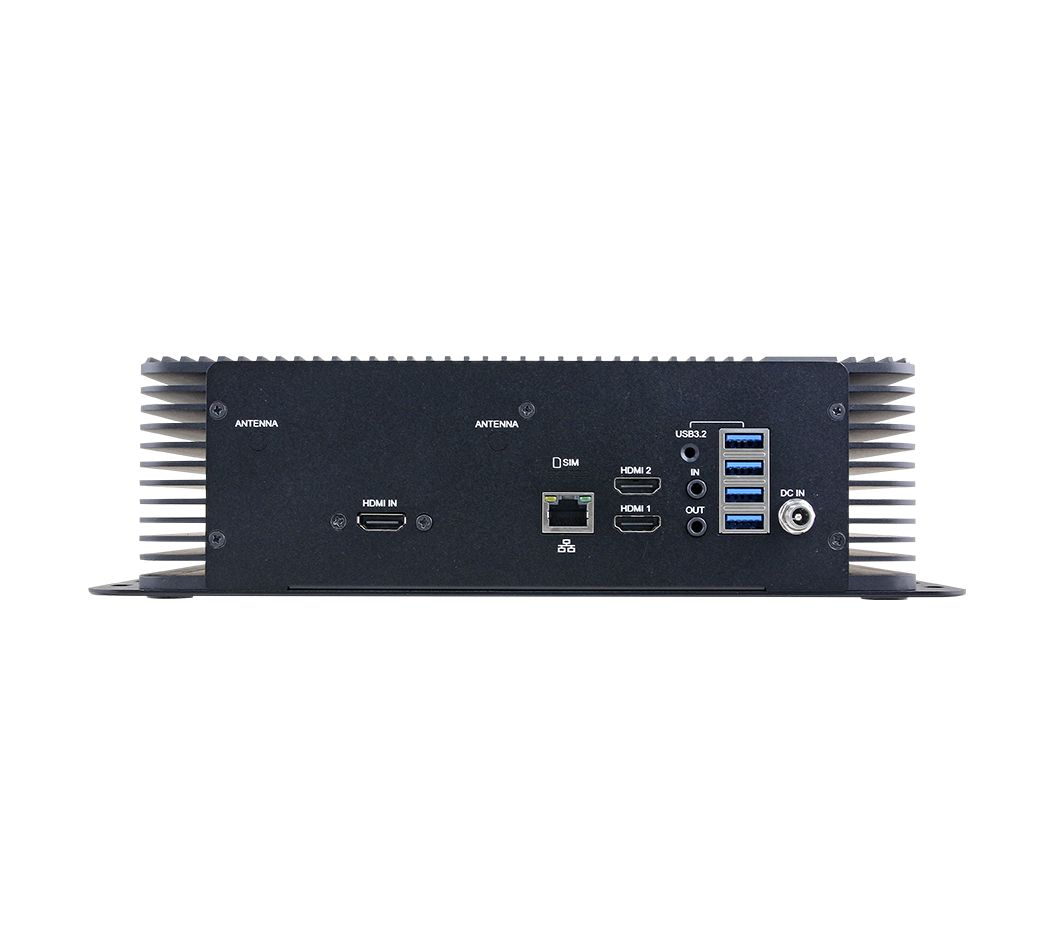

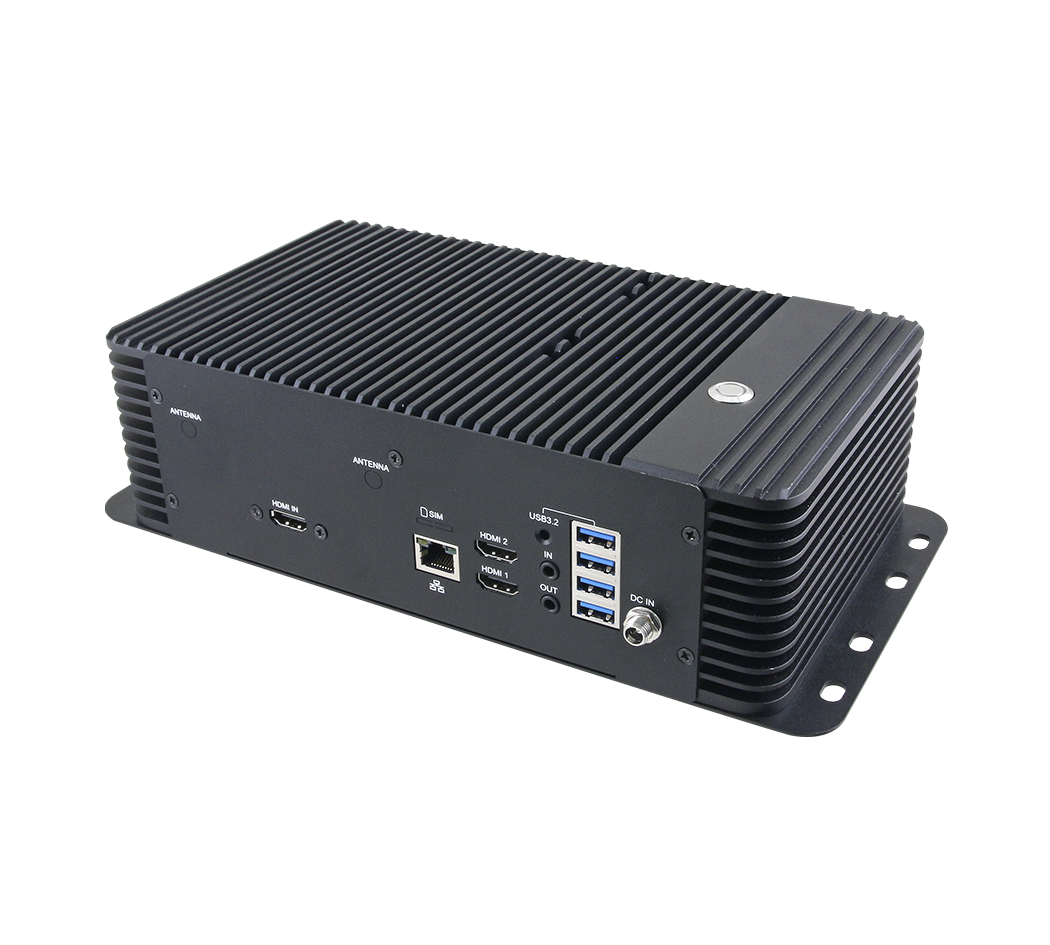

HDMI

2 x HDMI2.0

MIPI (Internal)

8 MIPI CSI 2 Lanes ( D PHY 2.1, Support MIPI Camera, Capture Card )

Antenna

4 x Antenna Mounting with Dust Protection Cover

AC/DC Input

1 x DC Jack

Audio

1×3.5mm Line In
1×3.5mm Line Out

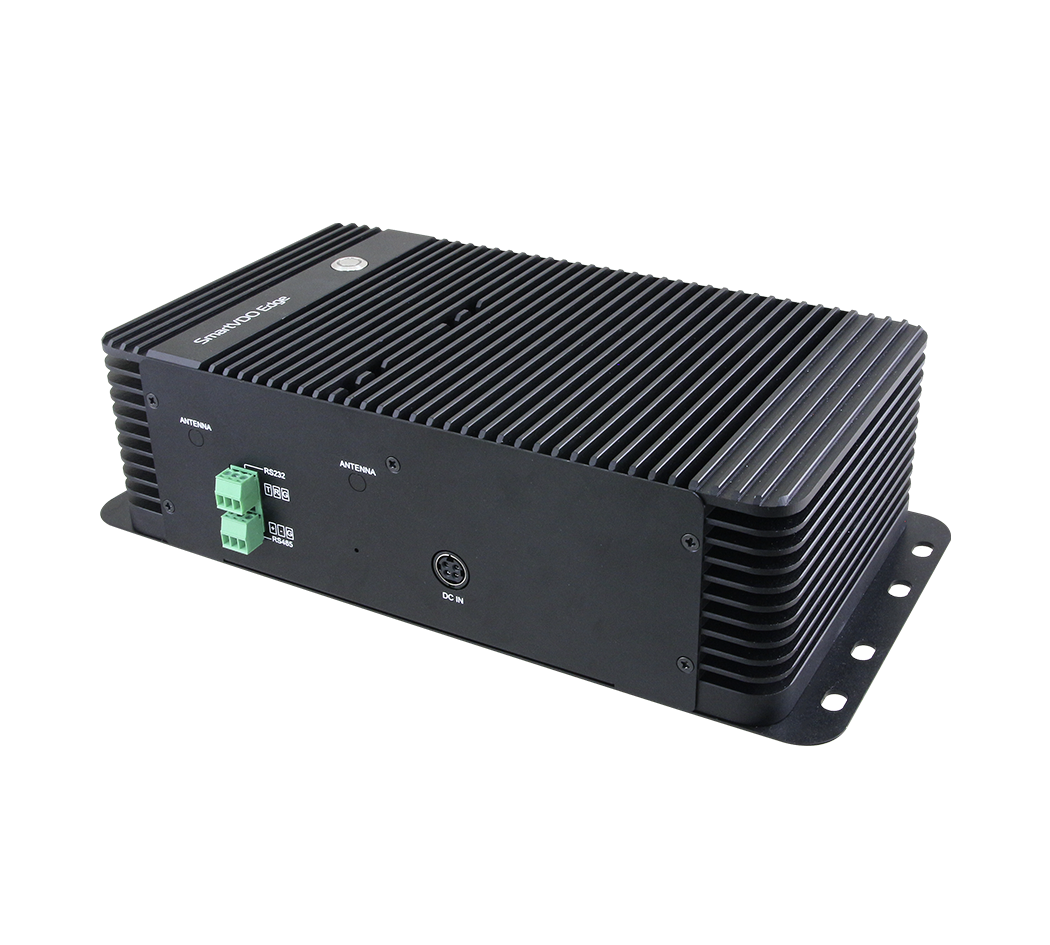

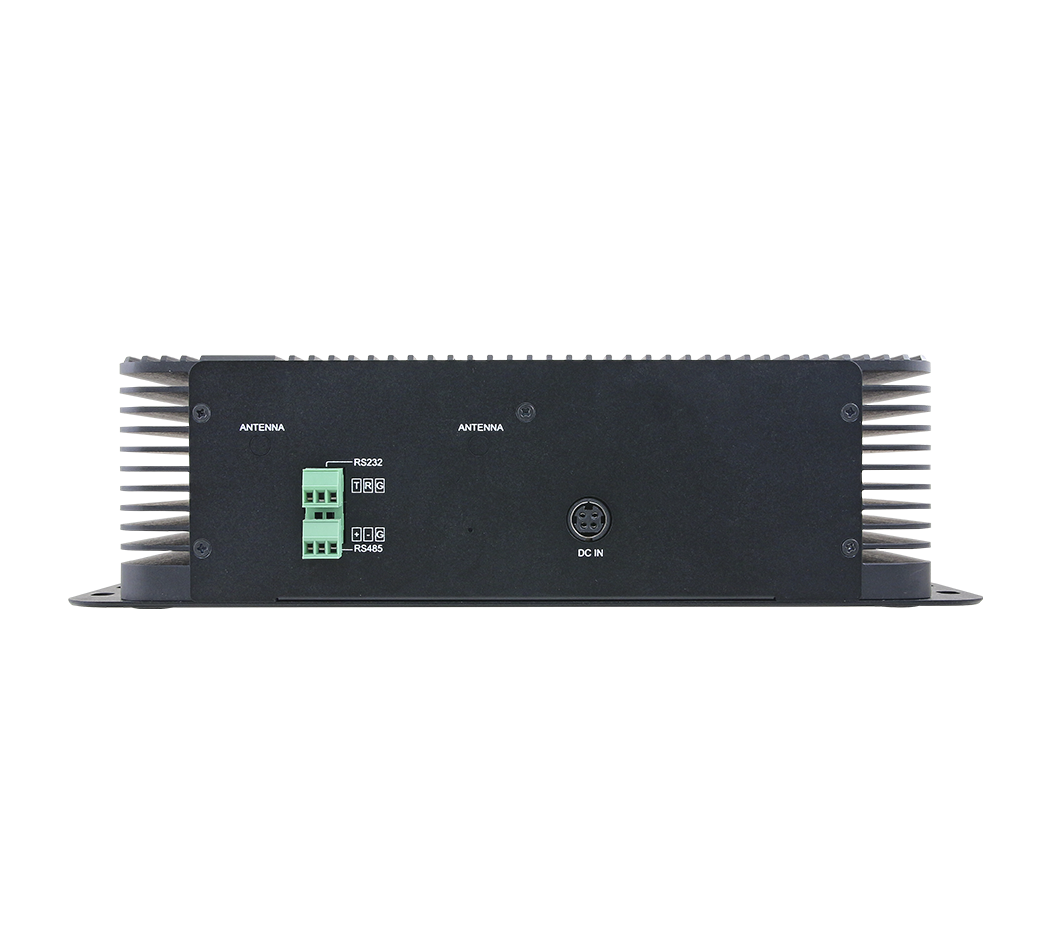

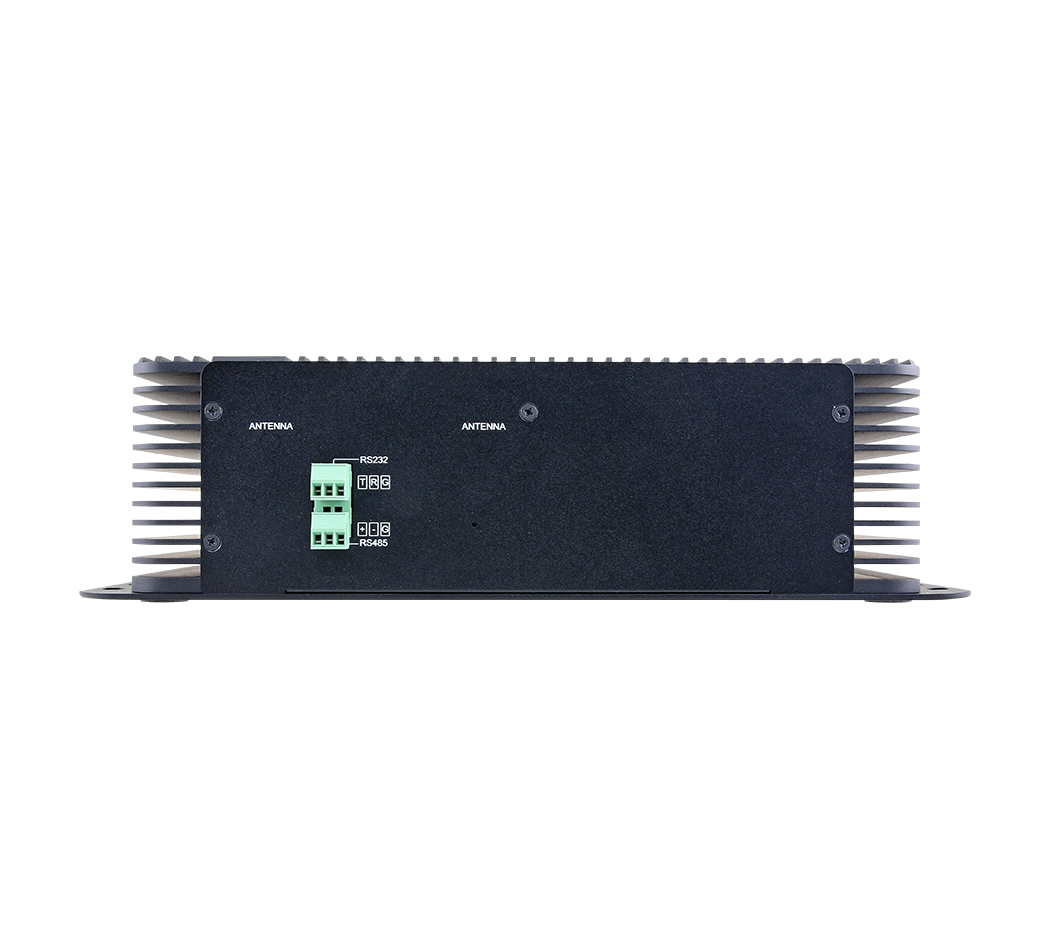

RS232

1×RS232 ( Phoenix Connector)

RS485

1×RS485 ( Phoenix Connector)

SIM Card Slot

Optional

M.2

1×M.2 2280/3080 M Key PCIe Gen4×4 Slot
1×M.2 2280 M Key PCIe Gen4×1 Slot
1×M.2 2280 M Key PCIe Gen4×2 Slot (HDMI 2.0 Model)

Power Requirement

DC input : 9~36V / DC Input : 48V (PSE model)

Operating Temperature

0~60C° with Airflow

Storage Temperature

-20~70 C°

Dimension (W x L x H)

286mm × 144mm × 76.6mm

Weight

1850g

Ordering Information

AIB-NINX-S08B-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04, Jetpack 5.1.1 or JetPack 6.2 / HDMI 2.0
AIB-NINX-S16B-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / HDMI 2.0

AIB-NINX-S08E-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / PSE
AIB-NINX-S16E-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / PSE

AIB-NINX-S08X-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2
AIB-NINX-S16X-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2

SDK / Software

By request

NX 5G

5G Mobility Network ( Supports 5G / 4G / 3G SIM Module)

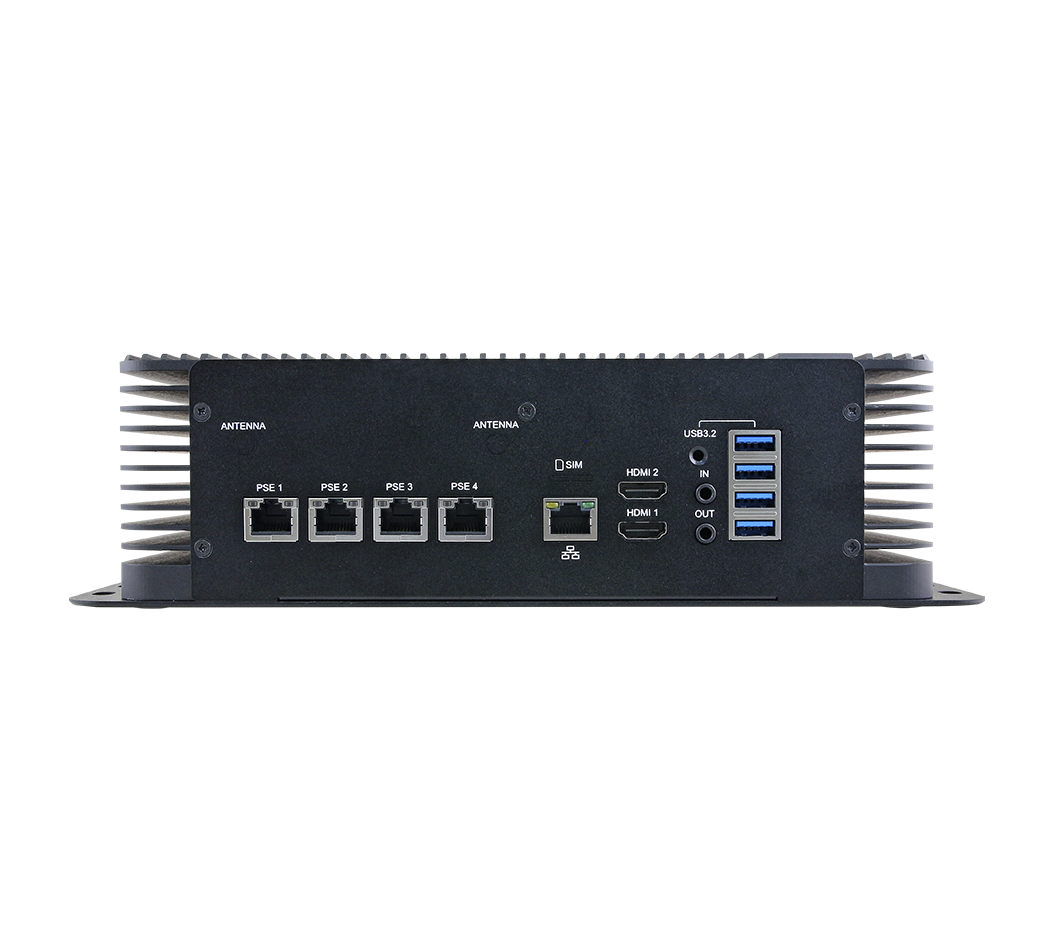

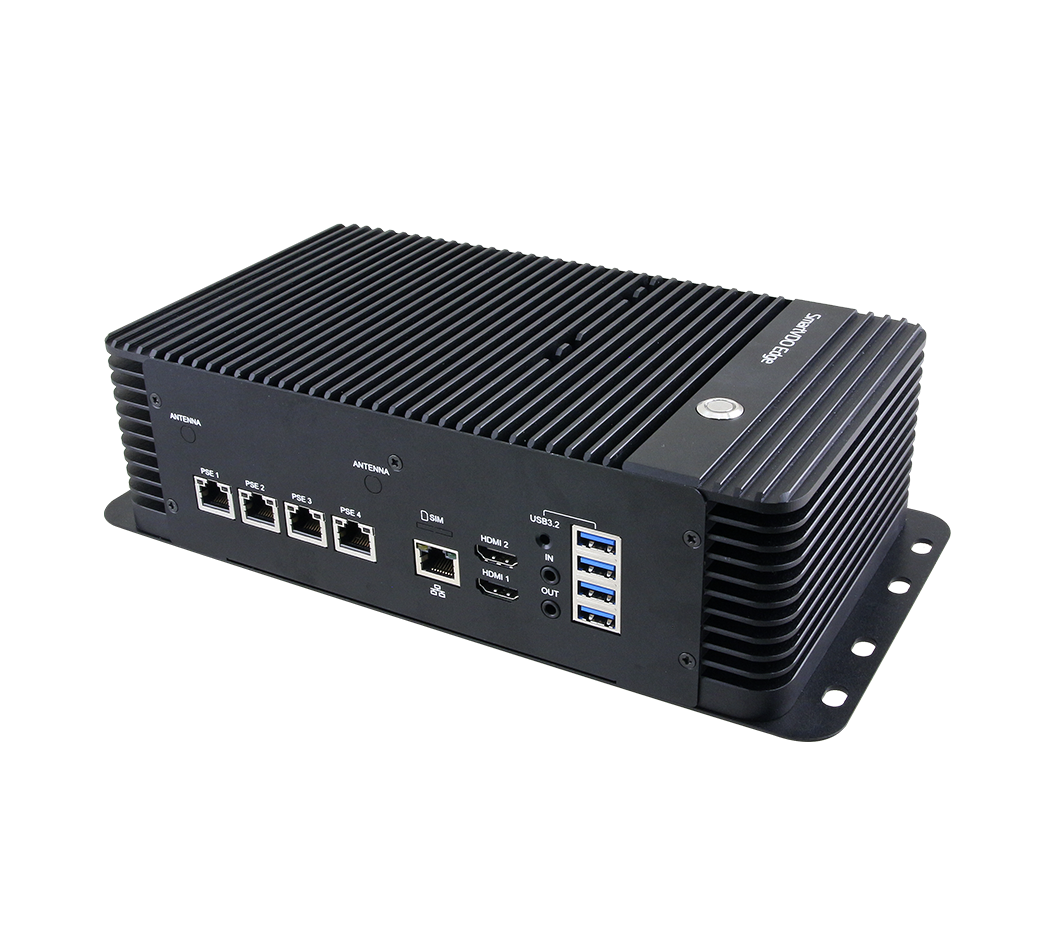

NX PSE

"*IP Camera
4×RJ45 for 10 / 100 / 1000Mbps Ethernet with IEEE802.3af Compliant
*PSE Power Supply
4×15W ( IEEE802.3af )"
