Processor

Intel® Pentium® N4200 2.50 GHz (Burst) | 1.1 GHz Clock Quad Core L2 cache 2MB 6W TDP
Intel® Celeron® N3350 2.40 GHz (Burst) | 1.1 GHz Clock Dual Core L2 cache 1MB 6W TDP

System Memory

Onboard DDR3L 1600&1333MHz Memory Support Up to 8 GB

I/O Chipset

EC iTE IT8528VG

BIOS

AMI UEFI BIOS, 128Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

H/W Status Monitor

Monitoring System Temperature
Voltage and FAN Status with Auto Throttling Control

Expansion

1 x PCIe x4 (Supports x1, x2, x4, Optional 1 x PCIe x4 While Removing Ethernet) Compliant to PCIe Gen2 5.0 GT/s

Storage

eMMC 5.1 Up to 128G (Optional)

Graphic Chipset

Intel® SoC Integrated Graphics

LVDS

Single Channel 18/24-bit LVDS From eDP-to-LVDS IC CH7511B
LVDS: Up to 1920 x 1080@60 Hz

Digital Display Interface

DDI0 Supports DisplayPort/HDMI/DVI-D
DisplayPort 1.2 up to 4096×2160@60Hz
HDMI 1.4b: Up to 3840 x 2160@30 Hz

eDP

4 Lane Support (Build Option, In Place of LVDS)
eDP 1.3: up to 3840 x 2160@60 Hz (Optional)

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I210AT

Ethernet Interface

10/100/1000 Base-Tx Gigabit Ethernet Compatible

OS

Windows 10 Enterprise (64-bit)
Linux (Kernel 4.5) above

Certification Information

CE, FCC Class, RoHS Compliant

USB

2 x USB 3. 1 (Gen1)
8 x USB 2.0

GPIO

1 x 8bit GPIO

SATA

2 x SATA 3.0 (6 Gb/s)

MIO

1 x SMBus
1 x LPC

Operating Temp.

Standard: 0°C to 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.44lbs(0.2kg)

Power Requirement

Standard Input
ATX: 4.75V~20V, 5Vsb ±5%;
AT: 4.75V~20V

Power Mode

ATX/AT

Dimension (L x W)

84 x 55 mm (3.31 x 2.17)

Ordering Information

ESM-APLM-4200-B2R

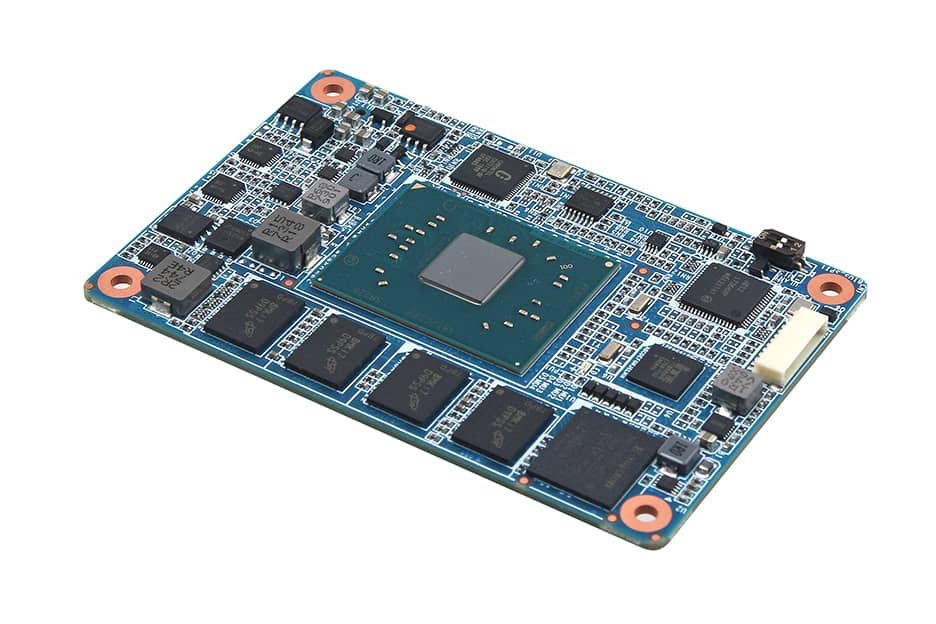

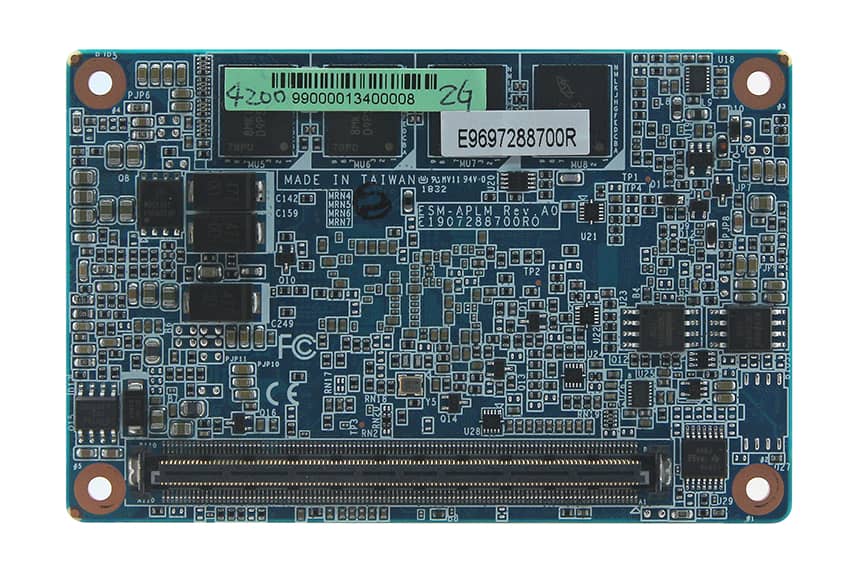

Intel® Pentium®  SoC Processor N4200 Type10 COMe Mini Module

ESM-APLM-N3350-B2R
Intel® Celeron®  SoC Processor N3350 Type10 COMe Mini Module

EEV-EX15-A1R
MiniITX Ev. Board for COMe Type 10 A1

ACC-ESMAPLM-SK-1R
Heatsink for ESM-APLM W/O FAN H=26 mm

ACC-ESMAPLM-SK-2R
Heatsink for ESM-APLM W/O FAN H=26 mm with pad for eMMC

ACC-ESMAPLM-SD-1R
Heatspreader for ESM-APLM W/O FAN H=13 mm

ACC-ESMAPLM-SD-2R
Heatspreader for ESM-APLM W/O FAN H=13 mm with pad for eMMC
