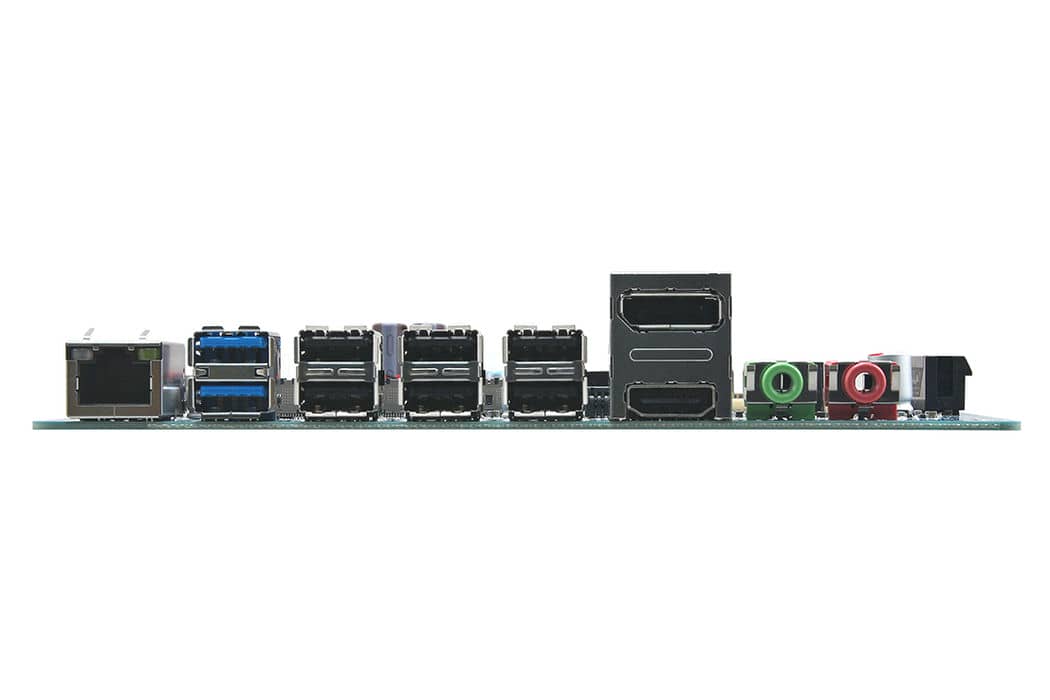

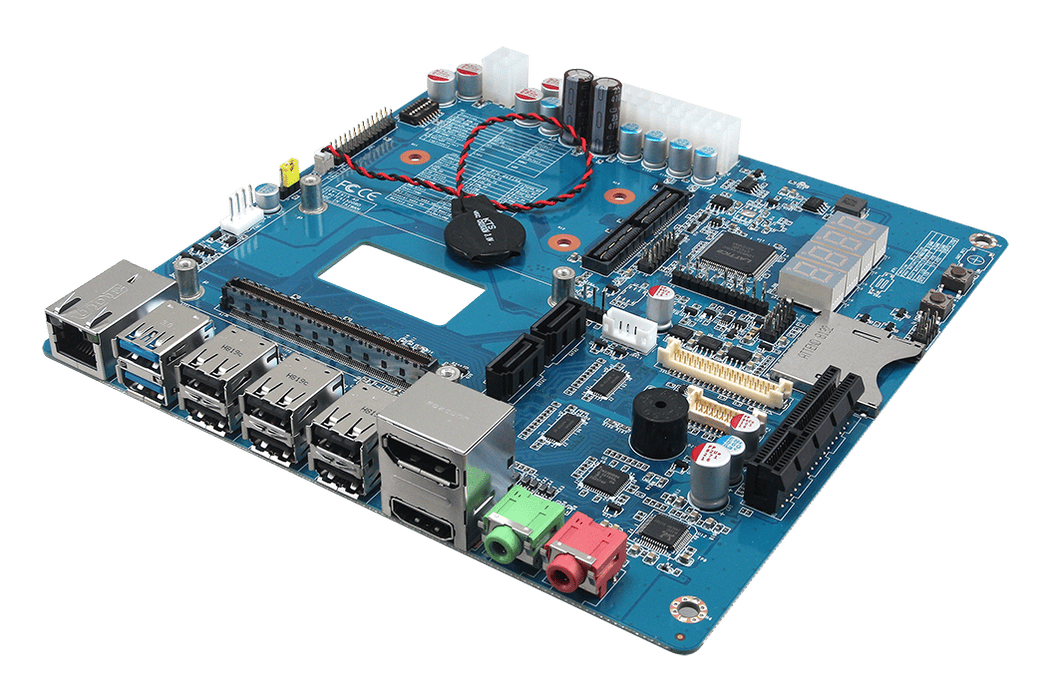

EEV-EX15

Mini ITX COM Express Type10 Carrier Board

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

Feature
Specification
Document

ProductFeatures

Mini ITX COM Express Type 10 Carrier Board
1x PCIe x4
1 x DP 1 x HDMI
COMe Carrier Board Size: 6.7" x 6.7" (170mm x 170mm)
Type 10 Pin-out
Audio Interface Line-out, MIC-in
ATX Power

ProductSpecification

System Information

Processor

Mini ITX COM Express Type 10 Carrier Board

Expansion

Expansion

1 x PCIe x4

Display

Spec. & Resolution

1 x DP
1 x HDMI
Multiple Display

Depends on the COMe module
LVDS

1 x LVDS
1 x eDP

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller
Audio Interface

Line-out. Mic-in

Ethernet

Ethernet Interface

1 x Gigabit Ethernet Connector

Software Support

OS

According to COMe Module Solution

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

2 x USB 3.1
6 x USB 2.0
GPIO

1 x 8-bit GPIO
SATA

2 x SATA II
MIO

1 x SD Card Slot
1 x IET Connector (BOM optional)
1 x Multi-function Pin header

Mechanical & Environmental

Operating Temp.

0 ~ 60°C (32 ~ 140°F)
Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing
Weight

0.46lbs (0.21kg)
Power Requirement

+12V/+5V/5VSB/+3.3V/-12V
Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

Ordering Information

EEV-EX15-B1R
Mini ITX Ev. Board for COMe Type 10 A1 (with 2 expansion boards)

RelatedDocument

Audio (1)
Design Document (2)
Manual (1)

No.

Release Date

Title

Description

Document

Download

2023-11-01

Realtek High Definition Audio Driver for Win10 x64

No.

Release Date

Title

Description

Document

Download

2023-11-01

Schematics forEEV-EX15-A1R (EEV-EX15_A1)

2023-11-01

3D Model for EEV-EX15_step

No.

Release Date

Title

Description

Document

Download

2023-11-01

EEV-EX15 2nd Manual
