Processor

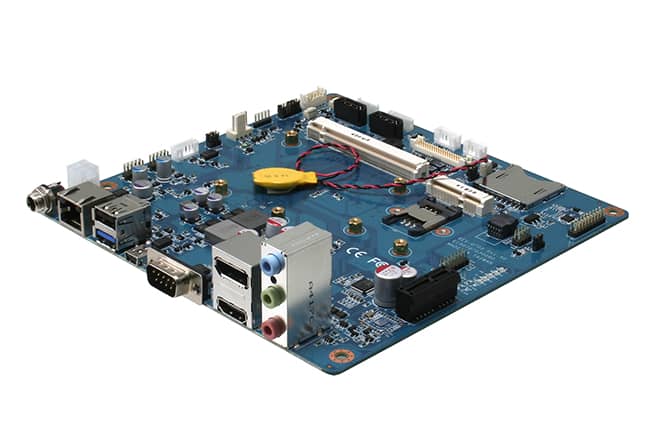

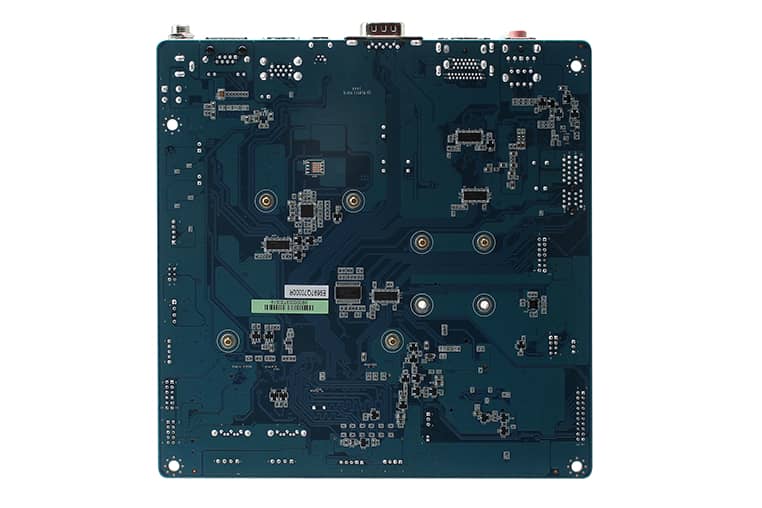

Mini ITX Q7 Module Carrier Board

Expansion

1 x PCIe x1
1 x Mini PCIe x1 with SIM Socket

Spec. & Resolution

1 x HDMI

Multiple Display

Depends on the Q7 module

LVDS

1 x LVDS
1 x eDP

Audio Codec

X86 Platform Realtek ALC892 HD Audio Decoding Controller
ARM Platform WM8962

Audio Interface

Line-out. Mic-in, Lin-in

Ethernet Interface

1 x Gigabit Ethernet Connector

OS

According to COMe Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

1 x OTG (Mini USB OTG)

COM Port

1 x RS232

GPIO

1 x 16-bit GPIO

SATA

2 x SATA III
2 x SATA Power

MIO

1 x CAN Bus
1 x LPC
1 x SPI
1 x JFP (Miscellaneous Setting Connector)
1 x SD socke
Onboard Accelerometer (Freescale MMA8451Q) for G-Sensor

Operating Temp.

-40 ~ 85°C (-40 ~ 185°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.46lbs (0.21kg)

Power Requirement

DC in +12V

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

REV-Q703A1R01
Mini ITX QSeven 2.0 Evaluation baseboard Board, -40 ~ 85°C(For Q7 RQM-IMX6 / EQM-BYT2)

REV-Q703-B1-01R
Mini ITX QSeven 2.1 Evaluation baseboard Board, -40 ~ 85°C (For Q7 EQM-EHL / EQM-APL)
