AVAILABLE

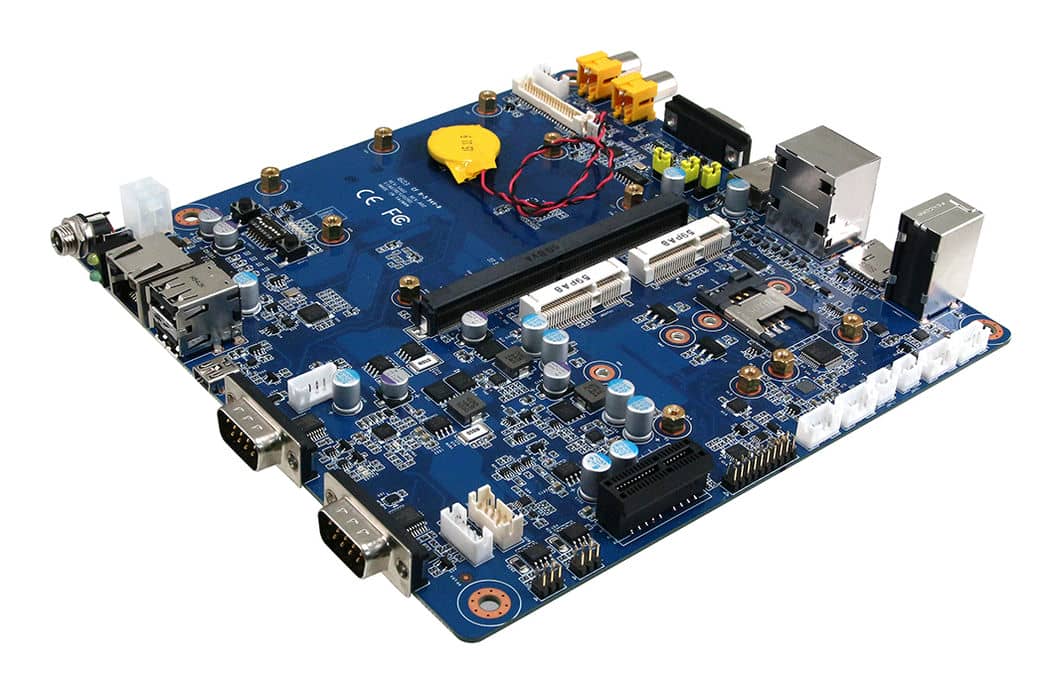

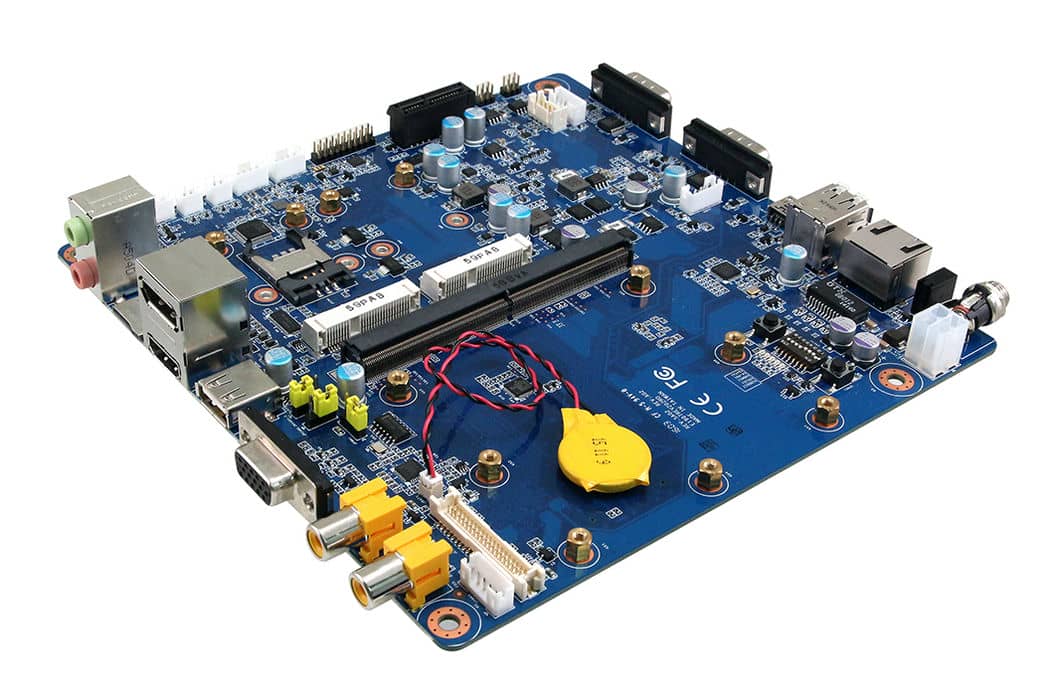

REV-SA02

SMARC specification compliant

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • Feature
  • Specification
  • Document

ProductFeatures

  • SMARC specification compliant
  • Display Port, HDMI, LVDS
  • 2 CVBS
  • SD socket, 1 PCIe x1, 1 Mini-PCIe , SIM Socket
  • Line out , AMIC in , DMIC in , SPK Out

ProductSpecification

Certification

  • Certification Information

    CE, FCC Class B

I/O

  • External I/O Connector

    1 x HDMI
    1 x Mini USB
    1 x Power Button
    1 x Power LED
    2 x RCA
    1 x Reset
    1 x RJ45
    2 x RS232
    1 x SD Slot
    1 x USB 2.0 Type A
    1 x VGA

  • Internal I/O Connector

    2 x CAN
    1 x DMIC
    20 x GPIO
    1 x I2C
    1 x LVDS C
    2 x Mini PCIe
    1 x PCIe
    2 x RS485
    1 x SIM Slot
    1 x Speaker

Mechanical & Environmental

  • Operating Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Storage Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Operating Humidity

    0% ~ 90% Relative Humidity, Non-condensing

  • Power Requirement

    DC 12V

  • Power Mode

    AT

  • Dimension (L x W)

    170 x 170 mm

Ordering Information

  • Ordering Information

    REV-SA0200A1R-00 : REV-SA0200A1R-00

RelatedDocument

  • Design Document (2)
  • Manual (1)
No.
Release Date
Title
Description
Document
Download
2023-11-01
REV-SA02 3D
2023-11-01
REV-SA02 2D
No.
Release Date
Title
Description
Document
Download
2023-11-01
REV-SA02 1st Manual
