REV-SA03

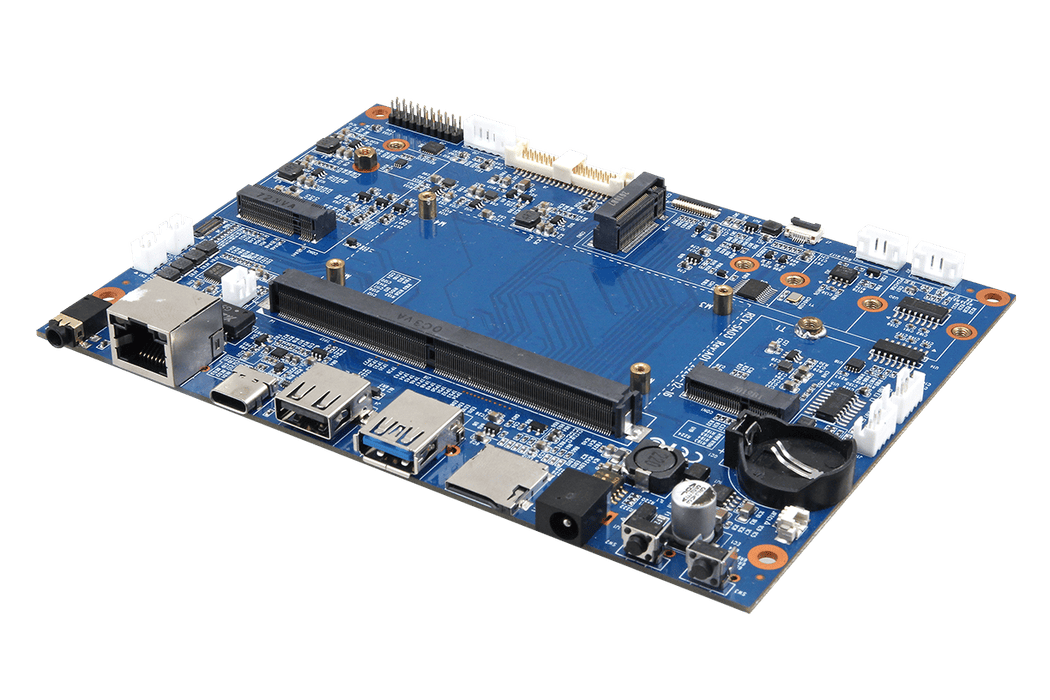

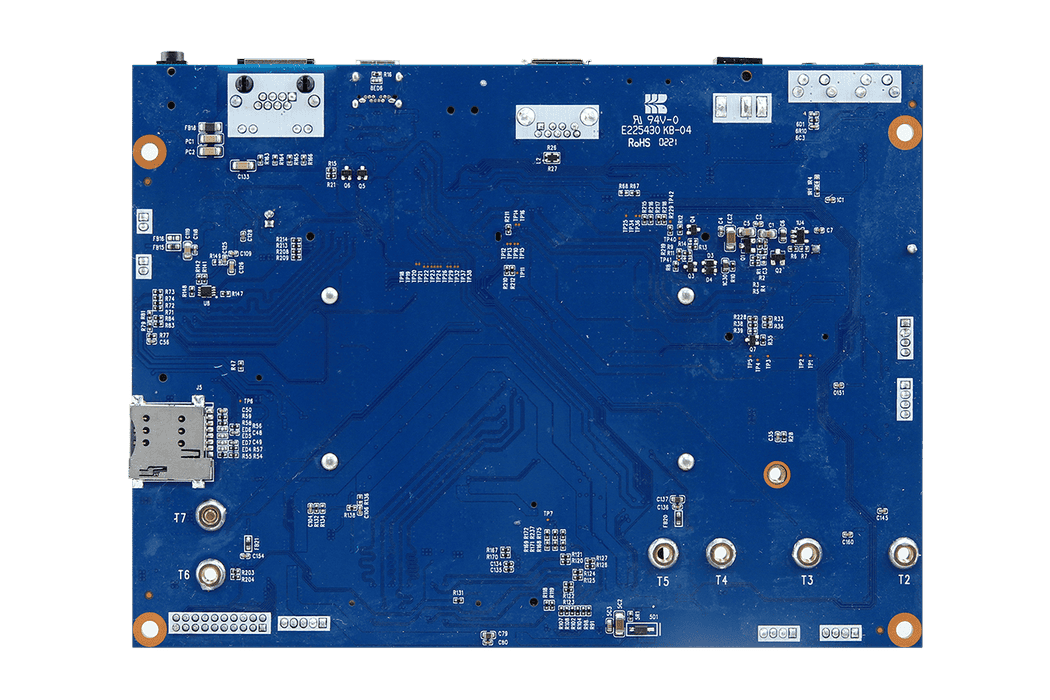

SMARC Module Carrier Board for SMA-X8I

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • SMARC Module Carrier Board for SMA-X8I (SMARC 2.1)
  • Accept Avalue and Other SMARC Compatible
  • Giga Ethernet
  • Speaker (Left/Right Channel) 2P Header
  • GPIO 16 bit
  • Specification
  • Document
  • FAQ

ProductSpecification

Audio

  • Audio Codec

    WM8960

Certification

  • Certification Information

    CE, FCC Class B

I/O

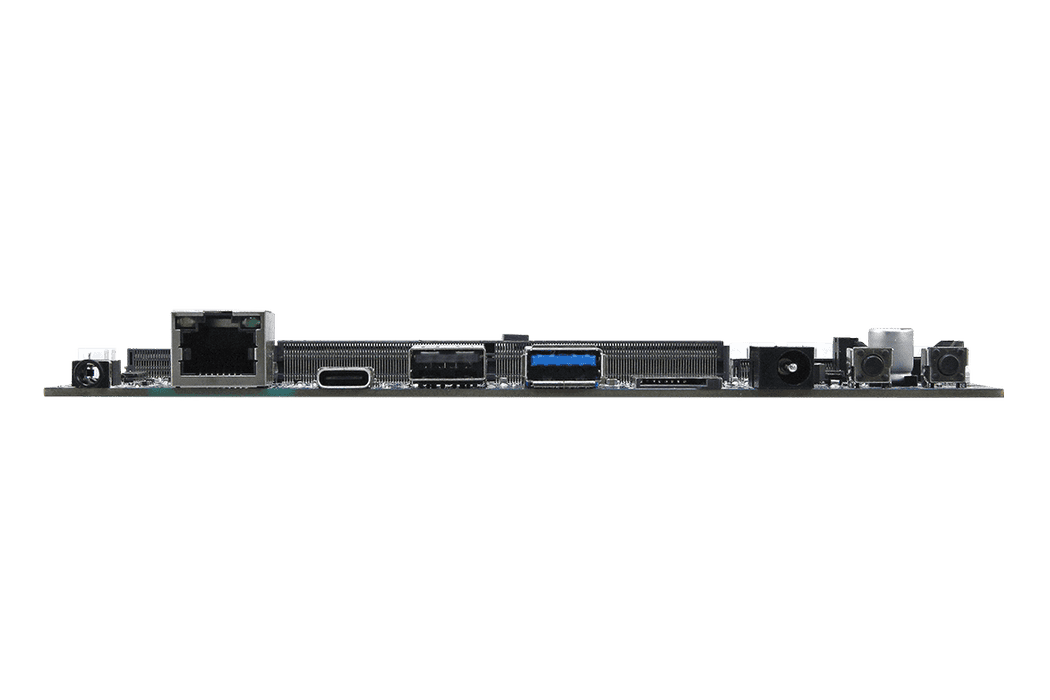

  • External I/O Connector

    1 x DC Jack
    1 x Headphone Jack
    1 x Micro SD Slot
    1 x Power Key
    1 x Reset Key
    1 x SIM Slot
    1 x USB 2.0 Type A
    1 x USB 3.0 Type A
    1 x USB Type C

  • Internal I/O Connector

    1 x BackLight
    1 x CAN
    1 x GPIO
    1 x I2C
    1 x LVDS
    1 x M.2 3042 B-Key
    1 x M.2 2230 E-Key
    1 x MIPI CSI
    1 x MIPI DSI
    1 x RTC-Battery
    1 x Speaker
    2 x UART

Mechanical & Environmental

  • Operating Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Storage Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Operating Humidity

    0% ~ 90% Relative Humidity, Non-condensing

  • Weight

    0.13kg

  • Power Requirement

    DC 12V

  • Power Mode

    AT

  • Dimension (L x W)

    165 x 120 mm

Ordering Information

  • Ordering Information

    REV-SA03-A3-00R : REV-SA03-A3-00R

  • Manual
    1
  • All
    •

    Manual

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    SMA-X8I_REV-SA03 2nd Manual

    RelatedFAQ

    Update Date
    Category
    Title
    More
    2023-10-27
    SoftwareInstallation

    How to flash Yocto 2.5 to SMA-X8I
    2023-10-26
    SoftwareApplication

    To use RU and RW tool check RTC function
    2023-10-26
    SoftwareOS

    How addition SNMP in Windows 10
    2023-09-20
    SoftwareOS

    How to disable screen saver from Linux OS
    2023-09-20
    SoftwareBIOS

    Update BIOS on Windows OS
