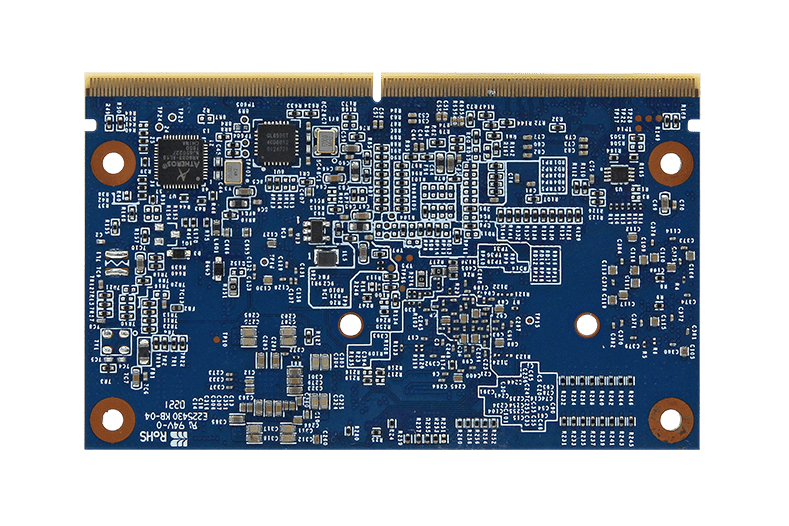

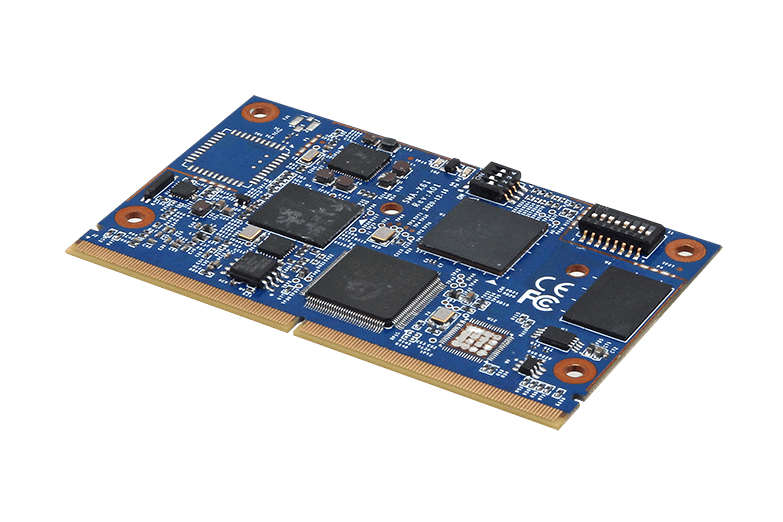

SMA-X8I

NXP IMX8M Mini SMARC Module (SMARC 2.1)

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • Onboard NXP i.MX 8M Mini Processor
  • 2GB DDR
  • 16GB eMMC
  • -40°C ~ 85°C (-40°F ~ 185°F)
  • CE, FCC Class B
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Onboard NXP i.MX 8M Mini Processor

  • System Memory

    2GB DDR

Storage

  • Storage

    16GB eMMC

Software Support

  • OS

    Linux Yocto Version 3.0 Android Version 10

Certification

  • Certification Information

    CE, FCC Class B

I/O

  • External I/O Connector

    USB Port
    4 x USB 2.0 Port

    COM Port
    2 x RX/TX (Ser1/3)
    3 x UART (Ser1/2/3/4)

    Other
    1 x USB1_OTG
    1 x MIPI CSI
    3 x I2C
    1 x I2S
    1 x PCIex1
    1 x GPIO
    2 x ECSPI
    2 x SDIO
    1 x RGMII

Mechanical & Environmental

  • Operating Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Storage Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Operating Humidity

    0% ~ 90% Relative Humidity, Non-condensing

  • Weight

    0.06kg

  • Dimension (L x W)

    82 x 50 mm

Ordering Information

  • Ordering Information

    SMA-X8II4EJ-A03R00 : SMA-X8II4EJ-A03R00

  • Manual
    1
  • All
  • Manual

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    SMA-X8I_REV-SA03 2nd Manual
