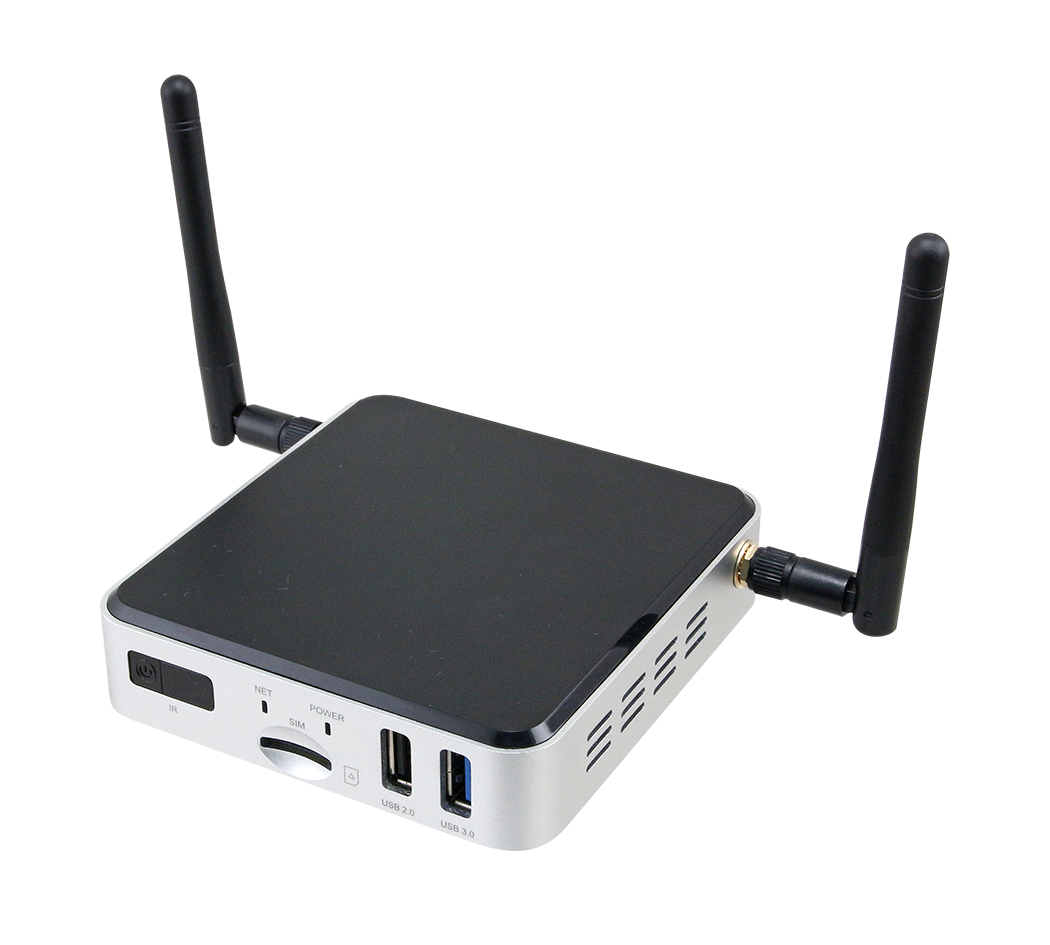

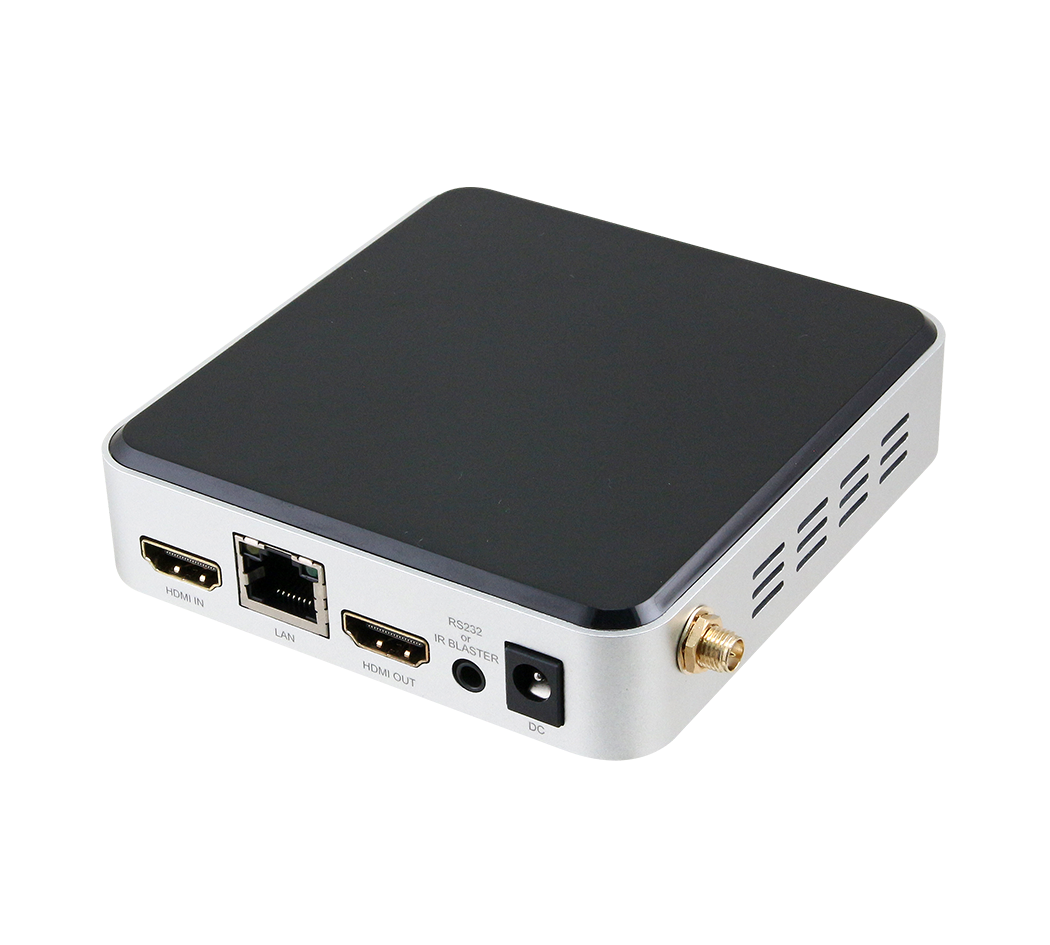

AIB-3566

ARM Mini Industrial Box PC

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • Feature
  • Specification

ProductFeatures

  • Rockchip RK3566 Quad-core ARM Cortex-A55 CPU @ 1.8GHz
  • 2GB LPDDR4/32GB eMMC, 4GB LPDDR4 /64GB eMMC expandable via micro SD card
  • Stunning 4K Ultra HD display through HDMI®

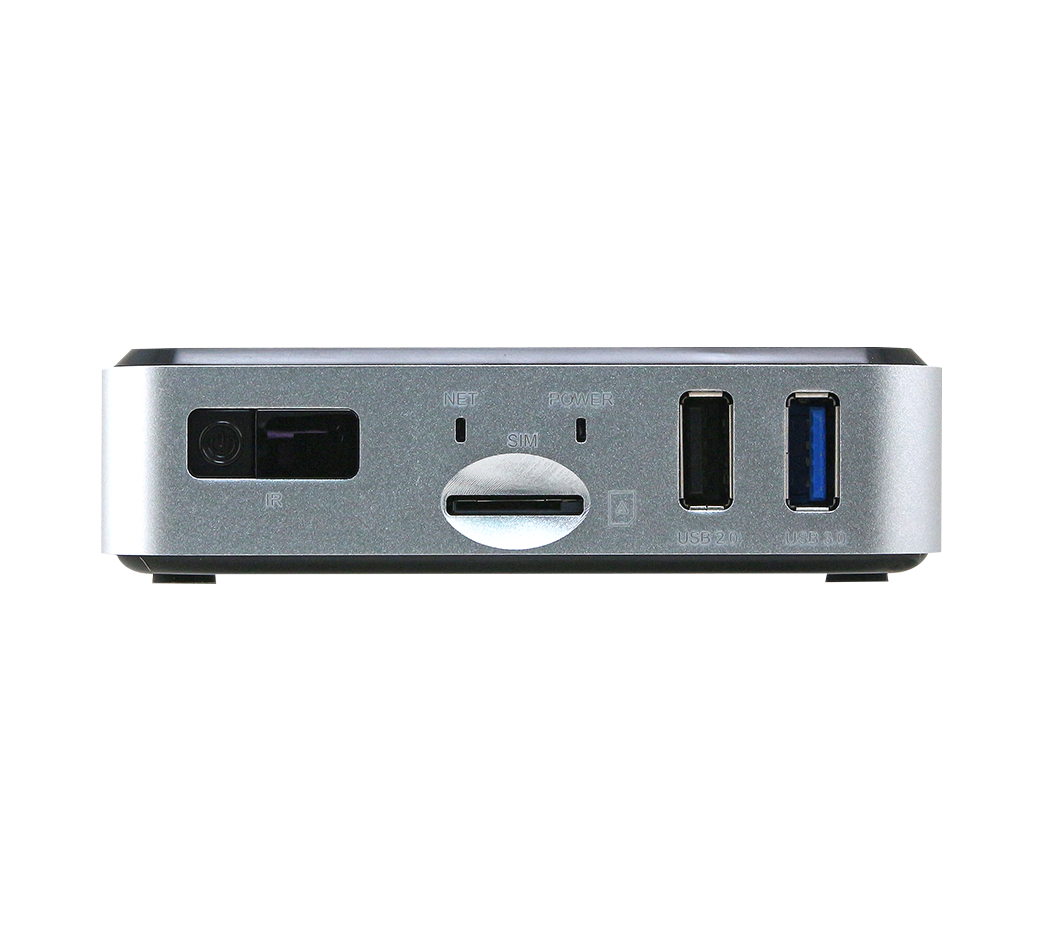

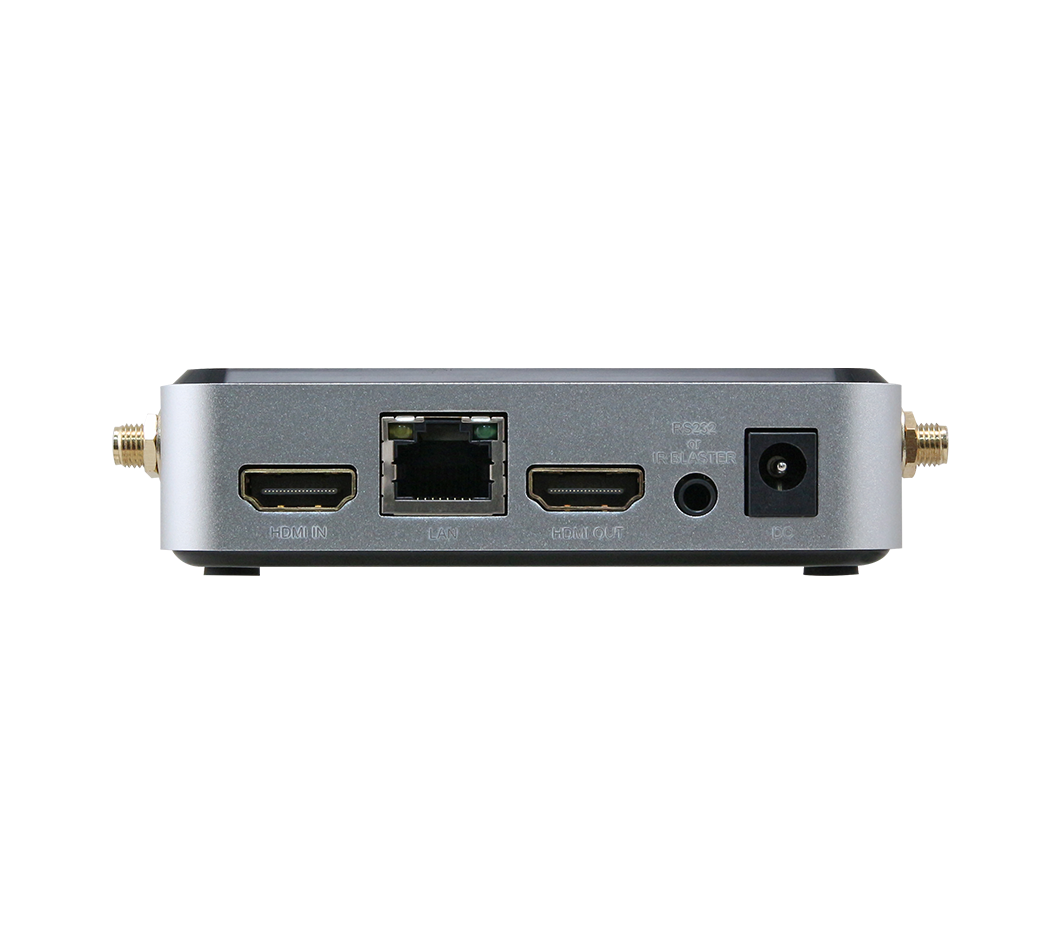

  • Rich I/O: HDMI® In, HDMI® Out, USB3.0, USB2.0, RS232 and IR blaster
  • Seamless connectivity: 4G LTE (Optional), Gigabit LAN, Wi-Fi, Bluetooth
  • Fanless, small form factor, VESA-ready
  • Supports Android 11

ProductSpecification

System Information

  • System Memory

    2GB/4GB LPDDR4 RAM

  • Processor

    Rockchip RK3566

Storage

  • eMMC

    32GB/64GB eMMC

I/O

  • USB Port

    1x USB HOST 3.0
    1x USB OTG 2.0

  • COM Port

    RS232 or IR blaster 1x 3.5mm jack
    (choose one of two, default RS232)

  • Display

    1x HDMI out, resolution up to 4k 60fps
    1x HDMI in, resolution up to 4k 30fps

  • Audio

    HDMI audio out

  • Network

    1x Ethernet RJ45,1000M

  • WI-FI

    2.4G /5G dual-band Wifi 802.11 a/b/g/n/ac

  • 4G/3G

    1x Mini PCIE LTE (built-in) +1x Micro SIM slot

Power Requirement

  • DC Input Voltage

    DC 12V/1.5A (Φ5.5mm / 2.1mm)

Software Support

  • OS

    Android 11.0

Certification

  • Certification Information

    CE, FCC Class B

Mechanical & Environmental

  • Weight

    258g

  • Dimension (W x L x H)

    106 x 100 x 25 mm

  • Operating Humidity

    0% ~ 90% Relative Humidity, Non-condensing

  • Storage Temp.

    -10~60℃

  • Operating Temp.

    -5~55℃
