Avalue Technology - Industrial Computer

Processor

Intel® Core™ i7-14700T Processor (35W, Default)
Intel® Core™ i7-14700 Processor (65W, Project Base)

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x 288-Pin DDR5 4800MHz Dual Channel U-DIMM Socket Supports Up to 64GB

SBC

Micro ATX 244mm x 244mm (RX610H)

H/W Status Monitor

CPU Temperature Monitoring
Voltages Monitoring
CPU Fan Speed Control

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

TPM

Onboard infineon SLB 9670VQ2.0 support TPM2.0

I/O Chipset

nuvoton NCT6126D

BIOS Information

AMI 256Mb UEFI BIOS

Expansion Card

A2000 Ada for opt.

M.2

1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 Share with Slot4 + USB 2.0)

PCIe

1 x Gen PCIe x16 (x16 Physical Black) (Slot 1)
1 x Gen 3 PCIe x1 (x4 Physical Open Ended) (Slot 2)
2 x Gen 3 PCIe x1 (x16 Physical Yellow) (Slot 3 & 4)

Expansion

4 x Full-Height Expansion Slots

CD ROM

1 x 5.25” CD ROM

M.2

1 x M.2 M-Key 2242/2280/22110 NVMe (PCIe x4 + SATA III)

Drive Bay

1 x Internal 2.5” Drive Bay
2 x Internal 3.5” Drive Bay

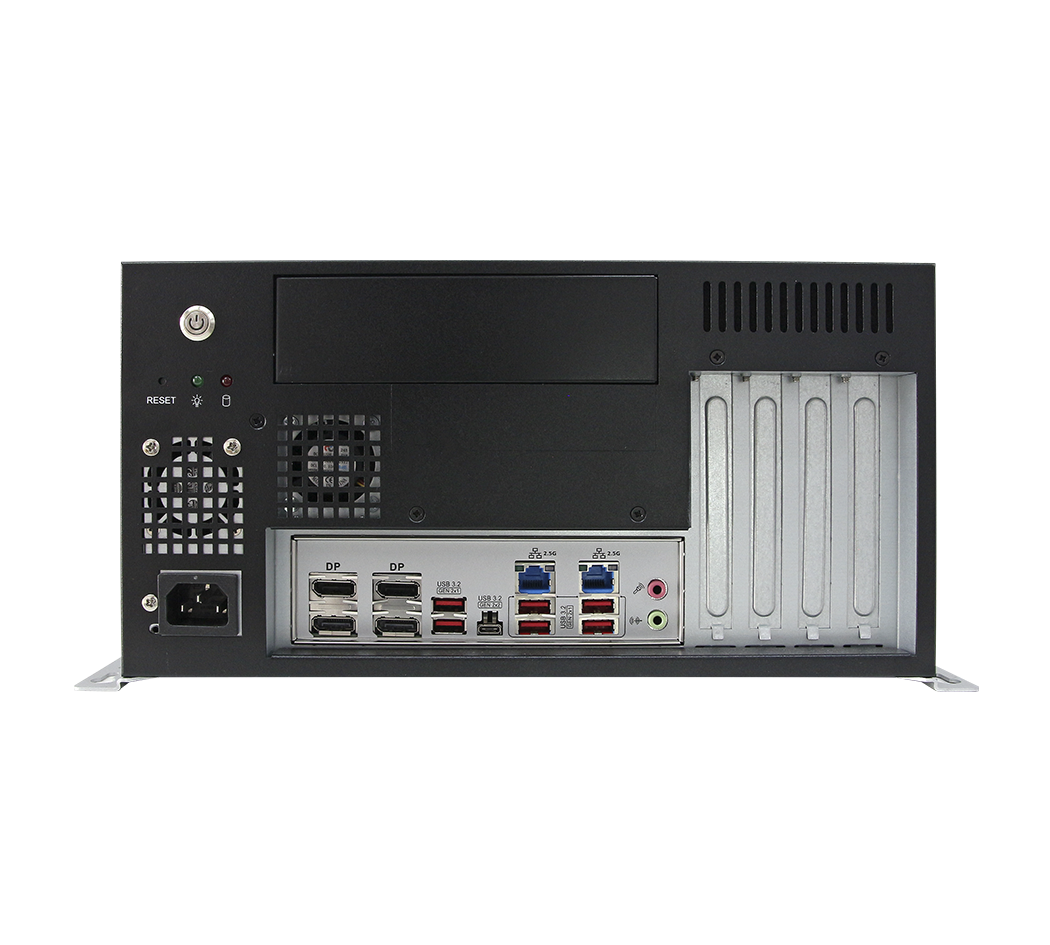

HDMI

1 x HDMI 2.0 4Kx2K@60Hz

LAN Port

1 x Intel® I219V Gigabit Ethernet PHY
1 x Intel® i225LM 2.5 Gigabit Ethernet

DP

2 x DP (DP1.4a): Max: 7680 x 4320@60Hz
(2 x DP++: 1920 x 1080@60Hz)

Power Button

1 x PWR

Audio

Mic-in, Line-out

LED Indicator

1 x PWR LED
1 x HDD Data Access LED

USB

4 x USB 3.2 Gen1x1
2 x USB 2.0

USB

4 x USB 3.2 Gen1x1
2 x USB 2.0

HDMI

1 x HDMI 1.4b 4K@30Hz

LAN Port

1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® i226V 2.5 Gigabit Ethernet

Audio

Mic-in, Line-out

DP

2 x Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz

CPU/System FAN

CPU FAN: 1 x 4P CPU FAN
System FAN: 2 x SYS FAN

Graphic Chipset

Intel® UHD Graphics 770 (Depends on CPU)

Resolution

HDMI 2.0 4Kx2K@60Hz
Dual Mode DisplayPort (DP++) Max: 7680 x 4320@60Hz

Audio Codec

RealTek ALC888S

LAN Chipset

1 x Intel® I219V Gigabit Ethernet PHY
1 x Intel® i226V 2.5 Gigabit Ethernet

ACPI

Single power ATX support S0, S3, S4, S5

Power Mode

AT/ATX (ATX is default setting)

Power Supply Unit

AC to ATX PSU

Voltage Input Spec.

+12V/+5V/5VSB/+3.3V/-12V (ATX power)

Voltage Input Connector

4P ATX connector

DC Output Spec.

ATX power, 300W PSU

OS

Win10, Win11, Linux

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow

Storage Temp.

-30~70C° (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

320 x 371.2 x 164mm

Vibration Test

With SSD : 1 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis

Drop Test

Package drop test
Reference ISTA 1G

Items

1 x BMX-P820A
1 x AC 300W PSU
1 x Screws kit (For M.2, SATA 2.5” cables)
