Avalue Technology - Industrial Computer

Processor

Intel® Core™ i5-1135G7 Processor (TDP 15W) (Default)
Intel® Core™ i3-1115G4 Processor (TDP 15W) (Default)
Intel® Core™ i7-1165G7 Processor (TDP 15W) (Project Based)
Intel® Core™ i7-1185G7E Processor (TDP 15W) (Project Based)
Intel® Core™ i5-1145G7 Processor (TDP 15W) (Project Based)
Intel® Celeron 6305E Processor (TDP 15W) (Project Based)

System Memory

Single 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MHz

BIOS Information

AMI uEFI BIOS, 256Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU temperature monitoring and voltage monitoring

TPM

TPM 2.0

SBC

ECM-TGUC

M.2

1 x M.2 Key-E 2230 (PCIe, USB 2.0)
1 x M.2 Key-M 2280 NVMe (PCIe Gen4 x 4)

M.2

1 x M.2 Key-B 2242 (SATA3)
1 x M.2 Key-M 2280 NVMe (PCIe Gen4 x 4)

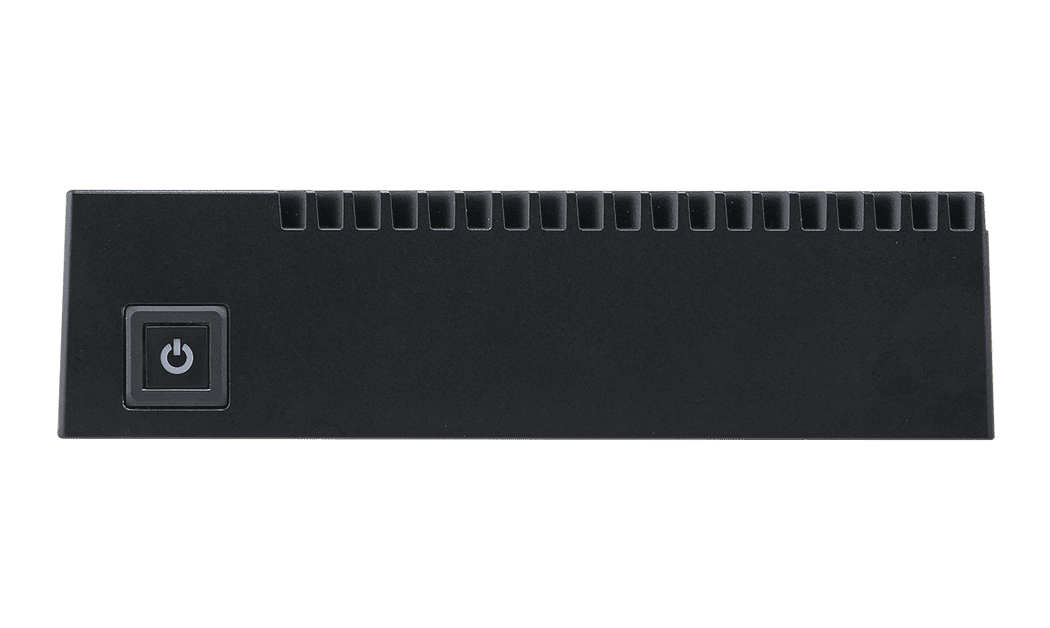

Power Button

1 x Power Button w/LED

COM Port

1 x RS-232/422/485 (Default RS-232)
1 x RS-232

Audio

1 x Line-Out
1 x Mic-In

USB

3 x USB 3.2 Gen.2
3 x USB 2.0

COM Port

1 x RS-232/422/485 (Default RS-232)
1 x RS-232

LED Indicator

1 x Power On/Off
1 x Storage Access

LAN Port

2 x RJ-45

Audio

1 x Line-Out
1 x Mic-In

DP

2 x DP++

Antenna

2 x Antenna Mounting with Dust Protection Cover

AC/DC Input

Lockable DC Jack

Antenna

2 x Antenna Mounting with Dust Protection Cover

Antenna

2 x Antenna Mounting with Dust Protection Cover

Graphic Chipset

Intel® Iris® Xe Graphics (i7-1165G7/ i5-1135G7)
Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115G4)

Resolution

DP++ 1.4: 4096x2304@60Hz

Audio Codec

RealTek ALC888S-VD2-GR

LAN Chipset

Intel® Ethernet Connection I219-LM (1G)
Intel® Ethernet Controller I225-V (2.5G)

Specification

10/100/1000 Gigabit (I219-LM)
10/100/1000/2500 Gigabit (I225-V)

ACPI

Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

Adapter

AC to DC Adapter 60W

OS

Win11 64bits, Win10, Linux

Certification Information

CE, FCC Class A, UKCA

Accessory

1 x AC to DC Adapter, 1 x Wall Mount, 4 x Rubber Foots, 1 x Screw Kit

Operating Temp.

With wide-temp storage: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
With general storage: 0°C ~ 40°C (32°F ~ 122°F) with 0.5m/s air flow

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

188mm x 120mm x 48mm

Weight

835g

Vibration Test

with SSD: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis

Shock Test

IEC 60068-2-27, Half Sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

Mounting Kit

Wall Mount Kit

Ordering Information

11th Gen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor

ACS10-TGU-A1-1R (i3-1115G4)
ACS10-TGU-A1-2R (i5-1135G7)
