BAX-R2UA

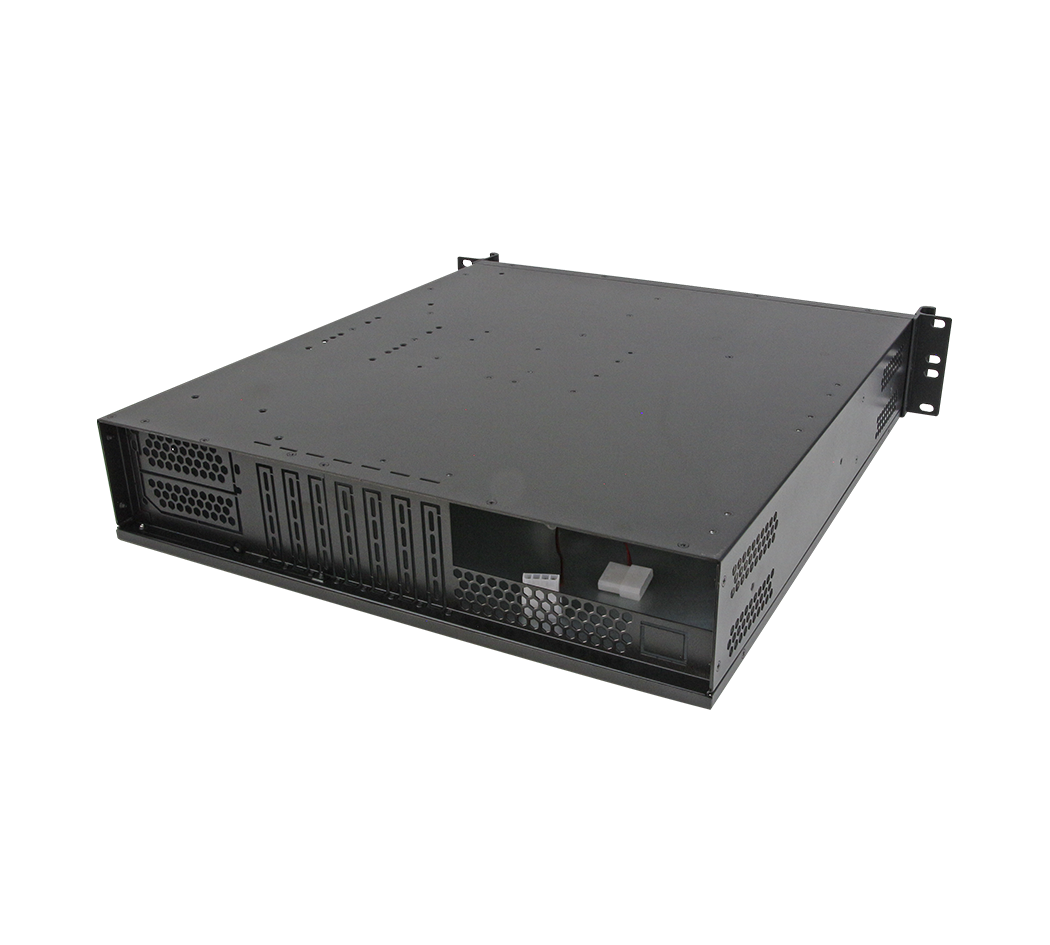

2U Rackmount Chassis

Get a Quote

Comparison

Datasheet

Related Tags

Get a Quote

Comparison

Datasheet

Related Tags

  • Up to 12" (W) x 9.6" (D) ATX compliant MB
  • 6 x Internal 3.5" HDD
  • Front I/O: 1 x USB 2.0
  • 7 x Low profile PCIe slot (Max)
  • Support PS2 ATX/1U or 2U single PSU
  • 490 (D) × 428 (W) × 88.5 (H) mm
  • Net weight: 5.5kg (Chassis only)
  • Specification
  • FAQ

ProductSpecification

System Information

  • Processor

    Depend on MB

  • Platform Controller Hub

    Depend on MB

  • System Memory

    Depend on MB

  • I/O Chipset

    Depend on MB

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec./min.1sec. or 1min. step

  • H/W Status Monitor

    CPU temperature monitoring
    Voltages monitoring
    CPU fan speed control

Expansion

  • PCIe

    1 x Full height PCIe slot (via riser card)

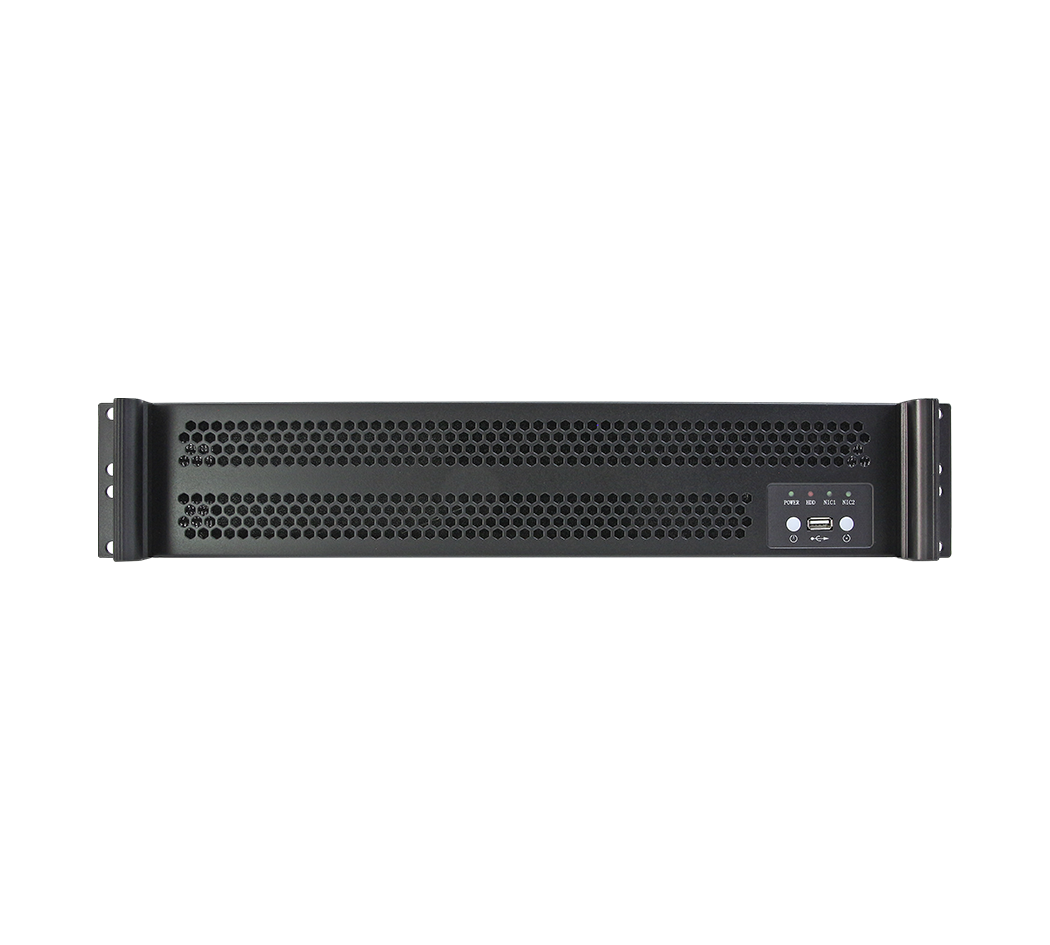

Front I/O

  • USB

    1 x USB 2.0

  • Power Button

    1 x Power Button

  • Reset Button

    1 x Reset Button

  • LED Indicator

    1 x Power status, 1 x HDD, 2 x LAN

  • System Fan

    3 x 8025

Power Requirement

  • Power Supply Unit

    1U/2U Single PSU
    PS2 ATX PSU

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    20°C ~ 75°C (-4°F ~ 167°F)

  • Operating Humidity

    0% ~ 90% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    490.2 (D) x 428 (W) x 88.5 (H) mm

  • Weight

    5.5kg (Net weight, chassis only)

Ordering Information

  • Ordering Information

    BCC-CASE-R2UA-01R：2U Rackmount Chassis
