EMS-TGL-Marine

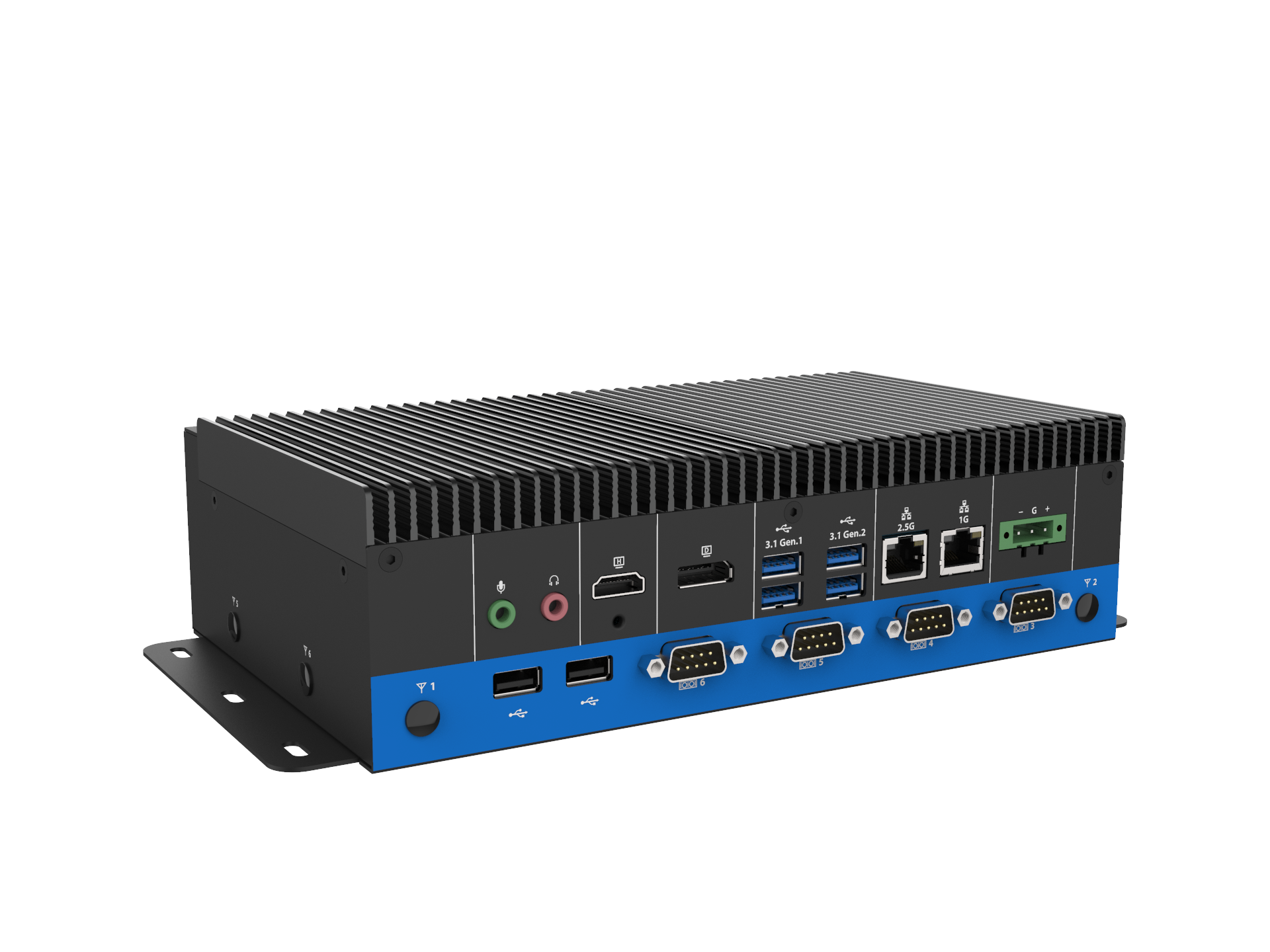

11th Generation Intel® Core™ i7/i5/i3 Marine Fanless Rugged Embedded System

  • Intel® 11th Tiger Lake-U Processor
  • Intel® Iris® Xe/UHD Graphics, Max. Up to 96EU
  • 2-Memory Socket, Max. Up to 64GB DDR4 3200
  • Rich I/O, 4-USB3.2, 2-USB2.0, 1-DP, 1-HDMI, 6-COM (4COM w/2.5KV isolation), 2-LAN, 1-8bit GPIO
  • Wide Operating Temp. -40°C ~ 60°C, Wide Voltage 9~36Vdc
  • dTPM 2.0, vPro, iAMT 15.0
  • CE, FCC Class A, IEC 60945 Certified
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Core™ i7-1185GRE Processor (15W, 12M Cache, up to 2.80 GHz)
    Intel® Core™ i5-1145GRE Processor (15W, 8M Cache, up to 2.60 GHz)
    Intel® Core™ i3-1115GRE Processor (15W, 6M Cache, up to 3.00 GHz)

  • System Memory

    2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200 MT/s

  • I/O Chipset

    EC ITE IT8528E

  • BIOS Information

    AMI uEFI BIOS 256 Mbit SPI Flash ROM

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec.

  • H/W Status Monitor

    CPU & system temperature monitoring and Voltages monitoring

  • TPM

    TPM 2.0

  • iAMT

    iAMT 15.0 (Above i5 CPU)

  • SBC

    EBM-TGLS, EPM-1722, AUX-M07

Expansion

  • M.2

    1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1
    1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)

Storage

  • M.2

    1 x M.2 Key-M 2242/2280, support PCIe Gen. III x 4 (NVMe SSD)
    1 x M.2 Key-B 2242, support SATA (share with expansion slot)

Front I/O

  • Power Button

    1 x Push Button for Power on/off

  • Reset Button

    1 x Push Button for Reset

  • COM Port

    2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)

  • LED Indicator

    1 x Power LED (Blue)
    1 x Storage LED (Yellow)- M.2 B-key SATA
    1 x LTE LED (Green)- M.2 B-key PCIe
    1 x Wifi LED (Green)- M.2 E key

  • Wire-Control Power On/Off

    1 x 2-Pin Terminal Block

  • Digital I/O

    1 x 8-bit GPIO (DB9)

  • Antenna

    2 x Antenna with dust cover

Rear I/O

  • USB

    2 x USB 3.1 Gen.2 (10Gbp/s)
    2 x USB 3.1 Gen.1 (5Gbp/s)
    2 x USB 2.0

  • COM Port

    4 x COM RS232/422/485 w/ 2.5KV Isolation

  • LAN Port

    2 x RJ-45

  • SIM Slot

    1 x Internal SIM slot

  • Audio

    1 x Mic-In
    1 x Line-Out

  • DP

    1 x DP++ 1.4

  • HDMI

    1 x HDMI 2.0b

  • Antenna

    2 x Antenna with dust cover

  • AC/DC Input

    1 x 3-Pin Terminal Block (V+. V-, GND)

Right I/O

  • Antenna

    2 x Antenna with dust cover

Left I/O

  • Antenna

    2 x Antenna with dust cover

Display

  • Graphic Chipset

    Intel® Iris® Xe Graphics (i7-1185GRE/i5-1145GRE)
    Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115GRE)

  • Resolution

    DP++ 1.4: 4096x2304 @ 60Hz
    HDMI 2.0b : Max. resolution 4096x2304 @ 60Hz

Audio

  • Audio Codec

    Realtek ALC888S HD codec

Ethernet

  • LAN Chipset

    1 x Intel® I225-LM
    1 x Intel® I219-LM

  • Specification

    1 x 10/100/1000/2.5G Base-Tx GbE compatible
    1 x 10/100/1000Base-Tx GbE compatible.

Power Requirement

  • Voltage Input Spec.

    9Vdc~36Vdc w/1.5KV Isolation
    TVS component for surge protection
    Reverse current/voltage protection

  • ACPI

    Single power ATX Support S0,S3, S4, S5
    ACPI 5.0 Compliant

  • Power Mode

    AT/ATX (ATX is default setting)

Software Support

  • OS

    Win 10 / Win11 / Linux

Certification

  • Certification Information

    CE, FCC Class A, IEC 60945 Certified

Mechanical & Environmental

  • Operating Temp.

    -40°C ~ 60°C (w/SSD) ambient w/ air flow,

  • Storage Temp.

    -30°C ~ 70°C (-22°F ~ 158°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    240mm x 150mm x 69 mm

  • Weight

    2.4 kg (System)
    3.4 kg (w_Package)

  • Vibration Test

    With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis

  • Shock Test

    With SSD : 10G, IEC 60068-2-27, Half Sine, 11ms

  • IP Rating

    IP 50

  • Mounting Kit

    Wall mount kit (standard)
    DIN RAIL (optional)

Ordering Information

  • Ordering Information

    Intel® 11th Tiger Lake Core™ Processor i7/i5/i3 Marine Fanless Rugged Embedded System

    EMS-TGL-W85-A1-9R (i7-1185GRE)
    EMS-TGL-W45-A1-9R (i5-1145GRE)
    EMS-TGL-W15-A1-9R (i3-1115GRE)
