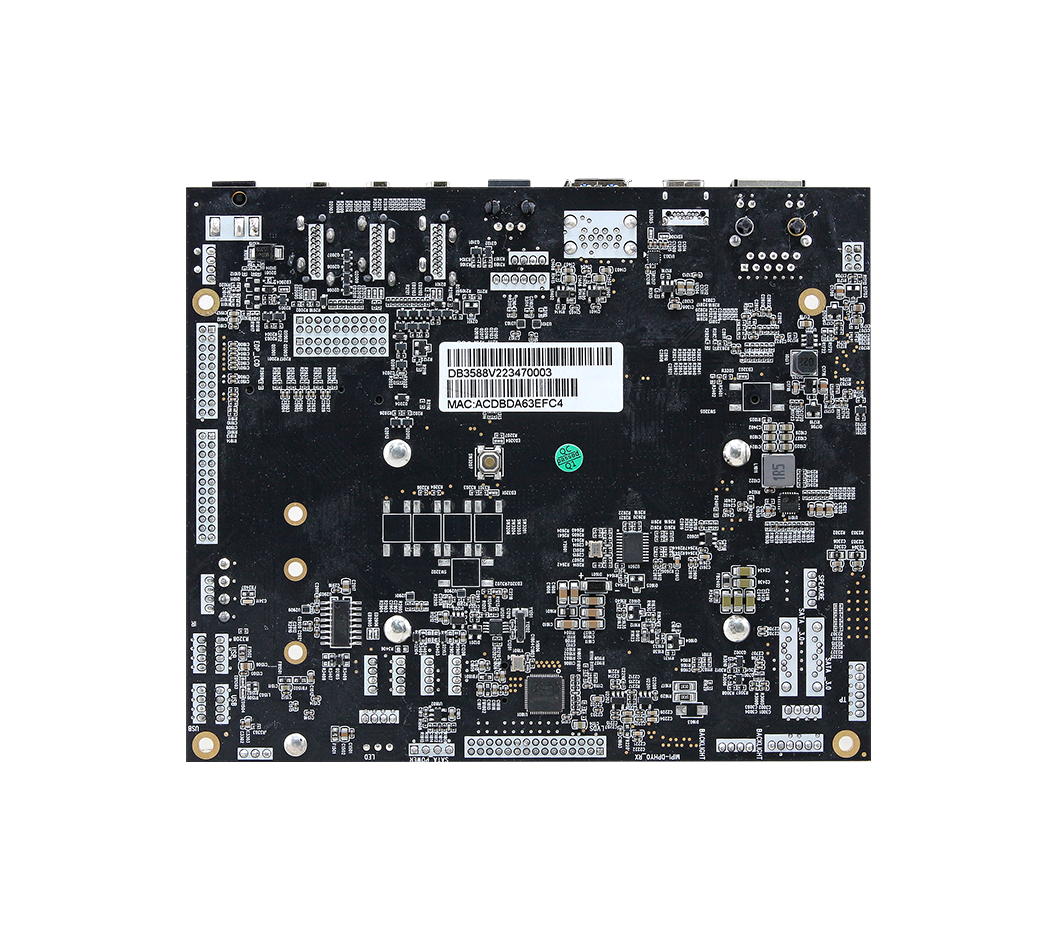

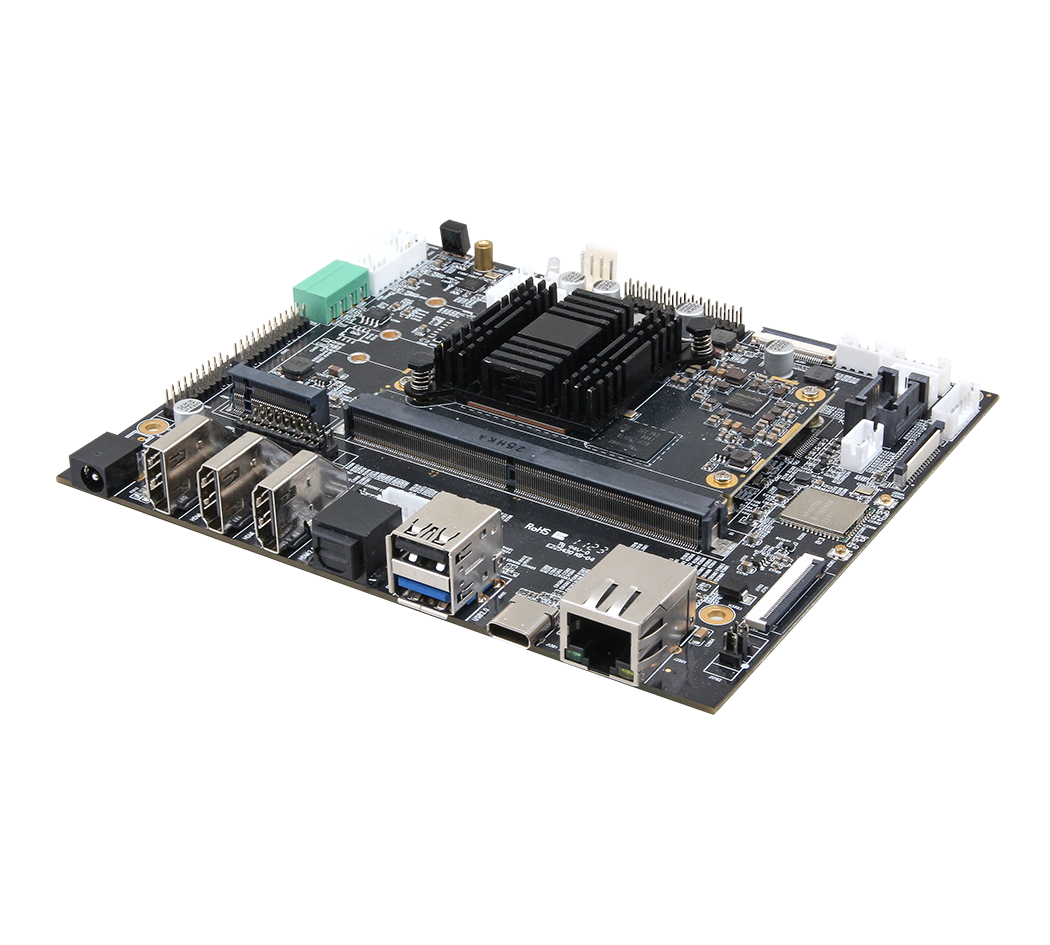

ACP-3588

Octa core Single Board Computer

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

Feature
Specification
Document

ProductFeatures

Rockchip RK3588 quad-core Cortex-A76 and quad-core Cortex-A55 with main frequency up to 2.4GHz. support 4GB LPDDR4 RAM and 32GB eMMC.
With a variety of video output interfaces, used with LVDS / EDP / HDMI/ MIPI for the display screen.
Supports a variety of peripheral interfaces such as M.2/SATA3.0/SPDIF/USB3.0/USB2.0
Supports gigabit cable network port and supports 2.4G / 5G dual-frequency wifi and Bluetooth.
Supports for GPIO / UART / SPI / I2C / RS232 and other extended interfaces.

ProductSpecification

System Information

Processor

RockChip RK3588
System Memory

4GB
LPDDR4 RAM

Storage

Storage

32GB eMMC

Software Support

OS

Android 1 2 .0

Certification

Certification Information

CE, FCC

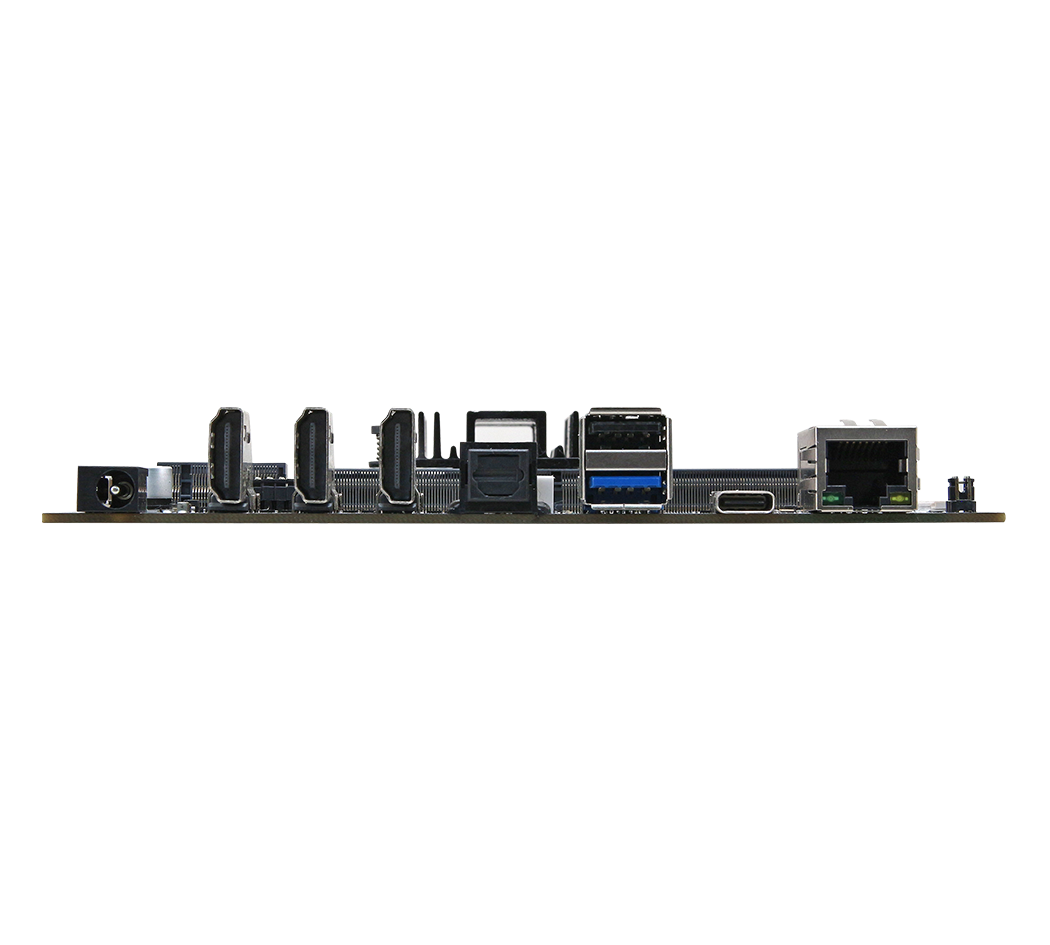

I/O

Expansion

2 x SATA 3.0
1 x M .2 Key M NGFF 75Pin
Communication

2 x 20P pitch 2.0mm GPIO/UART/SPI/I2C
2 x I2C
4 x UART
1 x CAN
Display

2 x HDMI 2.1 out 8Kp60 or 4Kp120
1 x LVDS 8K p 60
1 x EDP 4K p 60
Video Input

1 x MIPI DSI
1 x H DMI in 4K p 60
Audio

1 x 30P, pitch 0.5mm (microphone
1 x SPDIF
left and right stereo sound output 2P row seat
USB Port

1 x USB Host 2.0
1 x USB Host 3.0
1 x USB OTG 2.0 (Type C)
2 x USB Host 2.0（4P pitch 2.0mm 2.0mm）
Network

1 x Ethernet RJ45,1000M
WIFI

2.4G /5G dual-band WiFi 6

Characteristics

Board Structure

Core Board + Carrier Board

Mechanical & Environmental

Weight

TBD
Dimension (L x W)

150 x 20 x 125mm
Storage Temp.

-10 ~ 70℃
Operating Humidity

5% ~ 90% Relative Humidity, Non condensing
Operating Temp.

-5 ~ 65℃
Power Requirement

DC 12 V 2 A

RelatedDocument

Manual (1)

No.

Release Date

Title

Description

Document

Download

2024-04-26

ACP-3588 1st Manual
