NEW

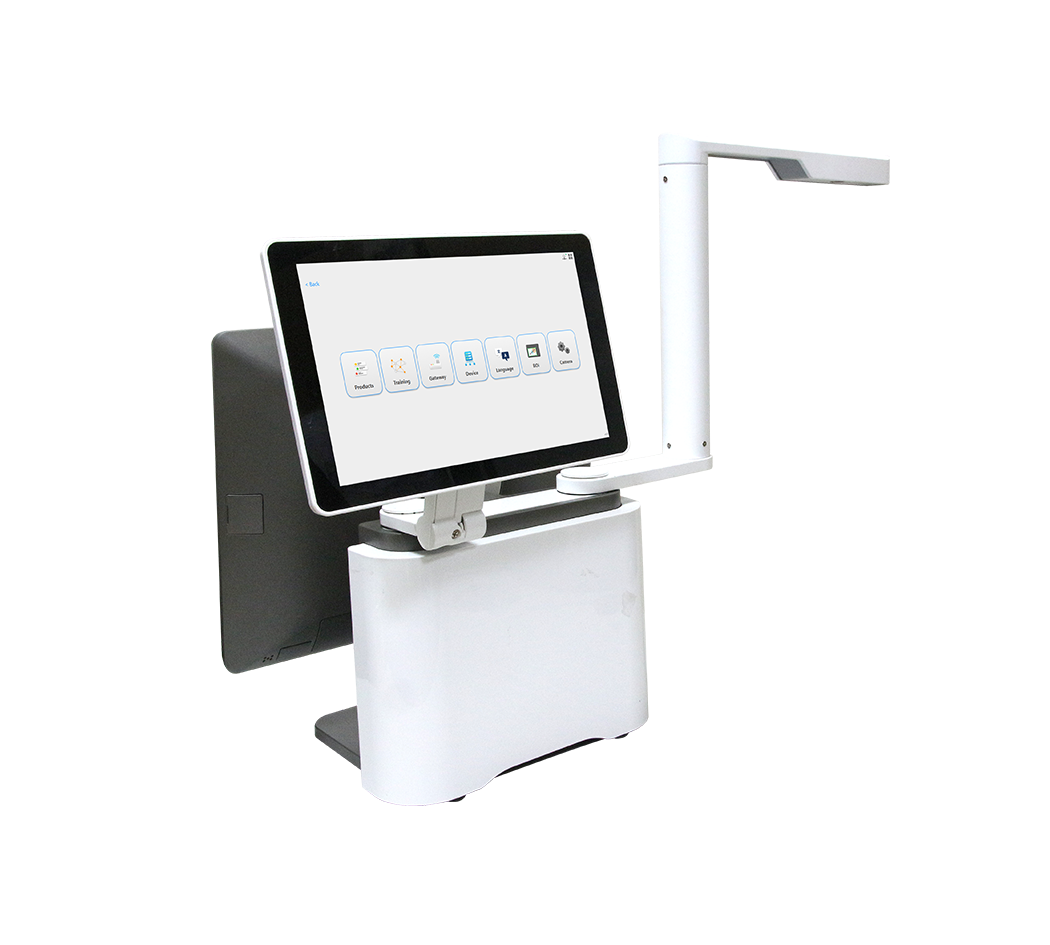

A300

15" Touch Monitor + 10.1" Touch Monitor

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • Feature
  • Specification

ProductFeatures

  • 1 x M.2 Key B 3042/3052/2280 with 1 x PCI-e x1 & 1 x USB 3.0/2.0 signal for 1 x SIM card slot support WWAN+GNSS or Key B 2242 (SATA signal) for storage
  • Superior POS Systems with 6th Gen Intel Processor for RENITY AIR
  • 1 x M.2 Key E 2230 support WiFi module
  • 15" Touch Monitor + 10.1" Touch Monitor
  • Built-in RENITY AIR (AI Object Recognition) software

ProductSpecification

System Information

  • SBC

    Intel® Core™ i5-1235U Processor

Front I/O

  • COM Port

    4 x RS-232 (jumper setting, support DC+0/5/12v, default setting is 0v)

Ethernet

  • LAN Port

    1 x Gigabit Ethernet by RJ-45

Power Requirement

  • DC Input

    1 x Mini Din 4P (DC+19v only)

  • Adapter

    Voltage:+19VDC, Std. 65 watt *PUSB will use 180 watt adapter Voltage:+19VDC, Std. 90 watt
    *PUSB will use 180 watt adapter

Certification

  • Certification Information

    CE, FCC, ROHS

Panel

  • LCD Size

    15″ 4:3 TFT LCD (LED backlight)
    17″ 5:4 TFT LCD (LED backlight)

  • Resolution

    15″ 1024 x 768 (4:3)
    17″ 1280 x 1024 (5:4)

  • Luminance

    400 cd/n2

  • Touch Type

    True Flat Projected Capacitive Technology

Data Communication

  • USB

    3 x USB 2.0
    3 x USB 3.1

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C

  • Storage Temp.

    -20°C ~ 60°C

  • Operating Humidity

    10% ~ 90% RH, non-condensing

  • IP Rating

    IP66 (Front Panel)

  • Dimension (W x L x D)

    357.7 x 325.03 x 196.55 mm

  • Power Requirement

    DC 19V

  • Color

    Main Unit: Space Gray / Black / White

Ordering Information

  • Ordering Information

    A300
