Processor

Intel LGA4710 Socket supports Intel® Xeon® 6 6500P/6700P/6700E series Processor (Max. TDP at 350W )

System Memory

8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-GNRUP

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator
1 x Status indicator
2 x Network activity indicator

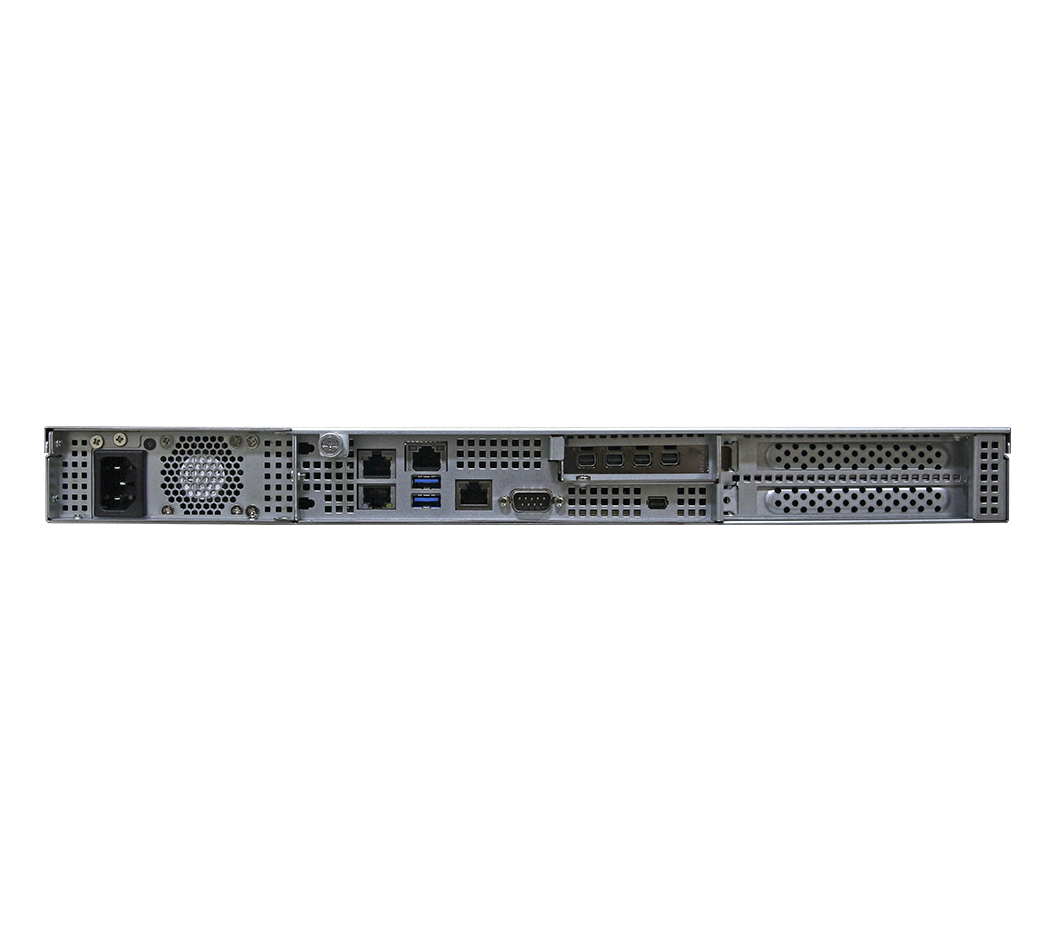

USB

2 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

DP

1 x MiniDP port

RJ-45

4 x RJ45
1 x MGMT port for dedicated IPMI access only
1 x 1GbE port shared with IPMI access
2 x 10GbE ports

Graphic Chipset

AST 2600 BMC controller

Resolution

1 x MiniDP port
1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 850W 1U Single PSU (Default)
- 850W with Input 100-240Vac
1 x 850W Slimtype CRPS (Option)
- 700W with Input 100-240Vac
- 850W with Input 180-240Vac

Expansion

2 x PCIe Gen5 x16 slots via riser card & 1 x PCIe Gen5 x8 slot via riser card

M.2

The following part numbers include 2 x M.2 M-Key Slot to support PCIe 5.0 x4 NVMe SSD
2242/2260/2280/22110 form factor
a) HPS-GNRU1A8-A1-01R
b) HPS-GNRU1AR-A1-01R

2.5 Drive Bay

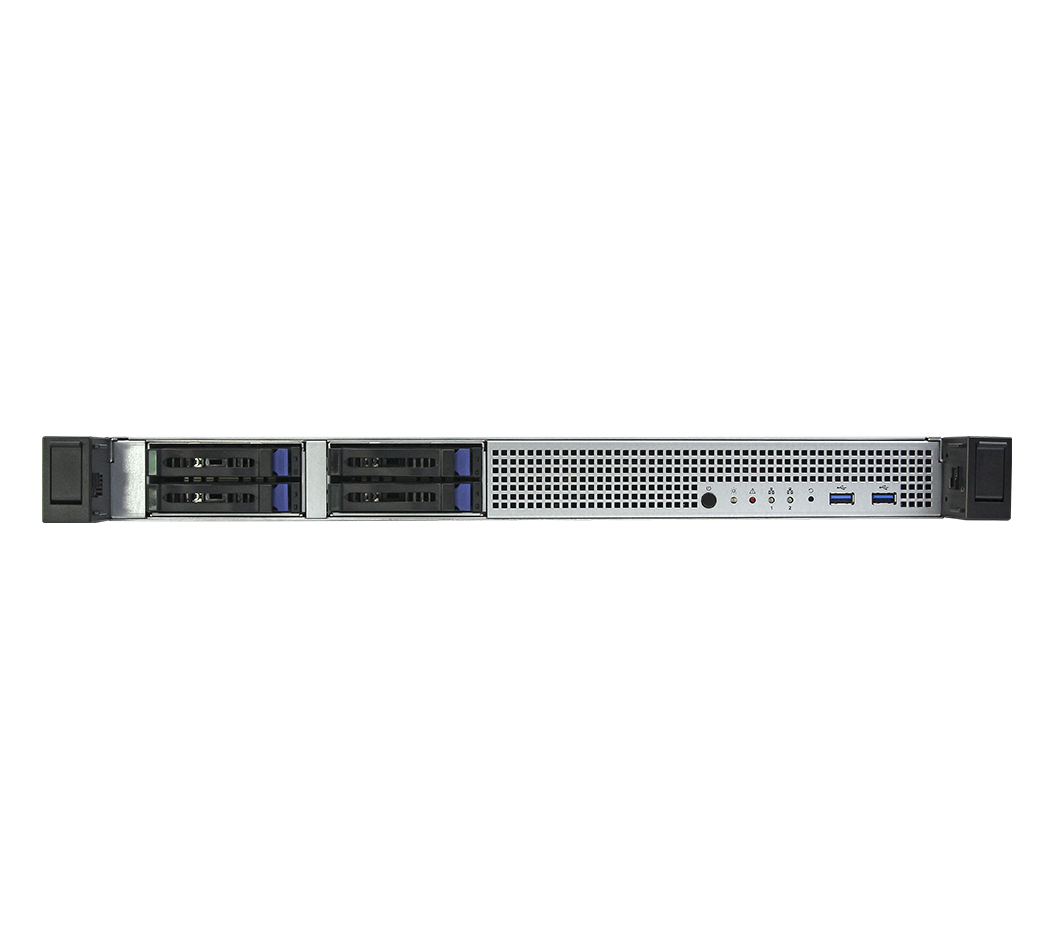

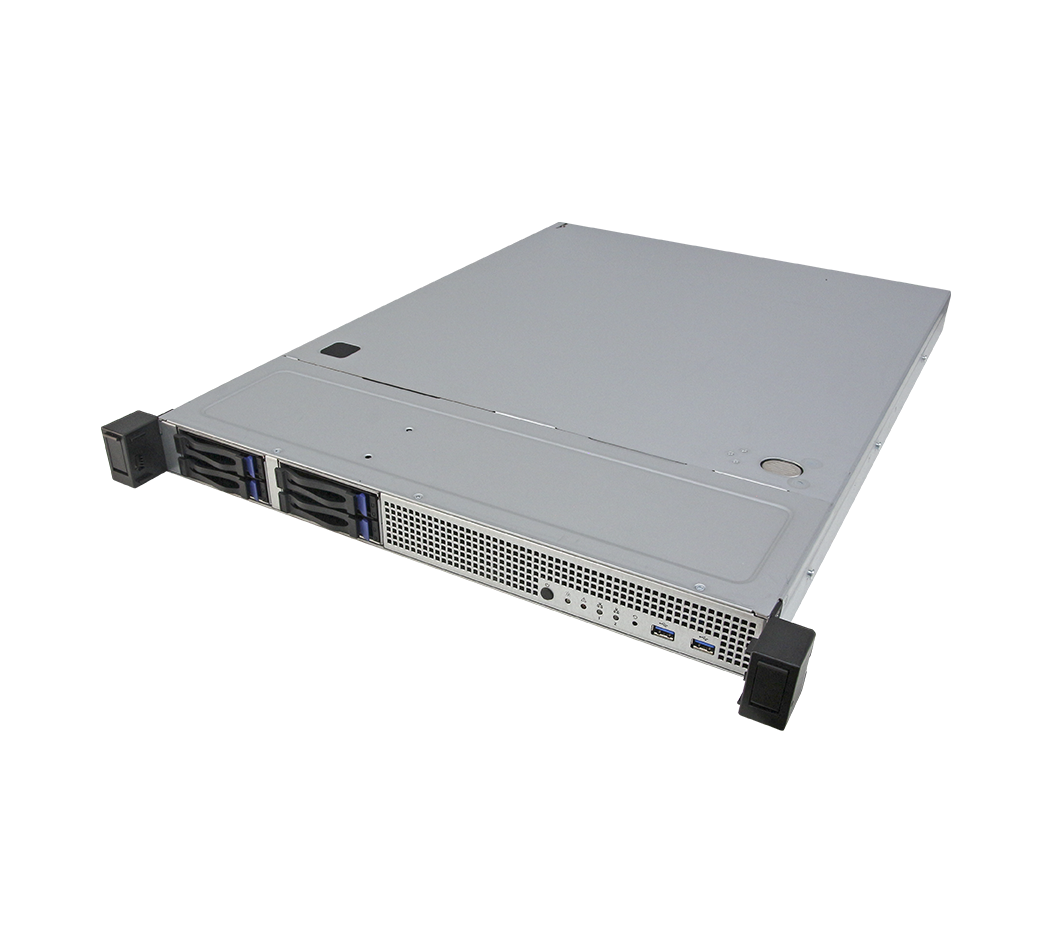

The following part numbers include 4 x 2.5"U.2 NVME SSD front accessible drive bays
a) HPS-GNRU1A8-A1-01R
b) HPS-GNRU1AR-A1-01R

Other Storage Device

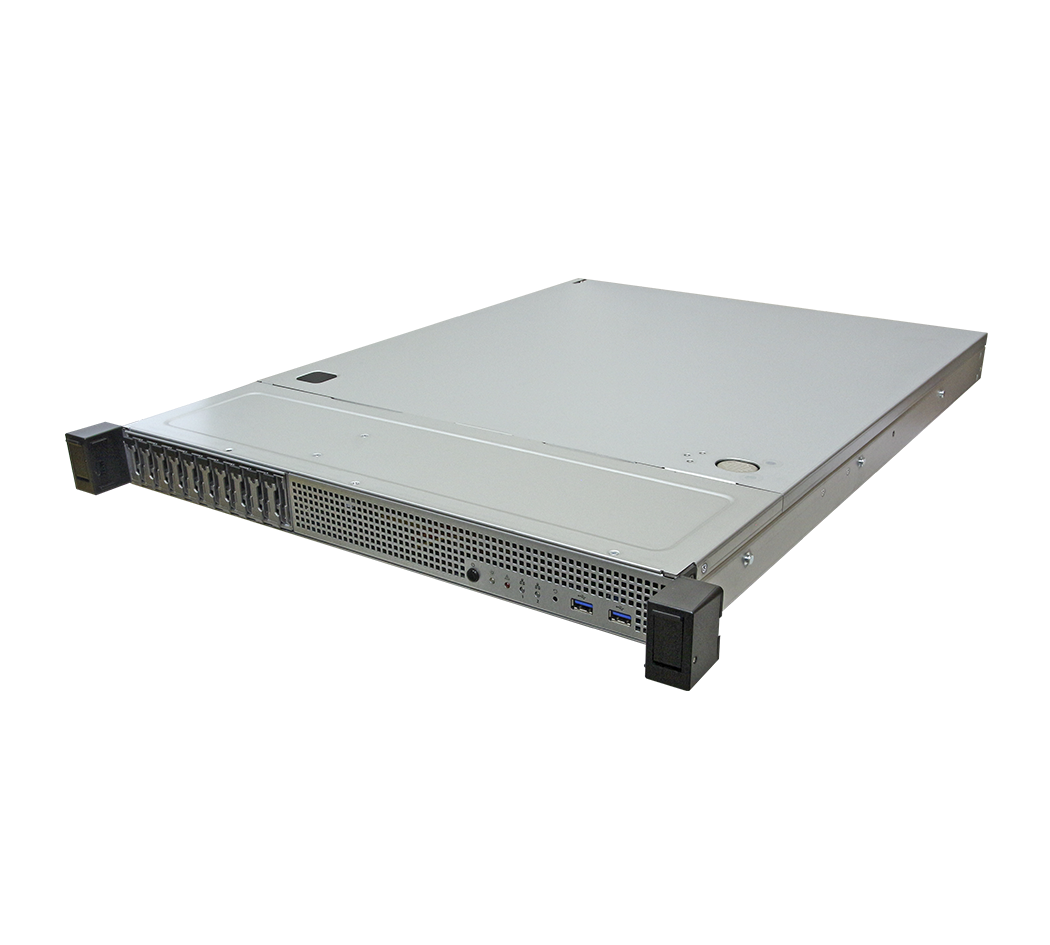

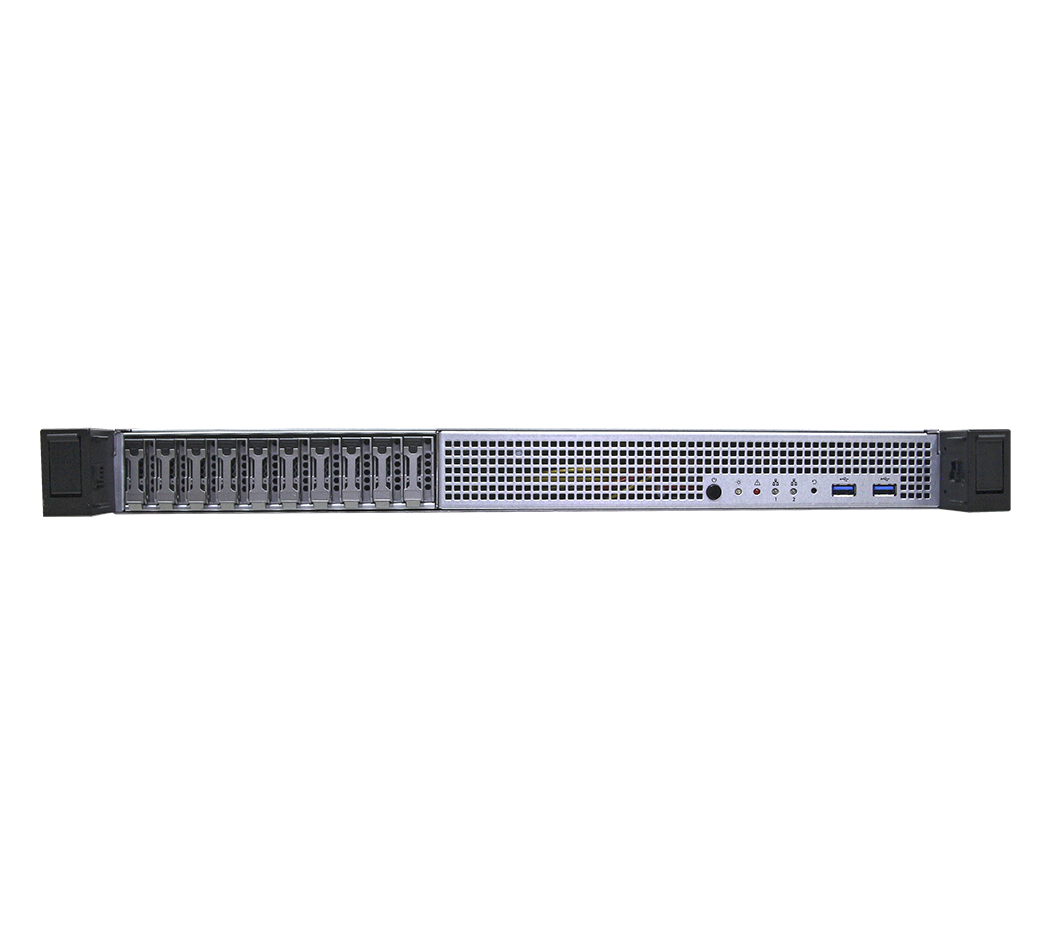

The following part numbers include 10 x E1.S NVMe front accessible drive bays
a) HPS-GNRU1A8-A1R
b) HPS-GNRU1AR-A1R

LAN Chipset

1 x Intel I210AT GbE Ethernet port shared with IPMI management port
1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

4 x RJ45
1 x MGMT port for dedicated IPMI access only
1 x 1GbE port shared with IPMI access
2 x 10GbE ports

Operating Temp.

0 ~ 40°C (L6 system with 850W Single PSU) with Air shroud

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @95% Relative Humidity, Non-condensing

Dimension (W x L x D)

1U Chassis
438mm(W) x 43.5mm(H) x 596.9mm(D)

OS

Windows 11 SAC and LTSC
Windows Server 2025
Ubuntu 24.04 LTS or later
Red Hat Enterprise Linux (RHEL)

Ordering Information

HPS-GNRU1A8-A1R
L6 1U Rackmount w/HPM-GNRUPA/850W/10xE1.S
HPS-GNRU1A8-A1-01R
L6 1U Rackmount w/HPM-GNRUPA/850W/4x2.5"/2xM.2
HPS-GNRU1AR-A1R
L6 1U Rackmount w/HPM-GNRUPA/850W R/10xE1.S
HPS-GNRU1AR-A1-01R
L6 1U Rackmount w/HPM-GNRUPA/850W R/4x2.5"/2xM.2
