Avalue Technology - Industrial Computer

Processor

Rockchip RK3576 Quad core Cortex A53+Quad core Cortex A72

System Memory

Onboard 4GB RAM

Storage

Onboard 32GB eMMC

Graphic Chipset

Mali-G52 MC3 GPU

LAN Chipset

Realtek RTL8211FI-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

12V

DC Input Connector

DC Jack

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz​, Output: 60W (12V@5A)

OS

Android 14

LCD Size

10.1"

Resolution

1280 x 800

Pixel pitch

0.1695(H) x 0.1695(W) mm

Luminance

1,200 cd/m2

Contrast ratio

800

Backlight

50,000 hours

Touch Type

Projective capacitive multi-touch up to 10 points

AG Protection Glass

Anti-Glare AG etchimg

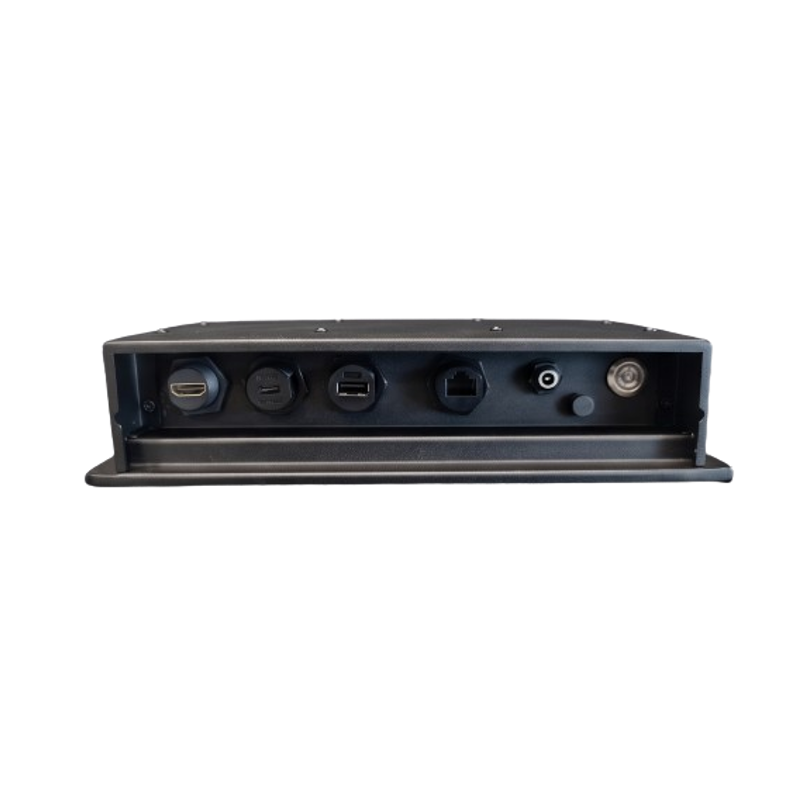

USB Port

1 x USB Type-C
1 x USB Type-A

LAN Port

1 x RJ45

HDMI

1 x HDMI Output

DC input

1 x DC Jack

Other

1 x Air Vents

Expansion

1x M.2 key-M connecter (M.2 SSD)

Control Buttons

Power

WLAN

Optional Wi-Fi 802.11 ax/ac/a/b/g/n

Bluetooth

Optional BT 5.0

Operating Temp.

0°C ~ 50°C (32°F ~ 122°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

20~80%RH

Dimension (W x L x H)

265.9 x 187.5 x 57.9 mm

Weight

1.57 kg

IP Rating

IP65

Power Mode

AT/ATX (AT is default)

Construction - Front

Metal + Powder Coating

Construction - Rear

Metal + Powder Coating

Packing List

1 x RPC-10VX
1 x 12V/5A Adapter
