Avalue Technology - Industrial Computer

Processor

Rockchip RK3576S Quad core cortex A53+Quad core cortex A72

System Memory

Onboard 4GB RAM

Storage

21WA : Onboard 32GB eMMC
24/27/32WA : Onboard 64GB eMMC

Graphic Chipset

Mali-G52 MC3 GPU

Audio Interface

Standard Quad Microphone , Support noise reduction and echo cancellation

Speaker Output

2 x 4Ω/5W

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

21WA : 12V
24/27/32WA : 18V
(or Powered LAN IEEE 802.3bt)

DC Input Connector

DC Jack

Adapter

21WA: Input: 100 ~ 240Vac/ 50 ~ 60Hz​, Output: 48W (12V@4A) AC-DC adapter
24WA: Input: 100 ~ 240Vac/ 50 ~ 60Hz​, Output: 54W (18V@3A) AC-DC adapter
27/32WA: Input: 100 ~ 240Vac/ 50 ~ 60Hz​, Output: 90W (18V@5A) AC-DC adapter
(Alternative: Powered LAN IEEE 802.3bt)

OS

Android 14/16

LCD Size

21WA : 21.5"
24WA : 23.8"
27WA : 27"
32WA : 32"

Display Type

ELED

Resolution

1920 x 1080

Luminance

21/24/27WA : 250 cd/m2
32WA : 300 cd/m2

Contrast ratio

21WA : 3000
24/32WA : 4000
27WA : 1000

Viewing angle

89/89/89/89 (L/R/U/D)

Touch Type

Projective capacitive multi-touch up to 10 points

USB Port

1 x USB 3.0
1 x USB 2.0
1 x USB Type-C (Only Support OTG/ADB)

LAN Port

1 x RJ45

HDMI

1 x HDMI-in

LED Indicator

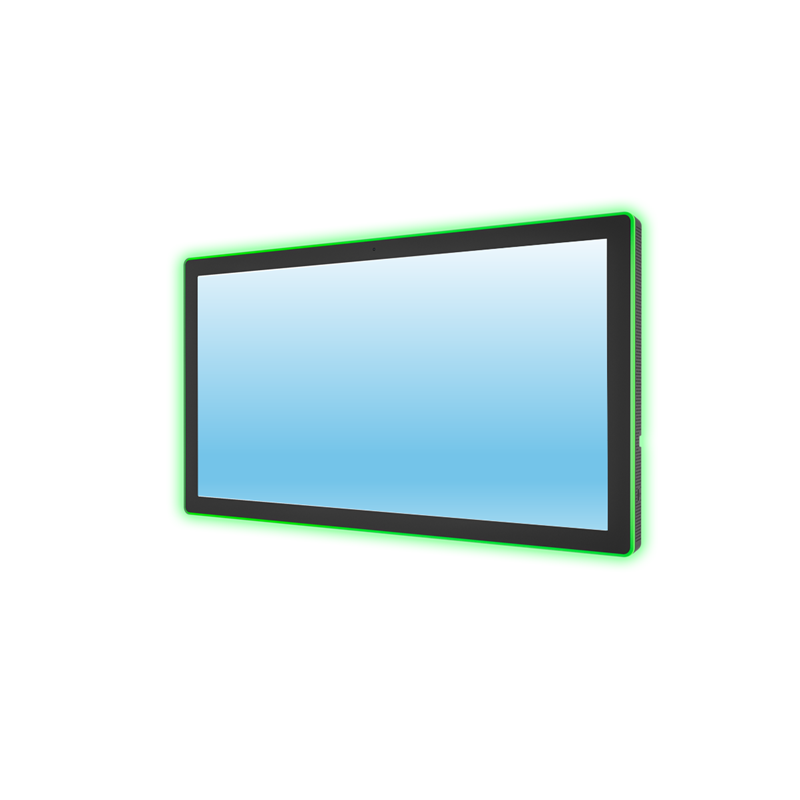

Four-side Interactive LED Halo Light Bar
(Built-in G-sensor for auto-screen rotation)

Control Buttons

Power

NFC

Optional : PN7160(NXP)

Camera

21WA : 5MP
24/27/32WA : 8MP

WLAN

Optional Wi-Fi 802.11b/g/n/a/ac/ax

Bluetooth

Optional BT 5.4

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

20~80%RH

Dimension (W x L x H)

21WA : 520.6 x 312.5 x 27.5 mm
24WA : 578 x 347.8 x 30.5 mm
27WA : 647 x 385.8 x 29.6 mm
32WA : 750.2 x 444.5 x 30.4 mm

Weight

21WA : 3.5kg
24WA : 4.47kg
27WA : 6.4kg
32WA : 7.75kg

Power Mode

AT/ATX (AT is default)

Packing List

1 x RPC-21/24/27/32WA
1 x Wall Mount Kit
1 x 12V/4A, 18V/3A or 18V/5A Adapter
