Processor

14th Generation Meteor Lake Intel® Core™ Ultra 5 125U Processor
(12M Cache, up to 4.30 GHz, with IPU)

System Memory

1 x 262-Pin DDR5 5600MHz SO-DIMM Socket Supports Up to 32GB

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT760AABYX support TPM 2.0

SBC

EMX-MTLP

Expansion

1 x M.2 Key E 2230 support WiFi module

Solid State Drive

2.5" SATA3 SSD

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Speaker Output

2 x 2W

DC Input

+12V~+24V

DC Input Connector

DC Jack with Lock

Power Mode

ATX / AT

OS

Win11 / Linux

Certification Information

CE/ FCC class B/VCCI/UKCA

LCD Size

23.8"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

274.5mm × 274.5mm

Luminance

250 cd/m²

Contrast ratio

3000

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

16ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Controller

EETI EXC81H5680

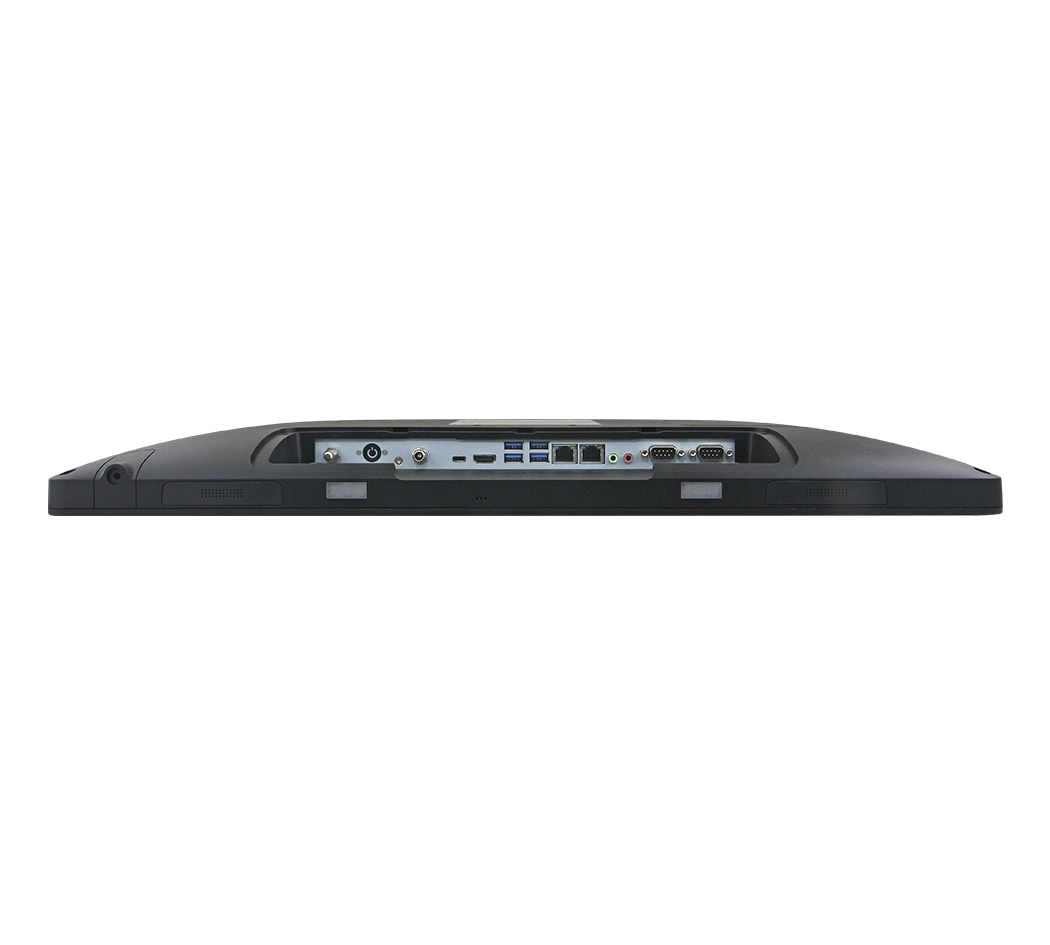

USB Port

3 x USB 3.2 Gen2 (1 from Type C)
2 x USB 3.2 Gen1

LAN Port

1 x Intel® i226LM 2.5 Gigabit Ethernet Controller
1 x Intel® i226V 2.5 Gigabit Ethernet Controller

Wireless LAN Antenna

2 x PCB Antenna

COM Port

2 x RS22/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)

Display Port

1 x HDMI

WLAN

Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210

Bluetooth

Optional Wi-Fi + Bluetooth 5.0 USB Module, Intel Wi-Fi 6E AX210

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

592 x 382 x 49.5mm

Weight

6.2 kg

Vibration Test

1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65

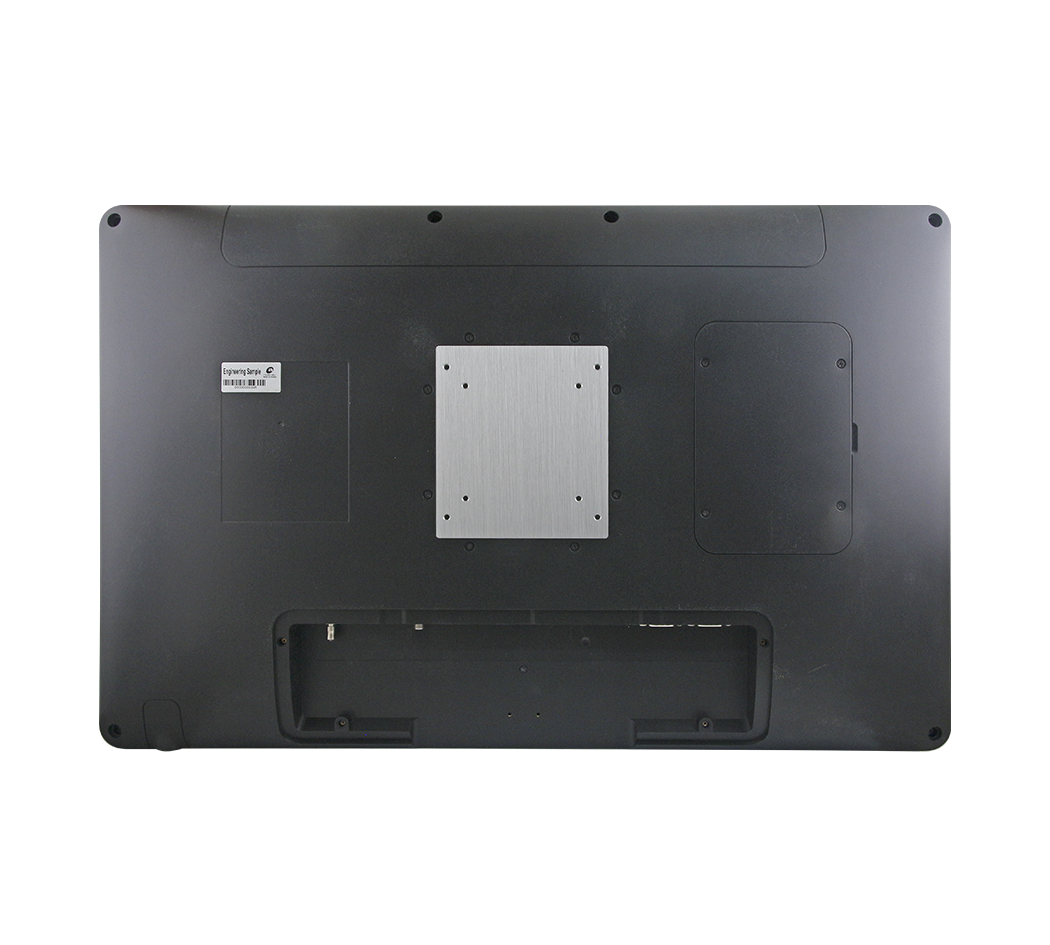

Mounting Kit

VESA 75 x 75, 100 x 100

System Fan

Fanless

Construction - Front

Plastic- black

Construction - Rear

Plastic- black

Adapter

AC/DC adapter 24V/3.75A PWR DIN Plug

Ordering Information

APC-2346-125-A1R
23.8" 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black)
Intel Core Ultre 5 125U/8GB memory/ 5USB/ 2LAN/ 1HDMI/ SPK/ 90W Adapter

E971XAP2340001R
WiFi Kit for APC-2346

E971XAP2340002R
Camera Kit for APC-2346

E971XAP2340003R
NFC Kit for APC-2346

E170203183DR
EU Power Cord

E1702031835R
US Power Cord

E17120318001R
JP Power Cord

E170P060370R
UK Power Cord
