ARC-1538

ProductFeatures

11th Generation Intel® Core™ i3/i5/i7 Processors
One 260-pin SODIMM sockets supports up to 32GB DDR4 3200 SDRAM
4 x USB3.2, 2 x COM
Dual Intel Gigabit LAN
2 x M.2 slots (Key-B 2242/3042/3052, Key-E 2230)
Support Wi-Fi / BT / 4G / 5G (by option)
Wide voltage +12V ~ +24V input, ErP power
Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus
IP65 compliant front panel, IP41 rear box
5-wire resistive touch
TPM 2.0 function
Fanless operation from -10°C ~ 50°C (14°F ~ 122°F)

ProductIntroduction

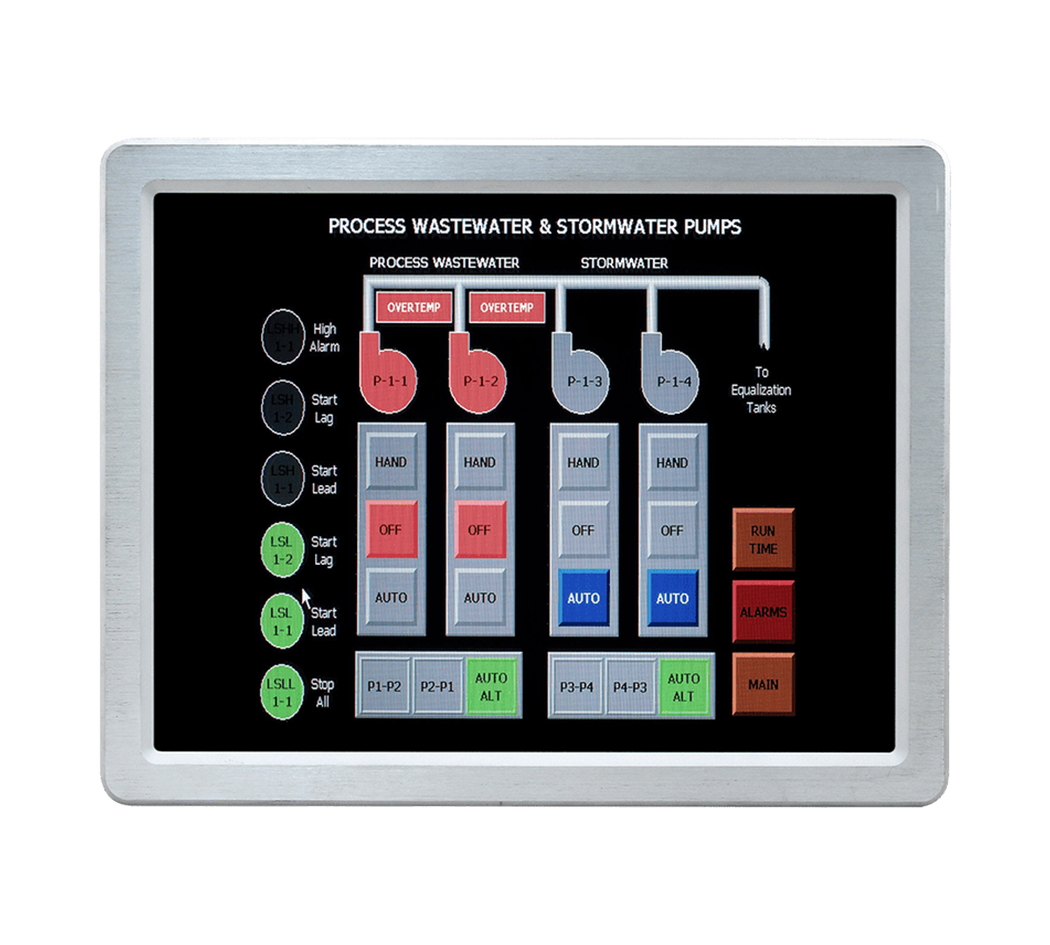

The ARC-1538 is the new generation of Avalue’s ARC series Panel PC. ARC, standing for advance rugged computing, is designed to provide versatile, cost-effective solutions for heavy industrial markets such as factory automation, rehab equipment, KIOSK, HMI. It is fanless with aluminum casing, features with front IP65 and rear IP41 water & dust protection, and is powered by 11th Generation Intel® Core™ i3/i5/i7/Celeron Processors and support up to 32GB DDR4 memory to deliver excellent performance at ultra-low power. Built with optimized PCAP and resistive touchscreen, rich I/O and advanced wireless communication capability by the latest technology – Wi-Fi 6E and Bluetooth 5.2. Besides, it supports 5G module via M.2 key-B 3052 with SIM slot, it is ideal for IoT applications requiring high-speed connectivity, low latency, and low power consumption. ARC series support with Avalue unique IET interface for expand extra I/O such as isolation COM, LAN, GPIO, CAN Bus…etc via various type of IET module easily for I/O upgrade.

ProductSpecification

System Information

Processor

11th Generation Intel® Core™ i3/i5/i7 Processors
Intel® Core™ i3-1115G4E Processor, 6M Cache, up to 3.00 GHz
Intel® Core™ i5-1145G7E Processor, 8M Cache, up to 2.60 GHz
Intel® Core™ i7-1185G7E Processor, 12M Cache, up to 2.80 GHz
System Memory

1 x 260-pin DDR4 3200MHz SO-DIMM up to 32 GB
I/O Chipset

EC ITE IT8528E
Watchdog Timer

H/W reset, 1sec. ~ 65535min. and 1sec. or 1min./step
H/W Status Monitor

Monitoring CPU & system temperature and voltage
TPM

Onboard NuvoTon NPCT754AABYX support TPM 2.0
SBC

ARC-TGL
CPU Cooler (Type)

Fanless heatsink
Other

7 x Knockouts for antenna mounting
*5 from rear cover + 2 from IET bracket

Expansion

Expansion

1 x M.2 Key-B 2242/3042/3052 with SIM card slot
Support SATA3 / PCIe & USB for LTE(4/5G) / NVMe(BOM option for PCIex 2)

1 x M.2 Key-E 2230
Support PCIe/USB/CNVi Wi-Fi/BT module

1 x 80-pin IET interface

Storage

Storage

1 x 2.5" Drive bay (7mm HDD restricted)

Display

Graphic Chipset

Intel® Tiger Lake UP3 SoC integrated graphics
supports optional dual display
Spec. & Resolution

HDMI: Max. Resolution 4096x2160 @ 24Hz (optional by IET module)

Audio

Audio Codec

Realtek ALC888S
Speaker Output

2 x 2W

Ethernet

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® I225LM 2.5 Gigabit Ethernet
Ethernet Interface

Intel® I219LM : 10/100/1000 Base-Tx GbE compatible
Intel® I225LM: 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +24V
DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector
ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS

Win10 / Win11 / Linux

Certification

Certification Information

CE / FCC Class B / VCCI

Panel

LCD Size

15", 4:3
Display Type

XGA
Resolution

1024 x 768
Pixel pitch

0.297mm(H) x 0.297mm(V)
Luminance

500 cd/m2
Contrast ratio

2500
Viewing angle

88 (U), 88 (D), 88 (L), 88 (R)
Response time

16 ms
Backlight

LED
Touch Type

5 wires resistive
Touch Light Transmission

80 %
Touch Controller

Onboard USB touch (PenMount)

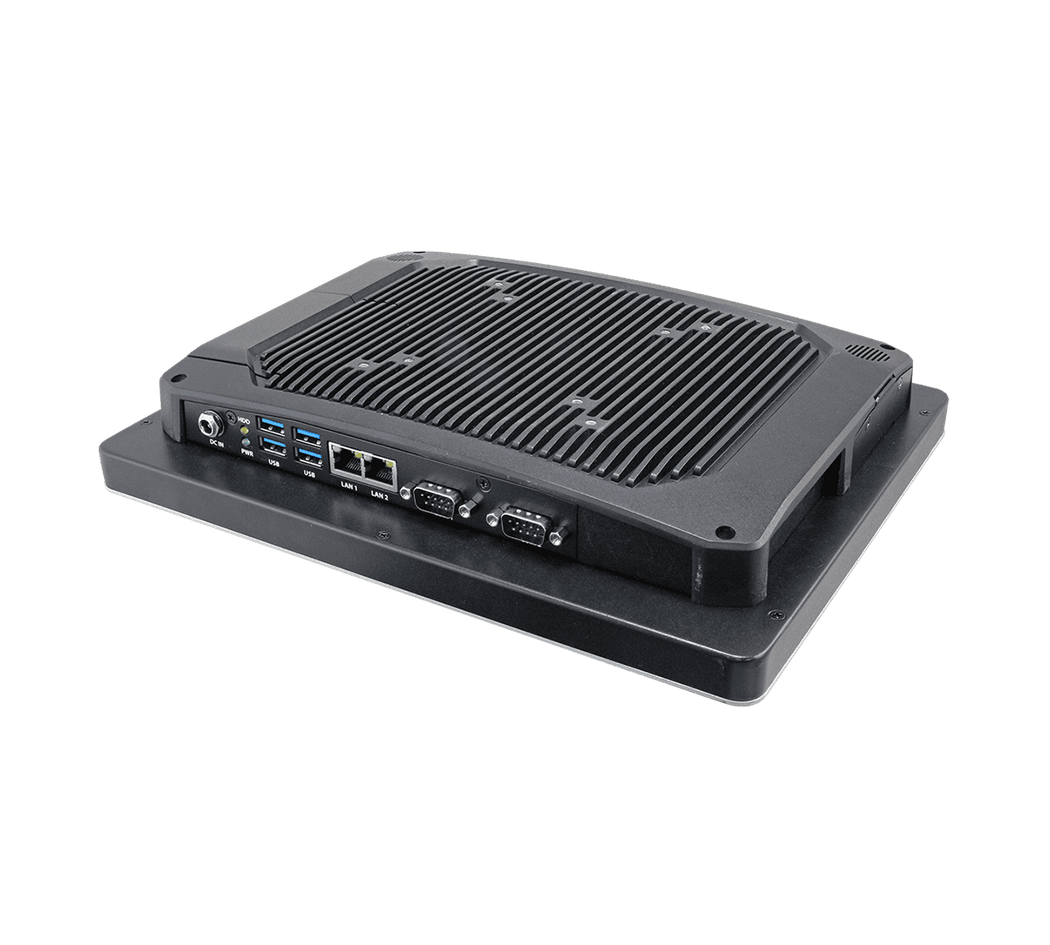

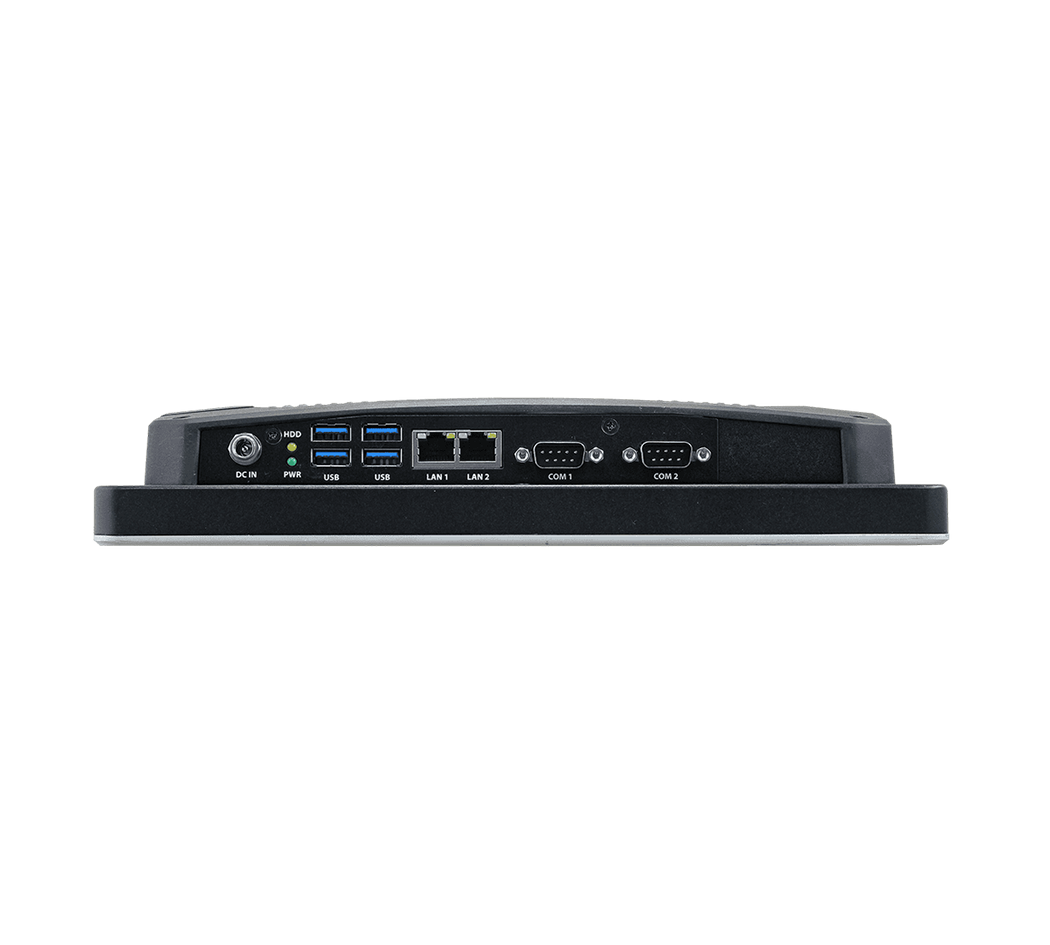

External I/O

USB

4 x USB 3.0
LAN Port

2 x RJ-45
COM Port

1 x RS-232/422/485
1 x RS-232

Internal I/O

SATA

1 x SATA III

System Control

LED Indicator

HDD LED, power LED

Mechanical & Environmental

Operating Temp.

-10°C ~ 50°C (14°F ~ 122°F)
Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity

40°C @ 95% Relative humidity, non-condensing
Dimension (W x L x H)

350.51 x 274.51 x 54.5mm
Weight

3.7 Kg
Vibration Test

With SSD/M.2 SSD : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis
Shock Test

Operating with SSD/M.2 : MIL-STD-810G, method 516.6, procedure I, functional shock=20G
Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed
IP Rating

Front panel IP65
Back cover IP41
Mounting Kit

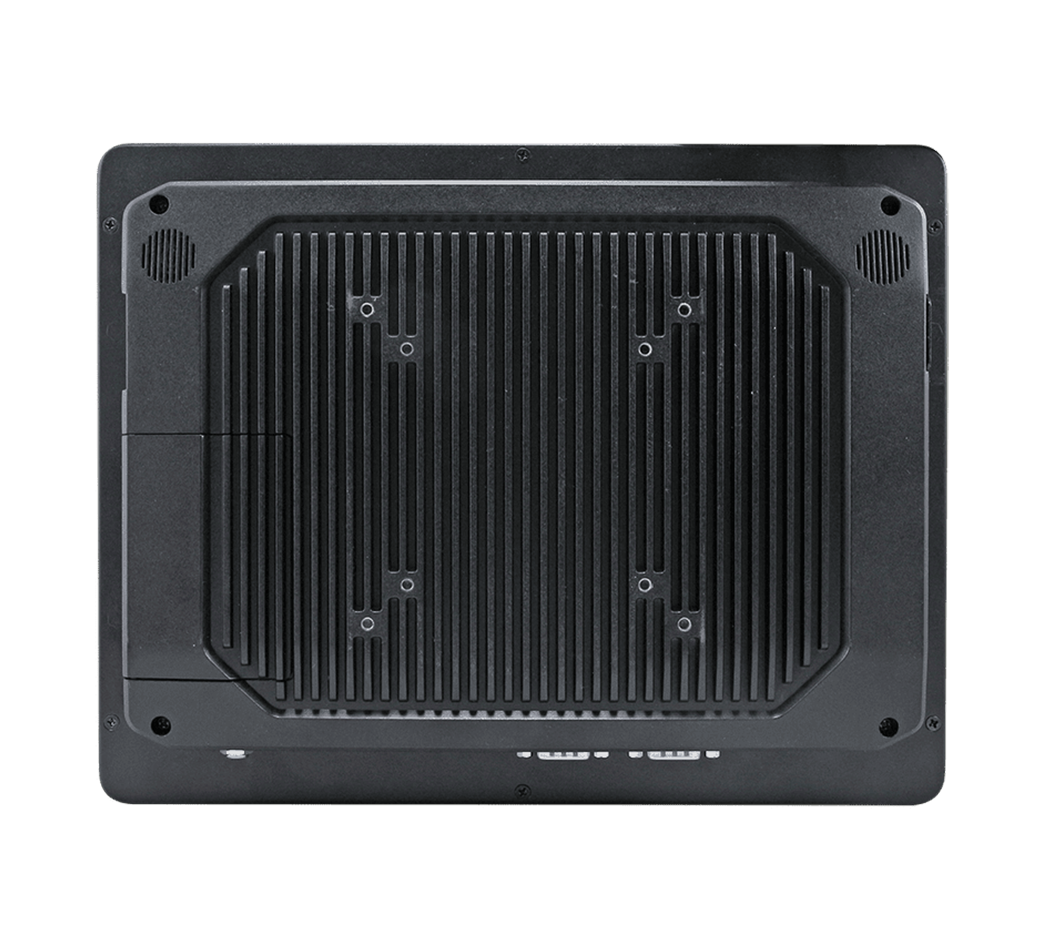

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Power Mode

AT/ATX (ATX is default)
System Fan

Fanless
Construction - Front

Silver aluminum
Construction - Rear

Black die casting

Component

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 72W adapter (19V @ 3.78A adapter) AC-DC adapter

Ordering Information

Ordering Information

ARC-1538-57E-A1R
15" 1024x768 Industrial Touch Panel PC, ErP Design, Resistive Touch(ALC888S)
11th Gen Intel Core i5-1145G7E 1.50 GHz CPU/2GLAN/2COM/4USB/SPK/12~24V input/19V Adapter

ARC-1538-WMB-A1R
15" 1024x768 500nits Industrial Touch Panel PC, ErP Design,/Back panel Mount (ALC888S)
11th Gen Intel Core i5-1145G7E 1.50 GHz CPU/4GB DDR4/2GLAN/2COM/4USB/SPK/12~24V input/19V Adapter

Optional IET Module list:

ACC-ARC-USB-01R
4 x USB 3.0 IET module for ARC-1535/38

ACC-ARC-AUDIO-01R
HDMI + 5.1 CH audio IET module for ARC-1535/38

ACC-ARC-MPCIE-02R
HDMI + MPCIE w/SIM IET module for ARC-1535/38

ACC-ARC-COM-01R
2 x Isolated RS-232 IET module for ARC-1535/38

ACC-ARC-COM-02R
3 x RS-232 IET module for ARC-1535/38

ACC-ARC-COM-03R
2 x RS-232 + USB IET module for ARC-1535/38

ACC-ARC-COM-04R
2 x RS-232 + LAN IET module for ARC-1535/38

ACC-ARC-GPIO-01R
12-bit GPIO + 2-pin CAN bus IET module for ARC-1535/38

ACC-ARC-OBDII-01R
OBDII - CAN bus IET module for ARC-1535/38 (OBDII/EOBD for small vehicle)

ACC-ARC-OBDII-02R
OBDII - CAN bus IET module for ARC-1535/38 (J1939J1708 for large vehicle)

ACC-ARC-OBDII-03R
OBDII - CAN bus IET module for ARC-1535/38 (ISO15765-4 for special large vehicle)

E1702031835R
USA Power Cord

E170203183DR
EU Power Cord

E170203183BR
Japan Power Cord

E170203183ER
UK Power Cord

E1702031800R
Australia Power Cord
