AVAILABLE

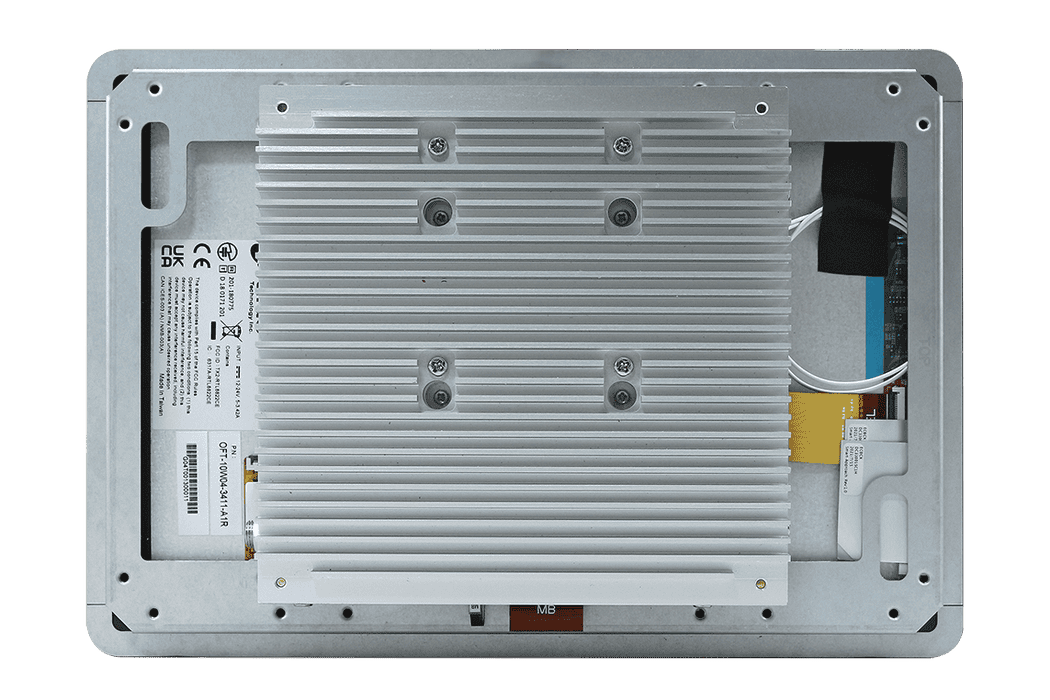

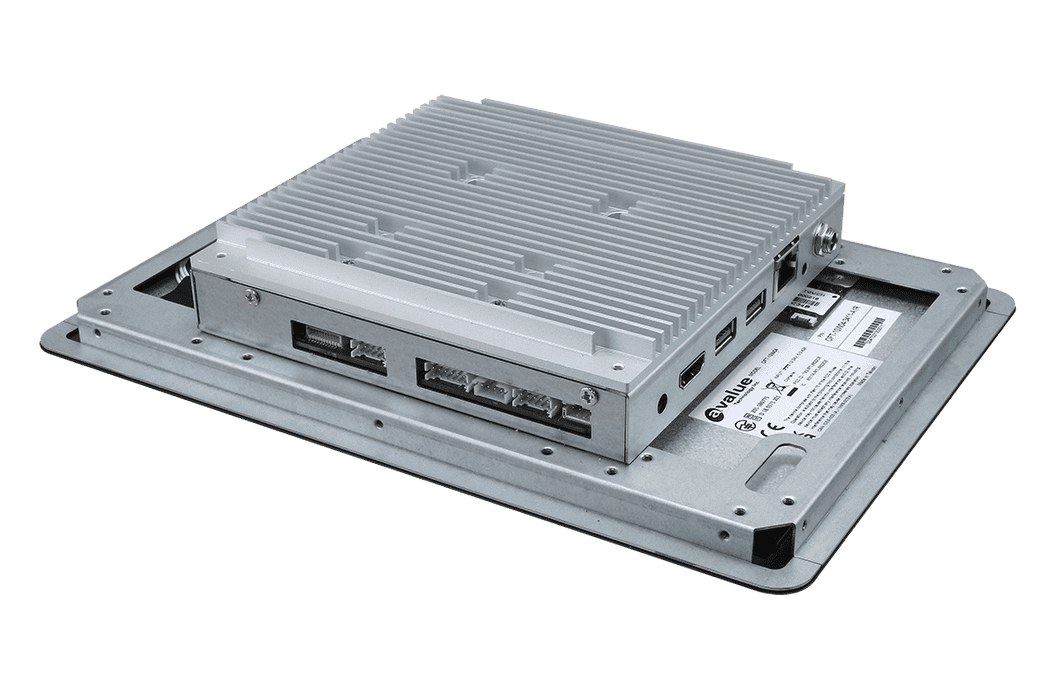

OFT-10W04

10.1 Open Frame Tablet

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • Intel® Celeron™ Processor J3455
  • 4GB LPDDR3
  • 32GB eMMC
  • -20°C ~ 60°C (-4°F ~ 140°F)
  • CE, FCC Class A
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Celeron® Processor J3455

  • System Memory

    4GB LPDDR3 SO-DIMM

Storage

  • Storage

    32GB eMMC

Display

  • Multiple Display

    MIPI + HDMI

Power Requirement

  • DC Input

    DC 12~24V

Software Support

  • OS

    2019 Windows 10 (64 bit) IoT LTSC, Ubuntu 20.04

Certification

  • Certification Information

    CE, FCC Class A

Panel

  • LCD Size

    10.1"

  • LCD Panel

    TFT LCD

  • Display Type

    WXGA

  • Resolution

    800 x 1280

  • Pixel pitch

    0.1692 X 0.1692 mm

  • Luminance

    350 cd/m²

  • Contrast ratio

    1000

  • Viewing angle

    80 (U), 80 (D), 80 (L), 80 ( R)

  • Response time

    25 ms

  • Backlight

    LED

  • Touch Type

    PCAP

  • Touch Light Transmission

    86%

External I/O

  • External I/O Connector

    1 x DC Jack
    1 x HDMI
    1 x Headphone Jack
    1 x Power Button
    1 x RJ45
    1 x USB 2.0 Type A
    1 x USB 3.0 Type A

Internal I/O

  • Internal I/O Connector

    1 x A-MIC
    1 x DMIC
    1 x JGPIO1
    1 x JLVDS1
    1 x JSEN1
    1 x JTP1
    1 x M.2 3042 B-Key or M.2 2242 B-key
    1 x Micro SD slot
    1 x Micro SIM Slot
    1 x Micro USB
    1 x RS232 (Tx/Rx/Rts/Cts) interface
    1 x RS232 (Tx/Rx/Rts/Cts) , RS485 (Tx/Rx/Rts/Cts)
    1 x RTC Battery
    1 x Speaker
    1 x Touch Button
    1 x USB Touch interface

Data Communication

  • WLAN

    WIFI 802.11 a/b/g/n/ac

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    -20°C ~ 60°C (-4°F ~ 140°F)

  • Operating Humidity

    40°C @ 95% Relative humidity, Non-condensing

  • Dimension (W x L x H)

    254 x 178 x 41.6mm

  • Weight

    1.3 kg

  • Power Requirement

    DC 12~24V

Ordering Information

  • Ordering Information

    OFT-10W04-3410-A1R : OFT-10W04-4G_32G--Ubuntu 20.04
    OFT-10W04-3411-A1R : OFT-10W04-4G_32G-Win10
    OFT-10W04-3412-A1R : OFT-10W04-4G_32G-Non OS

  • BIOS
    1
  • Chipset
    1
  • Audio
    1
  • Graphics
    1
  • LAN
    1
  • Manual
    1
  • Other Driver
    6
  • All
  • Windows 10 64bit
  • BIOS

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    OFT-10W04(FR1AA) BIOS V100 CS:73E4H,P/N:E1514T10400R
    • N/A

    Chipset

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    chipset-10.1.17861.8101-public-mup
    • Windows 10 64bit

    Audio

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    8943_FF00_PG475_Win10_RS3_RS4_RS5_19H1_20H1_Win7_Win8_Win8.1_WHQL
    • Windows 10 64bit

    Graphics

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    igfx_win10_100.8935
    • Windows 10 64bit

    LAN

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Install_Win10_10038_02202020(SId1152921504628325429)
    • Windows 10 64bit

    Manual

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    OFT-10W04 3rd Quick Reference Guide
    • N/A

    Other Driver

    Total 6 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    ntel(R)_HIDEventFilterDriver-2.2.1.375_RS5Certified
    • Windows 10 64bit
    2023-11-01
    apollo lake-i intel(r) txe 3.1.75.2351_ipu_2020.1-lite
    • Windows 10 64bit
    2023-11-01
    serialio_30.100.1631.03_apl_pv_rs1-lite
    • Windows 10 64bit
    2023-11-01
    DIO TCA955
    • Windows 10 64bit
    2023-11-01
    RTBlueR_Windows10_FilterDriver_1015_0307.2019_new_L
    • Windows 10 64bit
    2023-11-01
    RTLWlanE_WindowsDriver_2024.0.8.105_Drv_3.00.0031_Win10.L
    • Windows 10 64bit
