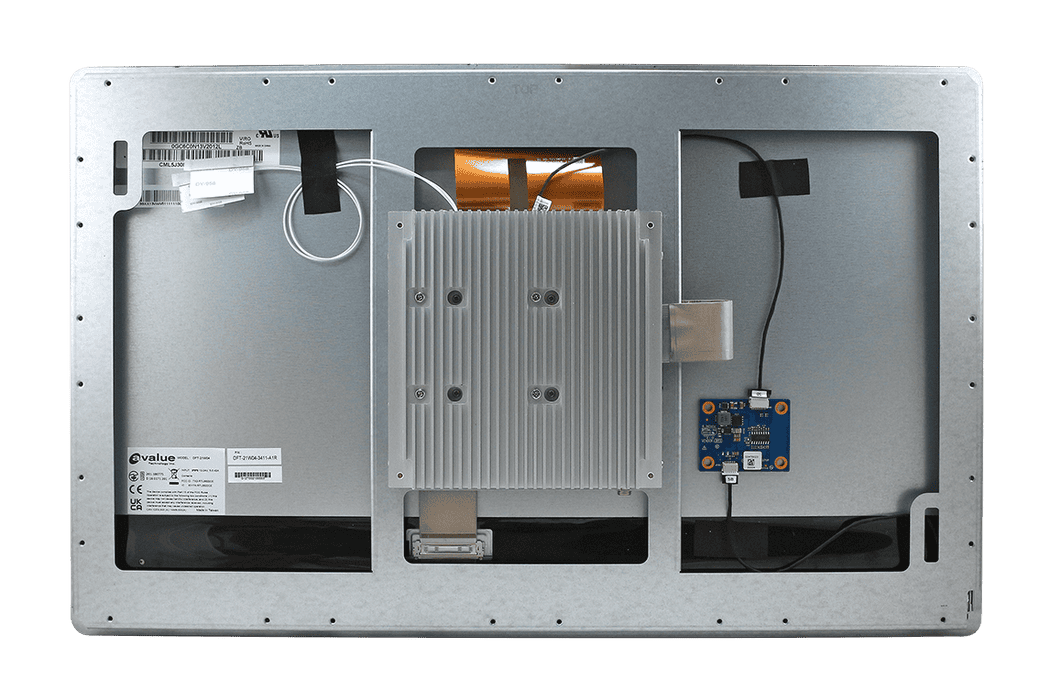

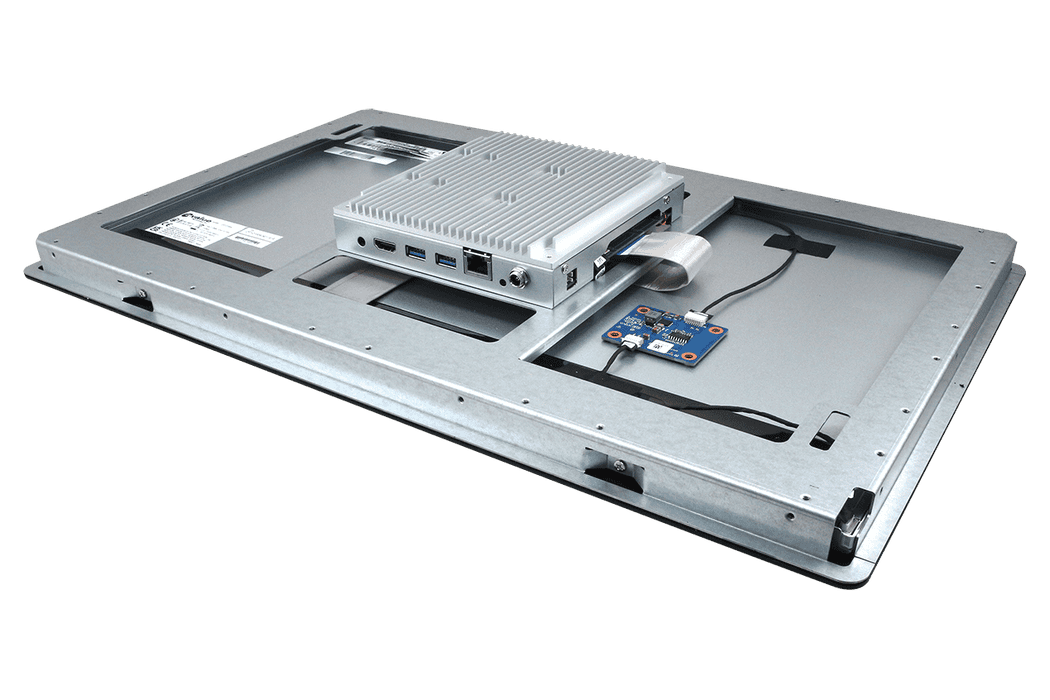

OFT-21W04

21.5 Open Frame Tablet

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • 1 x 204 pin SO-DIMM DDR3L 4GB
  • 1 x 204 pin SO-DIMM DDR3L 4GB
  • 32GB eMMC / M.2 3042 SSD
  • 0°C ~ 40°C
  • CE, FCC Class A
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Celeron® Processor J3455

  • System Memory

    1 x 204 pin SO-DIMM DDR3L 4GB

  • I/O Chipset

    Intel Celeron J3455 1.5GHz

Storage

  • Storage

    32GB eMMC / M.2 3042 SSD

Display

  • Multiple Display

    LVDS + HDMI

Power Requirement

  • DC Input

    DC 12~24V

Software Support

  • OS

    2019 Windows 10 (64 bit) IoT LTSC, Ubuntu 20.04

Certification

  • Certification Information

    CE, FCC Class A

Panel

  • LCD Size

    21.5"

  • LCD Panel

    TFT LCD

  • Display Type

    Full HD

  • Resolution

    1920 x 1080

  • Pixel pitch

    0.24795 x 0.24795 mm

  • Luminance

    250 cd/m²

  • Contrast ratio

    3000

  • Viewing angle

    89 (U), 89 (D), 89 (L), 89 (R)

  • Response time

    30 ms

  • Backlight

    LED

  • Touch Type

    PCAP

  • Touch Light Transmission

    85%

External I/O

  • External I/O Connector

    1 x 10/100/1000 RJ45 Powered LAN
    1 x DC Jack
    1 x Headphone Jack
    1 x HDMI 1.4 Out
    1 x Reset
    2 x USB 3.0 Type A

Internal I/O

  • Internal I/O Connector

    1 x A-MIC
    1 x DC Input
    1 x DIO
    1 x M.2 3042 B-Key or M.2 2242 B-key
    1 x Micro USB
    1 x MIPI DSI
    1 x RS232 (Tx/Rx/Rts/Cts) interface
    1 x RS232 (Tx/Rx/Rts/Cts) , RS485 (Tx/Rx/Rts/Cts)
    1 x SD card slot
    1 x Speaker
    1 x Touch Button

Data Communication

  • WLAN

    WIFI 802.11 a/b/g/n/ac

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    -20°C ~ 60°C (-4°F ~ 140°F)

  • Operating Humidity

    40°C @ 95% Relative humidity, Non-condensing

  • Dimension (W x L x H)

    515 x 322 x 53.7mm

  • Weight

    4.3 kg

  • Power Requirement

    DC 12~24V

Ordering Information

  • Ordering Information

    OFT-21W04-3410-A1R : OFT-21W04-4G_32G-Ubuntu 20.04
    OFT-21W04-3411-A1R : OFT-21W04-4G_32G-Win10
    OFT-21W04-3412-A1R : OFT-21W04-4G_32G-Non OS
