NEW

SID-21WR5

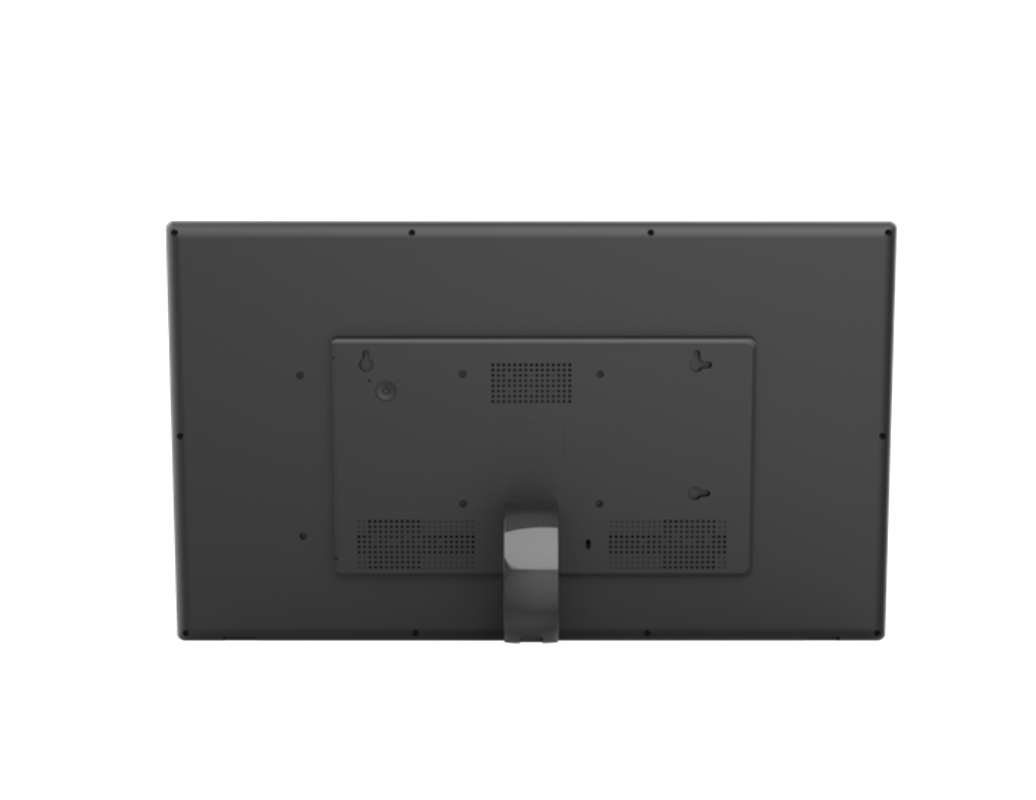

21.5" Panel PC with Rockchip RK3588

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

21.5" 1920 x 1080 Panel PC with PCAP touch
Rockchip RK3588 Quad-core Cortex-A76 + Quad-core Cortex-A55
4GB RAM / 32GB eMMC
Fanless operation from 0°C ~ 40°C
Support Android 12

Specification
FAQ

ProductSpecification

System Information

Processor

Rockchip RK3588 Quad-core Cortex-A76 + Quad-core Cortex-A55
System Memory

Onboard 4GB RAM

Storage

Storage

Onboard 32GB eMMC

Display

Graphic Chipset

Mali-G610 MC4 support OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.2/1.2, OpenCL 1.1/1.2/2.0

Audio

Audio Interface

SSingle Microphone
Speaker Output

2 x 3W

Ethernet

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V
DC Input Connector

DC Jack
Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 36W (12V@3A) AC-DC adapter

Software Support

OS

Android 12

Panel

LCD Size

21.5"
LCD Panel

IPS
Resolution

1920 x 1080
Luminance

250 cd/m2
Contrast ratio

800
Viewing angle

85 (U), 85 (D), 85 (L), 85 (R)
Touch Type

Projective capacitive multi-touch up to 10 points

External I/O

USB Port

1 x USB 3.0
2 x USB 2.0
1 x USB Type-C (USB 3.2 Gen 1, Data, OTG/ADB & DP Alt Mode)
Audio Port

1 x 3.5mm Earphone/Mic Combo Jack
LAN Port

1 x RJ45
HDMI

1 x HDMI-in
DC input

1 x DC Jack
Other

1 x SD Card Slot (Supports up to 64GB)

System Control

Control Buttons

Power/Vol+/Vol- Button

Data Collection

Camera

1 x 5.0MP Camera

Wireless Communication

WLAN

Wi-Fi 802.11b/g/n/a/ac/ax
Bluetooth

BT 5.2

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity

20~80%RH
Dimension (W x L x H)

538 x 331 x 39.5mm
Weight

3.5kg
VESA

100 x 100mm
Power Requirement

DC 12V
Power Mode

AT/ATX (AT is default)
System Fan

Fanless
Construction

Plastic ABS

Packing List

Packing List

1 x SID-21WR5
1 x AC/DC 36W Adapter 12V/3A
1 x Power Cord
1 x USB Cable (Type-A to Type-C)
1 x I/O Cover
1 x Ring Stand
1 x Screw Pack
