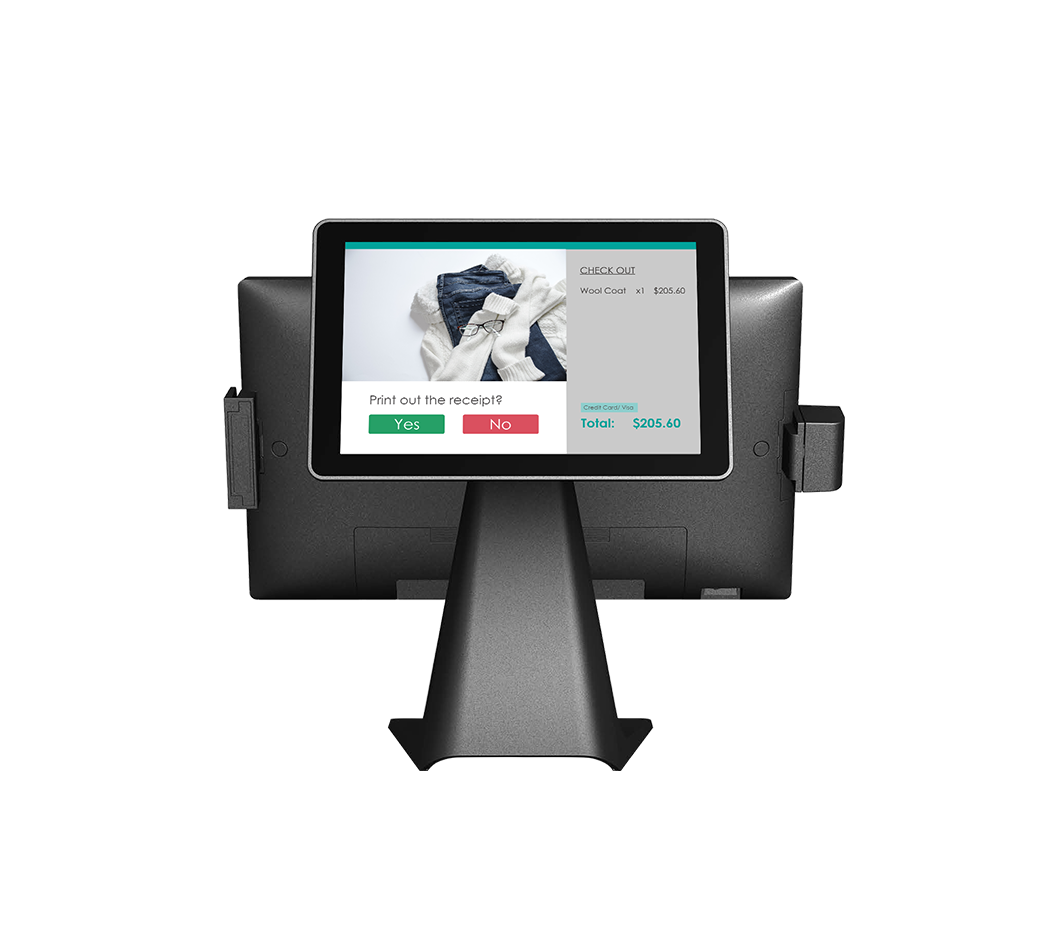

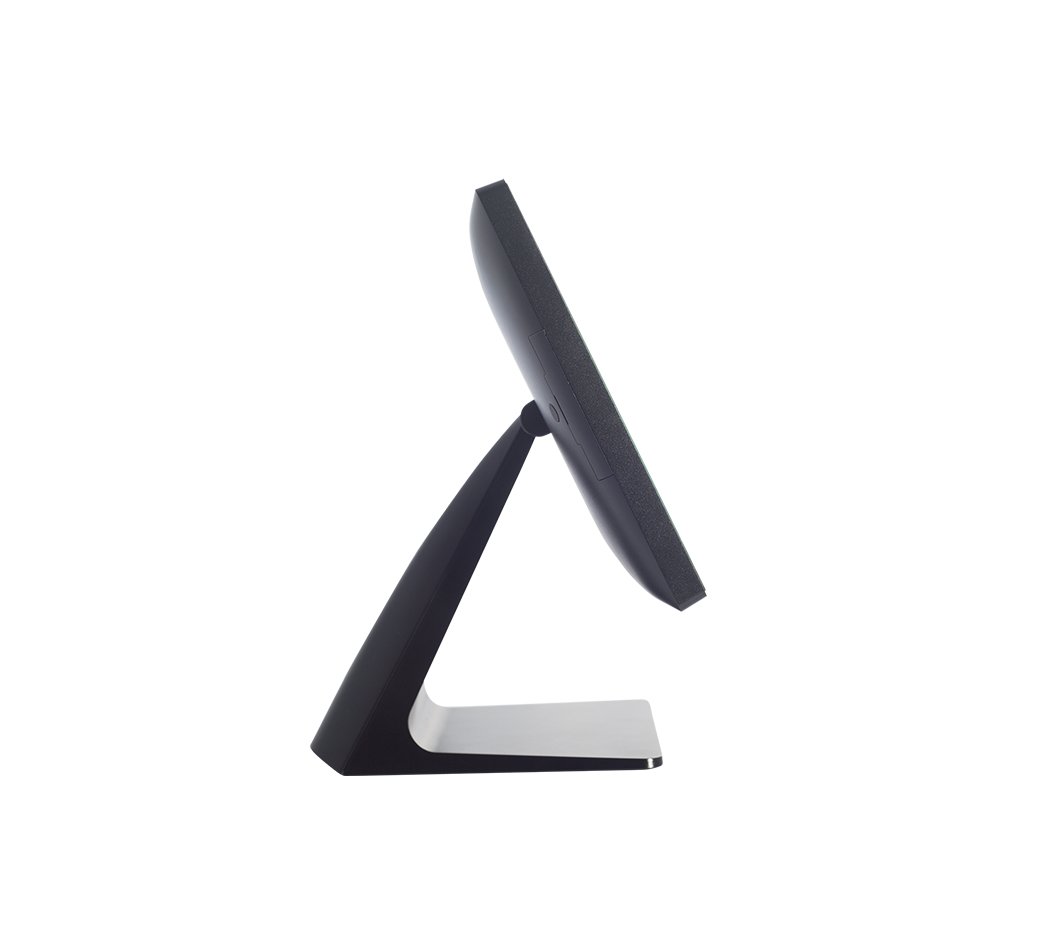

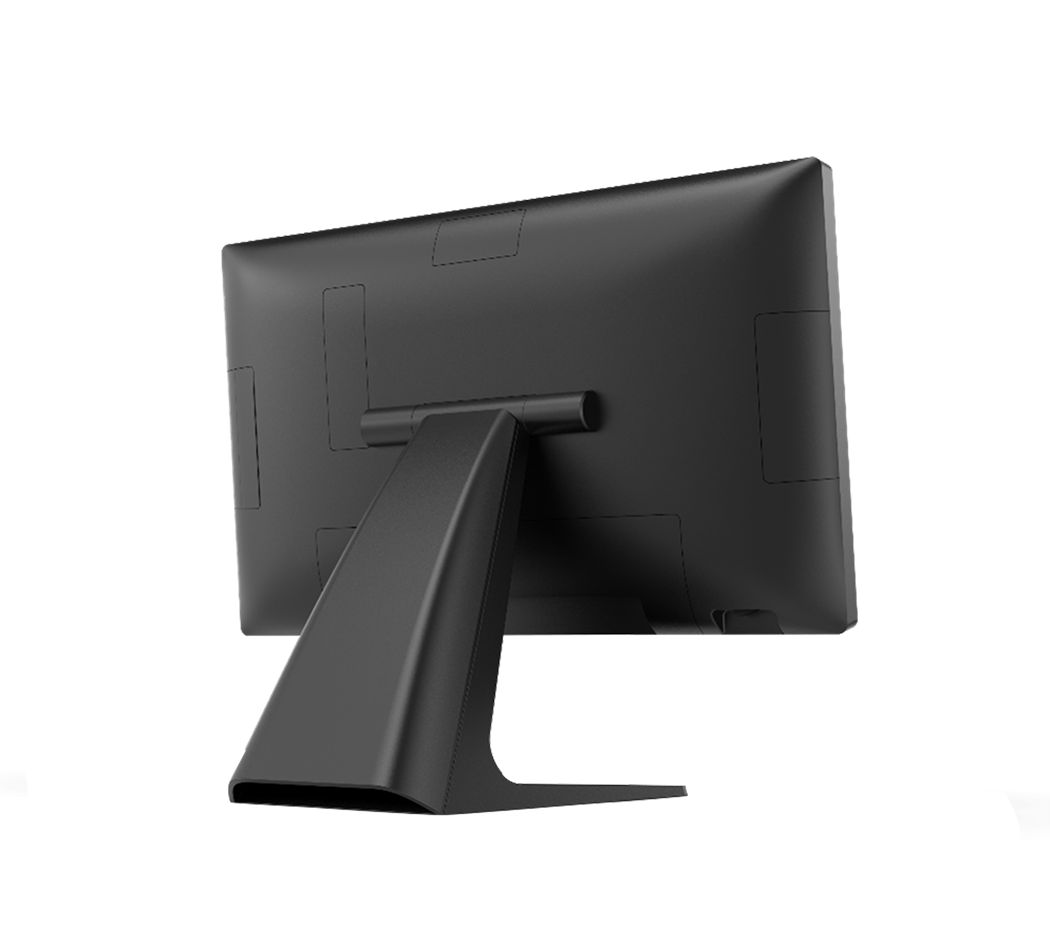

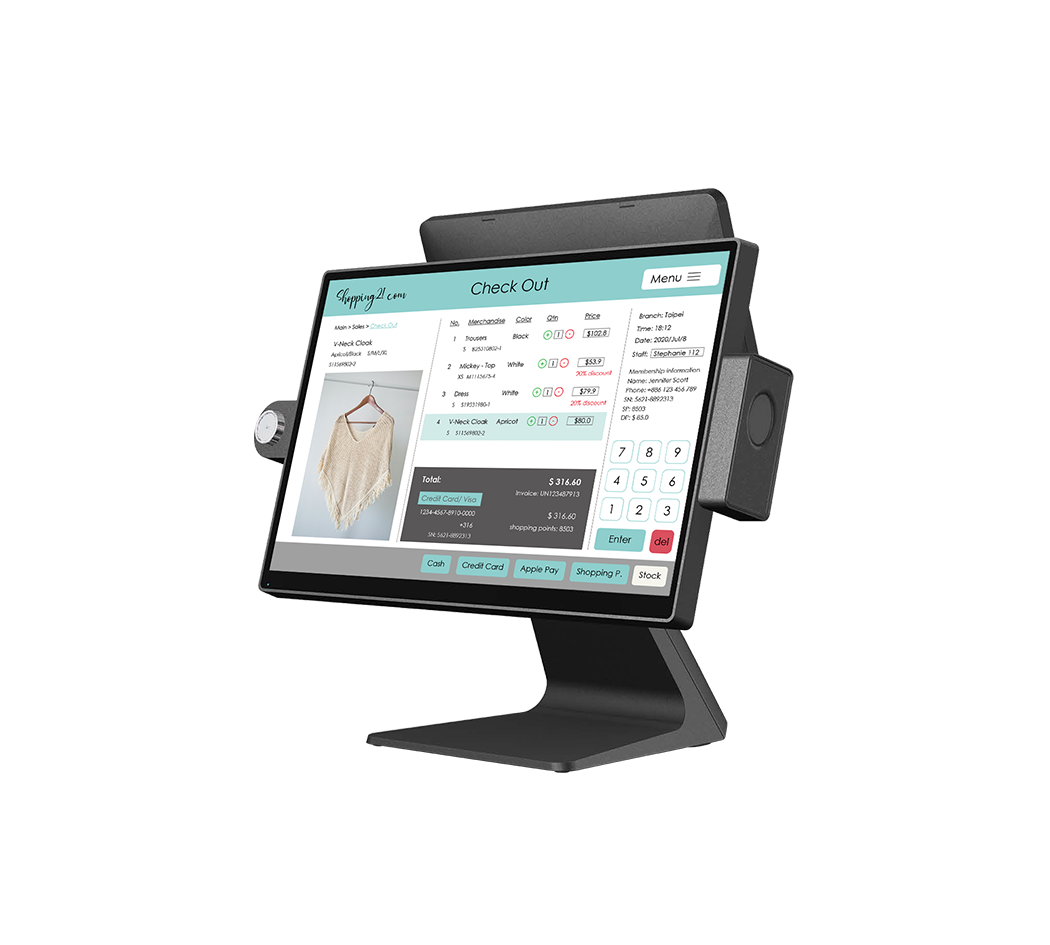

PT58

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • 12th Generation Intel® Core™ i3/i5 Processors
  • Aluminum die-casting structure for strong & stable operation
  • Easy access/service M.2 SSD cover
  • Rubber gasket frame sealing bezel design for IP-65 resistance
  • Comprehensive dual-side mounting support of peripherals

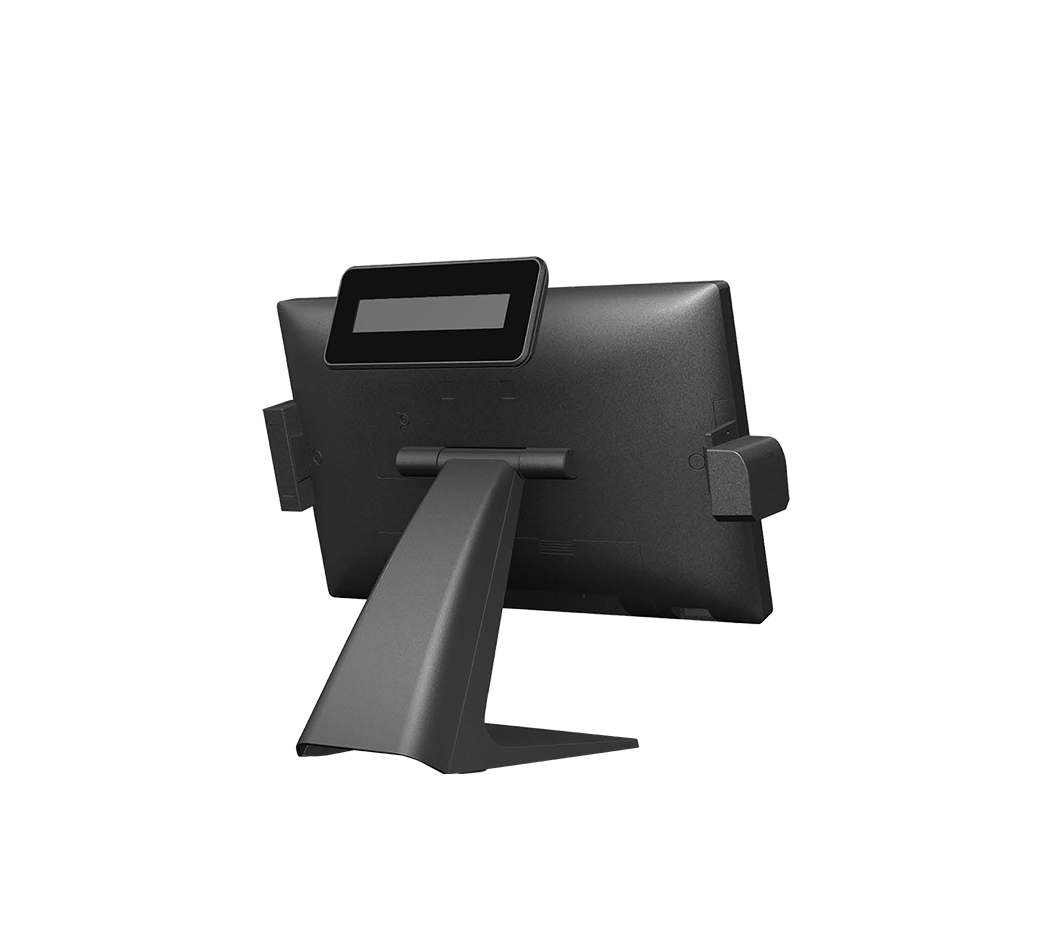

  • Support 10.1" 2nd display & 2x20 LCM
  • Innovative heat-dissipation fan-less operation design
  • 4.8mm super slim edge bezel
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Celeron® Processor J6412
    12th Generation Intel® Core™ i3-1215U
    12th Generation Intel® Core™ i5-1235U

Expansion

  • Expansion

    1 x M.2 slot for storage

Storage

  • Storage

    M.2 2242 SATA 128GB

Display

  • Graphic Chipset

    Intel® UHD Graphics for 10th Gen Intel® Processors (J6412)
    Intel® UHD Graphics for 12th Gen Intel® Processors (Core-i)

Audio

  • Audio Codec

    Realtek ALC887

Ethernet

  • LAN Chipset

    1 x RJ45 with realtek RTL8111H

Power Requirement

  • DC Input

    +19V

Software Support

  • OS

    Win 10 / Win 11

Certification

  • Certification Information

    CE/FCC/UKCA/VCCI

External I/O

  • USB

    3 x USB 3.1
    3 x USB 2.0

Panel

  • LCD Size

    15.6"

  • Display Type

    Full HD

  • Resolution

    1920 x 1080

  • Luminance

    250 cd/m2

  • Backlight

    LED

  • Touch Type

    Projective capacitive

I/O

  • COM Port

    2 x COM ports by RJ48 connectors

  • Cash Drawer

    1 x RJ11 (24V/12V by jumper setting)

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Dimension (W x L x H)

    361.6 x 300.5 x 191.9 mm

  • IP Rating

    IP65 for front panel

  • Power Mode

    ATX

  • System Fan

    Fanless

  • Construction - Front

    Black

  • Construction - Rear

    Black

Packing List

  • Packing List

    1 x PT58
    1 x Power adapter

Ordering Information

  • Ordering Information

    PT58-15P4-A1-01R
    15.6"/1920 x 1080/J6412/8GB/128GB/6USB/1USB Type C/1LAN

    PT58-15P4-A1-02R
    15.6"/1920 x 1080/J6412/8GB/128GB/6USB/1USB Type C/1LAN/Stand

    PT58-15P4-A1-03R
    15.6"/1920 x 1080/i3-1215U/8GB/128GB/6USB/1USB Type C/1LAN/Stand

    PT58-15P4-A1-04R
    15.6"/1920 x 1080/i5-1235U/8GB/128GB/6USB/1USB Type C/1LAN/Stand

    ACC-PT58-FP-01R
    Fingerprint

    ACC-PT58-NFC-01R
    RFID

    ACC-PT58-LCM-01R
    LCM (Character)

    ACC-PT58-IBN-01R
    iButton

    ACC-PT58-MSR-01R
    MSR

    ACC-PT58-2DP-01R
    10.1" 2nd display (W/O Touch)

    ACC-PT58-SCR-01R
    2D Barcode Scanner

    ACC-PT58-WM-01R
    PPC58 Wall Mount
