Avalue Technology - Industrial Computer

Processor

Intel® Celeron® Processor J3455

System Memory

4GB LPDDR4 (default) / 8GB LPDDR4 (optional)

Storage

Onboard 128GB eMMC

Solid State Drive

128GB eMMC

Graphic Chipset

Intel® HD Graphics 500

Audio Codec

ES8336

LAN Chipset

1 x RJ45 with realtek RTL8111H

DC Input

+24V

DC Input Connector

DC Jack

OS

Win 10

Certification Information

CE/FCC/UKCA/VCCI/CCC

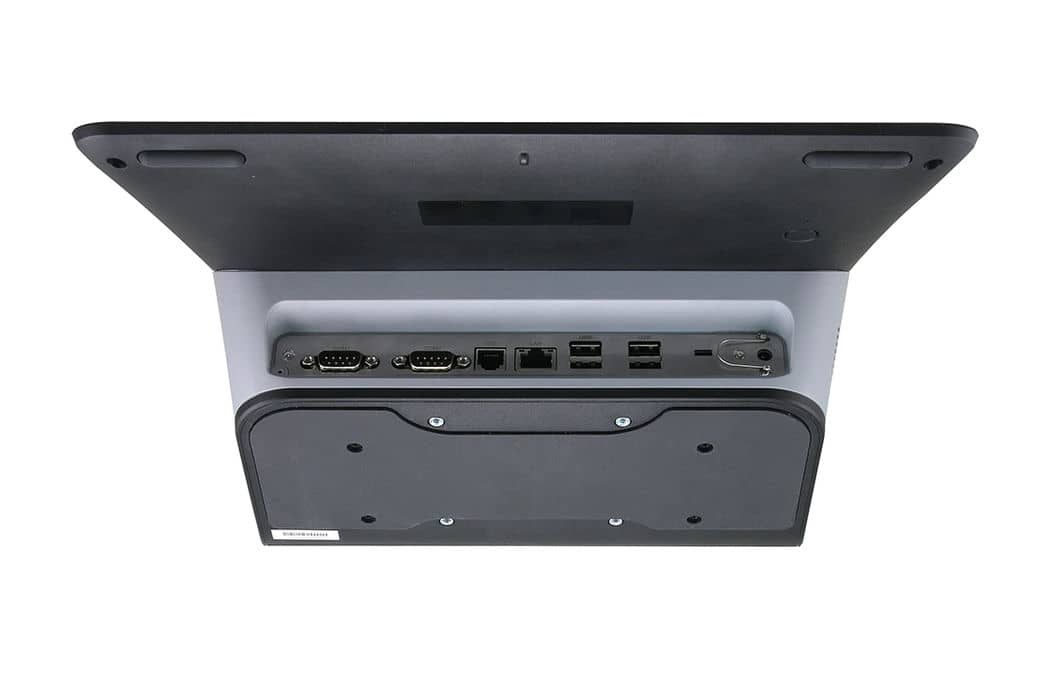

USB

4 x USB 3.0

LAN Port

1 x RJ45 10/100/1000

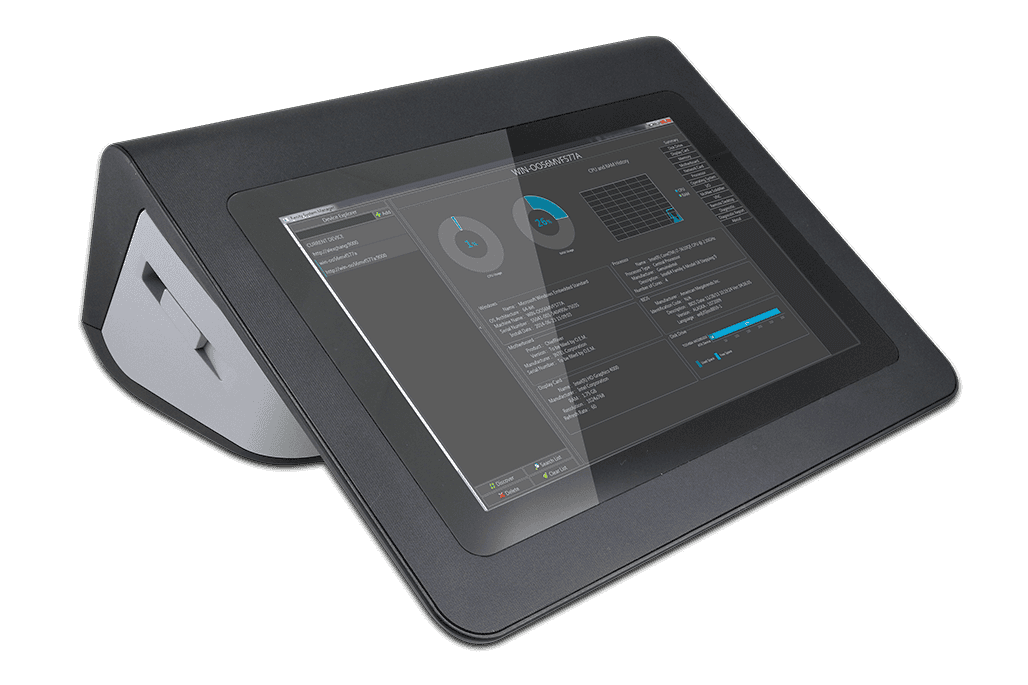

LCD Size

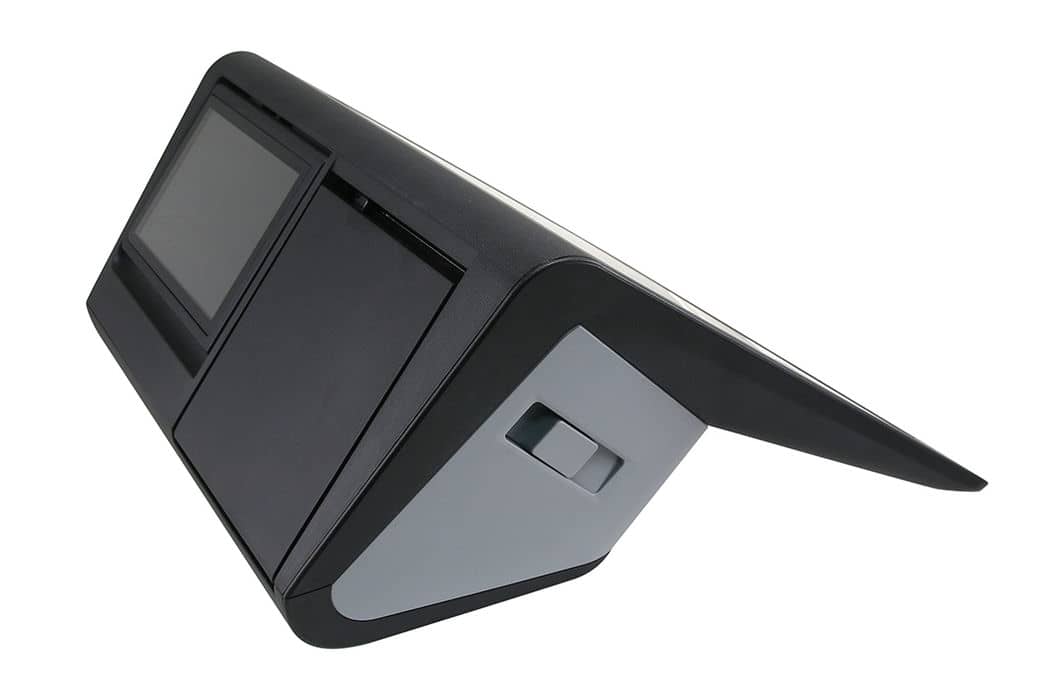

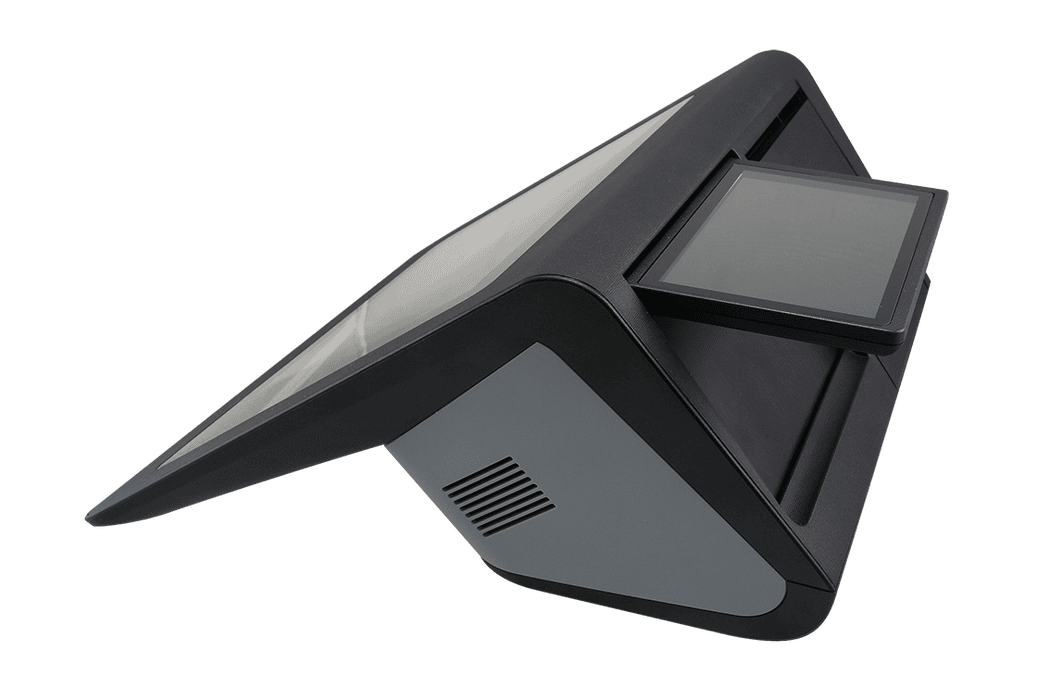

10.1" LCD, 5" LCD (customer side)

Resolution

1280 x 800 (10.1), 1280 x 720 (5)

Touch Type

10 Point projected capacitive touch

COM Port

2 x RS232 in DB9, powered with 5/12V

Cash Drawer

1 x RJ11 (24V)

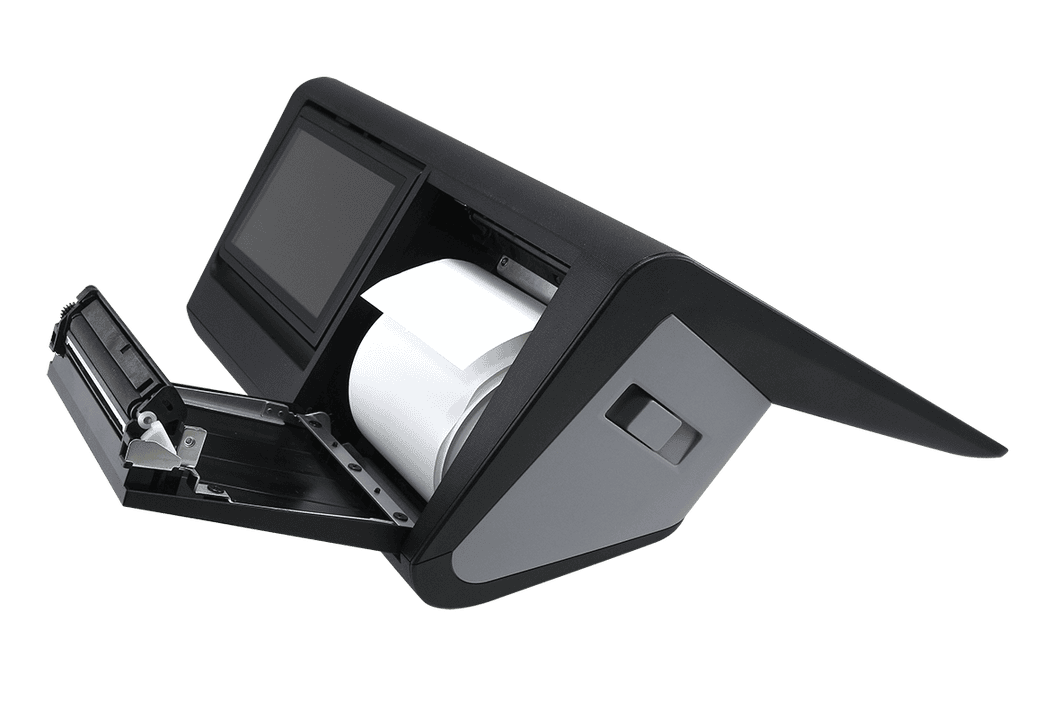

Printing Method

SEIKO thermal printer CAPD347D-E

Total Dots Per Line

576 Dots

Max. Print Speed

200mm/s

Max. Print Width

72mm

Max. Paper Width

80mm

Type of Paper Cutting

Full cut & partial cut

NFC

ISO/IEC 14443 A/B, 15693, mifare

WLAN

Built-In IEEE 802.11 a/b/g/n/AC

Bluetooth

Built-in bluetooth 4.0 + Class 1

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C~60°C

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

(L)299.1 x (W)273.2 x (H)128.8 mm

Weight

3 kg

Vibration Test

1.5 Grms, IEC 60068-2-64, random, 5~500Hz, 30min/axis

Shock Test

10 Grms, IEC60068-2-27, half sine, 11ms

Power Mode

ATX

System Fan

5200RPM fan

Construction - Front

Black/white

Construction - Rear

Black/white

Color

Black & gray / full white

Construction

Plastic

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 120W adapter (24V @5A)

Packing List

1 x RIPAC-10P3
1 x Power adapter

Ordering Information

RIPAC-10P3-A1-02R
10.1"/1280 x 800/J3455/4GB/128GB/2COM/4USB/1LAN/Black

RIPAC-10P3-A1-12R
10.1"/1280 x 800/J3455/4GB/128GB/2COM/4USB/1LAN/White
