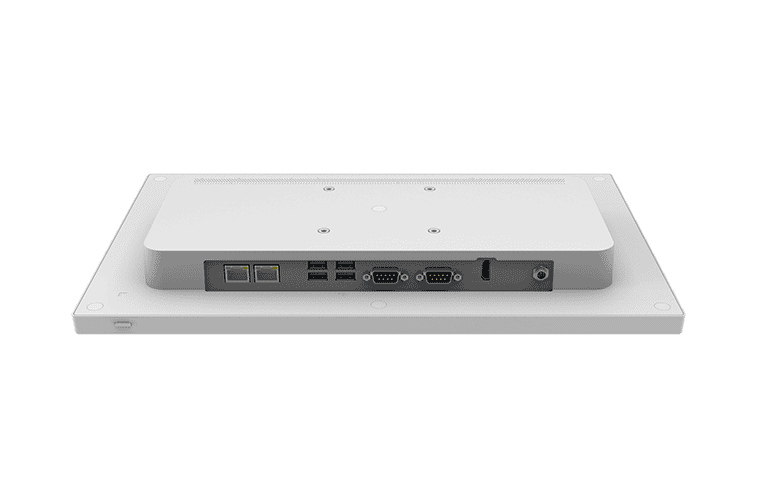

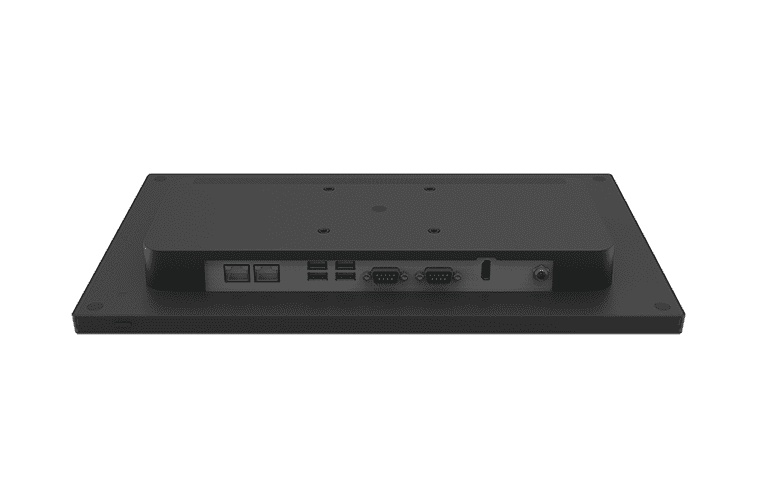

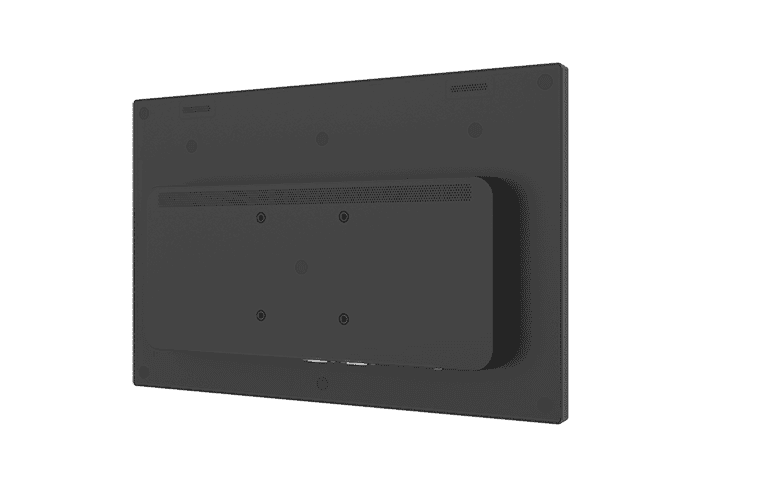

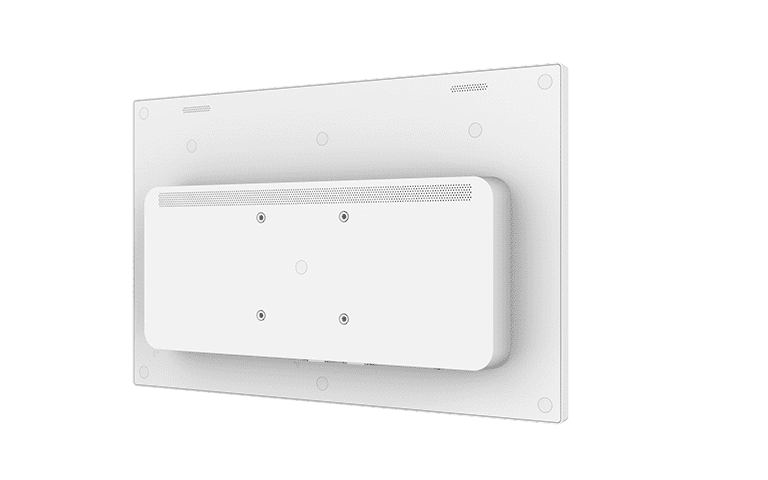

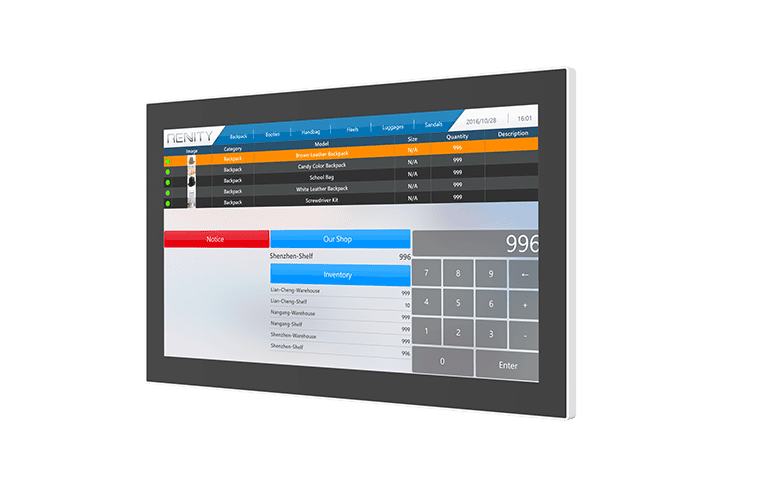

RiVar-1502

Avalue All-in-One POS Terminal

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • Intel® Celeron® Processor J3455
  • IP65 for panel, IP41 for back
  • 2 x Gigabit Ethernet
  • 1 x M.2 slot for WiFi/BT
  • 4 x USB 3.0, 2 x RS-232
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Celeron® Processor J3455

  • System Memory

    Onboard LPDDR4 4GB

  • I/O Chipset

    EC ITE8987E

  • TPM

    TPM 2.0

  • SBC

    Intel® Celeron® Apollo Lake Platform

Expansion

  • Expansion

    1 x M.2 E Key slot for .2.4/5G WiFi module

Storage

  • Storage

    Onboard 128GB eMMC 1 x 2.5 storage (option)

Display

  • Graphic Chipset

    Intel® HD Graphics 500

Audio

  • Audio Codec

    ES8336

  • Audio Interface

    2 x 2W

Ethernet

  • LAN Chipset

    2 x RJ45 with realtek RTL8111H

Power Requirement

  • DC Input

    +24V

  • DC Input Connector

    DC Jack

Software Support

  • OS

    Win 10 / Android 8.1

Certification

  • Certification Information

    CE/FCC/UKCA/VCCI : Class A

External I/O

  • USB Port

    4 x USB 3.0

Panel

  • LCD Size

    15.6"

  • Display Type

    Full HD

  • Resolution

    1920 x 1080

  • Pixel pitch

    0.179 x 0.179

  • Luminance

    300 cd/m2

  • Contrast ratio

    700

  • Viewing angle

    89 (U), 89 (D), 89 (L), 89 (R)

  • Response time

    14ms

  • Backlight

    LED

  • Touch Type

    Projective capacitive

  • Touch Light Transmission

    85%

  • Touch Controller

    USB interface

I/O

  • COM Port

    2 x COM ports

Wireless Communication

  • WLAN

    Built-In IEEE 802.11 a/b/g/n/AC

  • Bluetooth

    Built-in bluetooth 4.0 + Class 1

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    -20°C ~ 60°C (-4°F ~ 140°F)

  • Dimension (W x L x H)

    390 x 247 x 42mm

  • Weight

    2.5 Kg

  • Vibration Test

    1.5 Grms, IEC 60068-2-64, random, 5~500Hz, 30min/axis

  • Shock Test

    10 Grms, IEC60068-2-27, half sine, 11ms

  • IP Rating

    IP65 for front panel, IP41 for rear

  • Power Mode

    ATX

  • System Fan

    Fanless

  • Construction - Front

    Black/white

  • Construction - Rear

    Black/white

  • Construction

    Plastic

Component

  • Adapter

    Input: 100 ~ 240Vac/ 50 ~ 60Hz
    Output: 60W adapter (24V @2.5A)

Ordering Information

  • Ordering Information

    RIVAR-1502-B1000R
    15.6" 1920 x 1080 PCAP with Intel Celeron J3455/4G RAM/128G EMMC/Wifi/BT/4 USB/2 COM/2 RJ45/HDMI/60W power adapter/Windows 10 IoT/Black

    RIVAR-1502-B1001R
    15.6" 1920 x 1080 PCAP with Intel Celeron J3455/4G RAM/128G EMMC/Wifi/BT/4 USB/2 COM/2 RJ45/HDMI/60W power adapter/Windows 10 IoT/White

    RIVAR-1502-B1002R
    15.6" 1920 x 1080 PCAP with Intel Celeron J3455/4G RAM/128G EMMC/Wifi/BT/4 USB/2 COM/2 RJ45/HDMI/60W power adapter/Black

    EU Power Cord E1702031000R
    US Power Cord E1702031833R
    JP Power Cord E1702031834R
    UK Power Cord E170P060380R

  • BIOS
    1
  • Design Document
    1
  • Manual
    1
  • All
  • BIOS

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    RIVAR-1502 BIOS 1.00 CS:0DD2H,P/N:E1512R52000R

    Design Document

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2024-01-29
    RIVAR-1502 system drawing
    -

    Manual

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    RIVAR-1502 1st Quick Reference Guide
